ACTpro MIFARE Readers Installation Manual

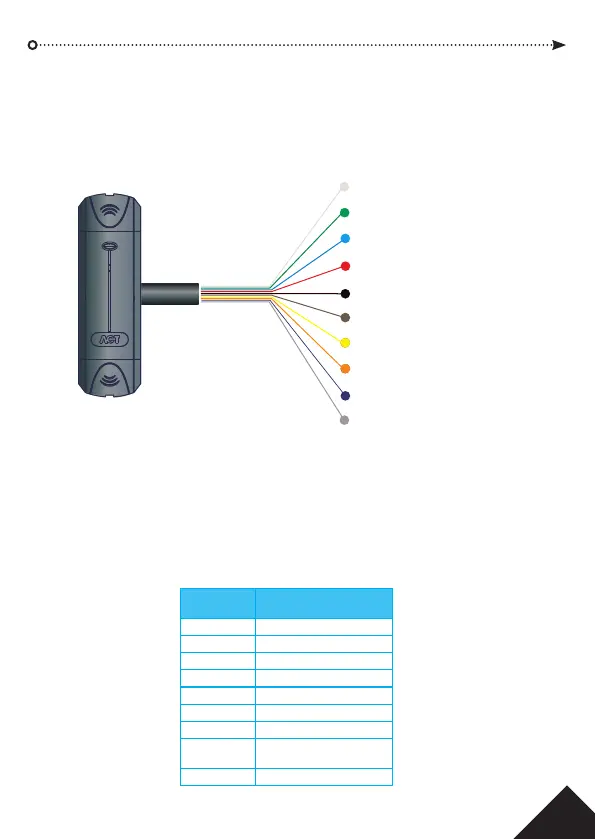

Reader Connections - ACTpro MIFARE 1030e

ACTpro MIFARE 1030e is supplied with 3m pigtail cable.

CAT 5/6 Colour Code

The following is suggested colour coding if using CAT5 or CAT6 cabling.

Reader

Output

Colour

Sense White/Green

Clock / D1 Green

Data / D0 Blue

+12V Orange

(0V) GND White/Orange

Red LED Brown

Green LED White/Brown

Orange &

Purple

Programming Sector/

Serial

ISP Grey (Unused)

CLOCK/D1 (Green)

SENSE (White)

DATA/D0 (Blue)

+12V (Red)

0V/GND (Black)

RED LED (Brown)

GREEN LED (Yellow)

(Orange)

(Purple)

ISP (Grey) - Unused

}

Programming

Sector/Serial
