Hardware Manual
8

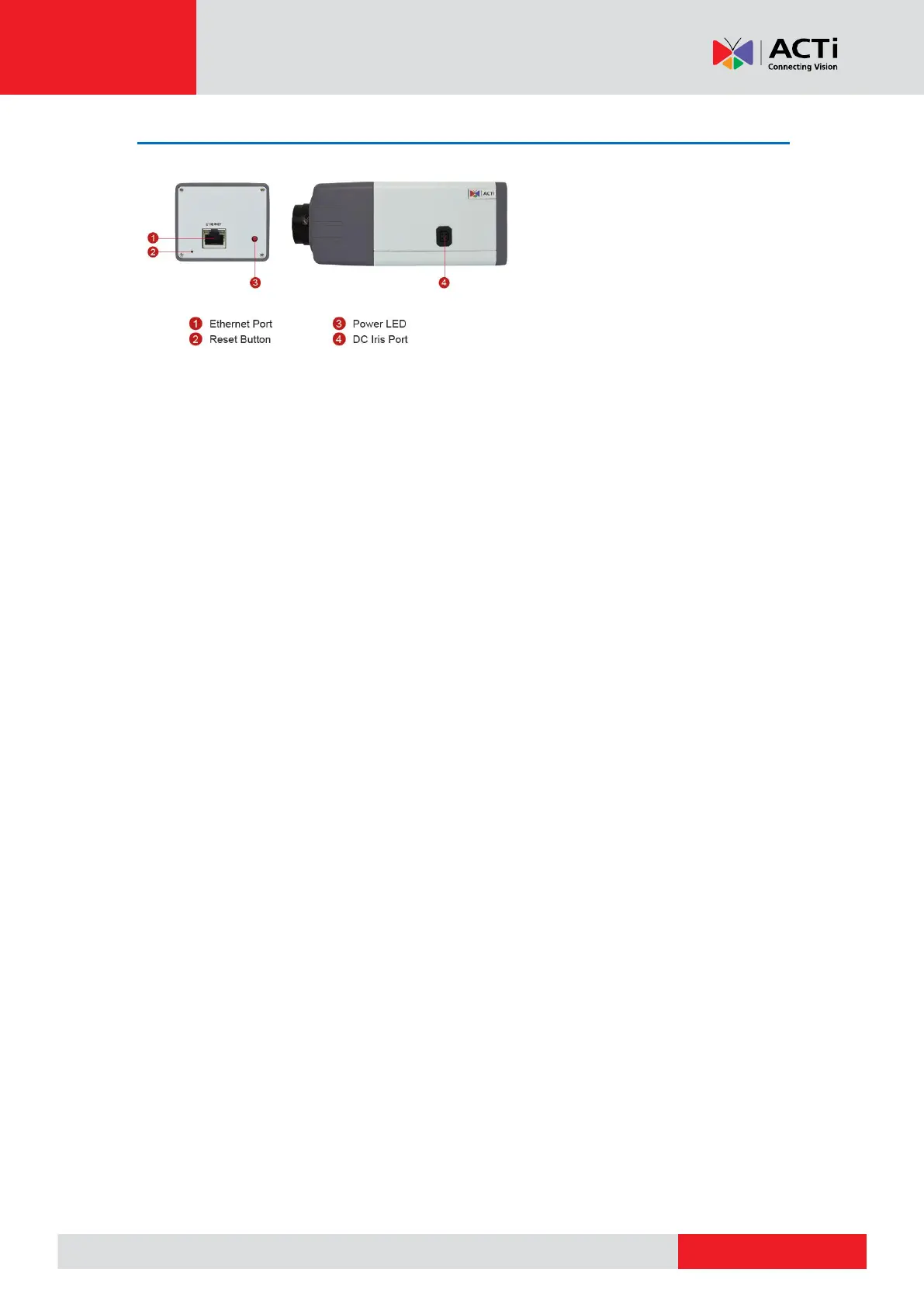

Physical Description
1) Ethernet Port
The IP device connects to the Ethernet via a standard RJ45 connector.
2) Reset Button
The purpose of reset button is to restore the factory default settings of the camera, including
administrator’s password.
The reset button can be used for following purposes:
1. The administrator’s password has been forgotten and therefore the camera cannot be
accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to
modify these settings.
3. In case of connectivity issues or abnormal video quality.
How to do the reset properly?
Step 1: Disconnect the power supply (e.g. disconnect the Ethernet cable with PoE).
Step 2: Press and continue to hold the Reset Button (using a pin).
Step 3: Connect the power supply while keeping the Reset Button pressed.
Step 4: Wait for 45 seconds and release the Reset Button.
3) Power LED
When the Power LED is on, the camera is successfully powered on by PoE and the system is
running. It is possible to disable Power LED by URL command if necessary.
4) DC Iris Port
When the DC iris lens is used, the cable of the lens has to be connected to this port.
