31- Transport the brushcutter motor still with cover the
disco fitted
32- To avoid the risk of injury, stop the engine and blade
before removing material wrapped around the head or blade.
33- Always use a sharp blade, a dull blade is more likely
to snag and thrust. Replace a dull blade. DO NOT attempt
to sharpen.
34- Always stop engine and examine the blade after
striking any hard object.
35- In order to maintain performance and safety,be sure
to use original spare parts and accessories approved by
the manufacture.
36- When saw blade is used, fit the specific blad e guard.

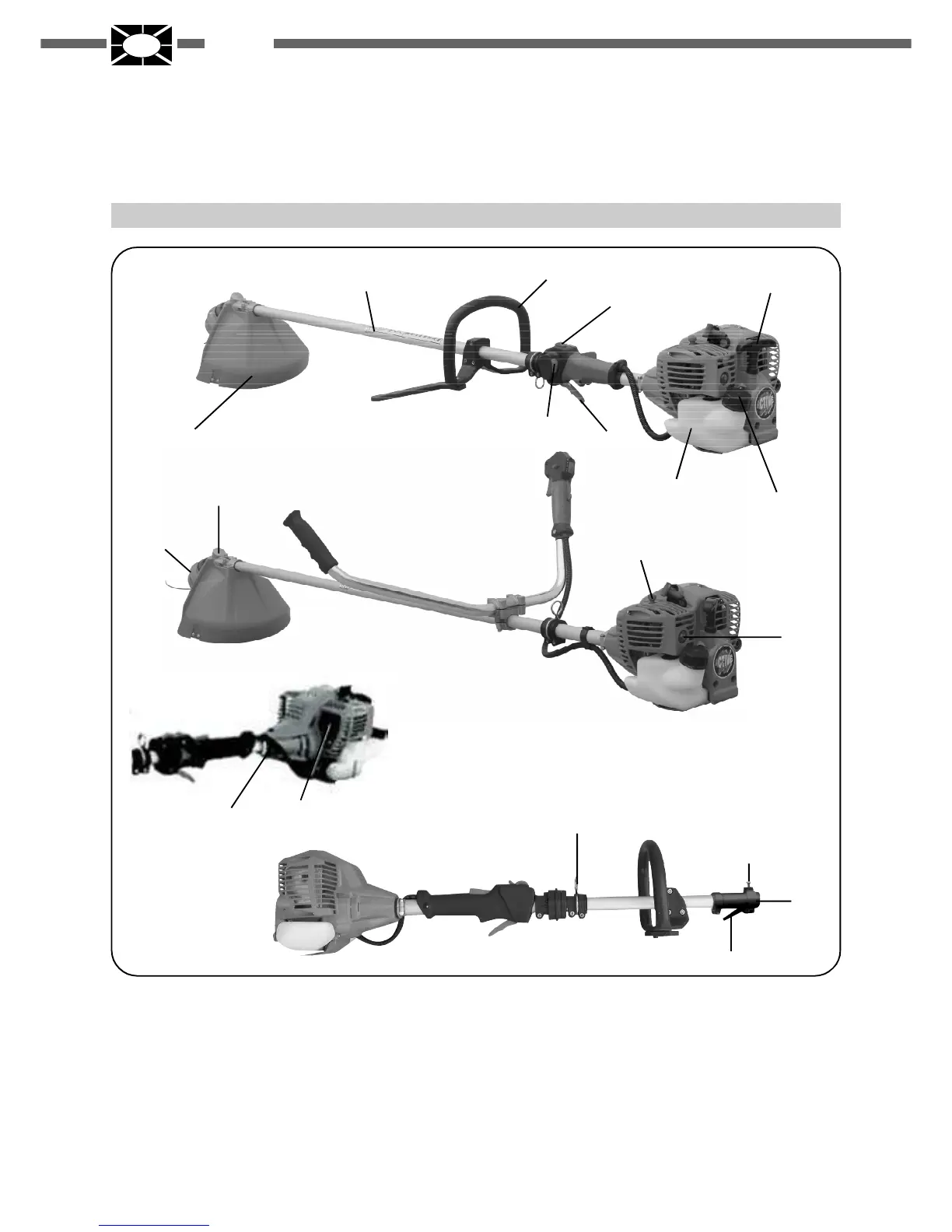

3. DESCRIPTION
1
2
6
3
8
7
10
12
4
9
5
13
14
15
16
17
19
18
11
>
Starter grip.
?
Air filter.
A9
Handle.
AA
Harness hanger
A8
Transmission tube.
A@
Clutch housing
(Antivibration system)
A
Ignition switch (stop).
8
Throttle trigger.
@
Throttle advance.
$
Automatic choke.
G
Primer (fuel air purge).
:
Fuel cap.
#
Fuel tank.
A$
Blade safety guard.
AG
Gear Head.
A:
Nylon head.
A#
Pin
A>
Sleeve
A?
Lever
