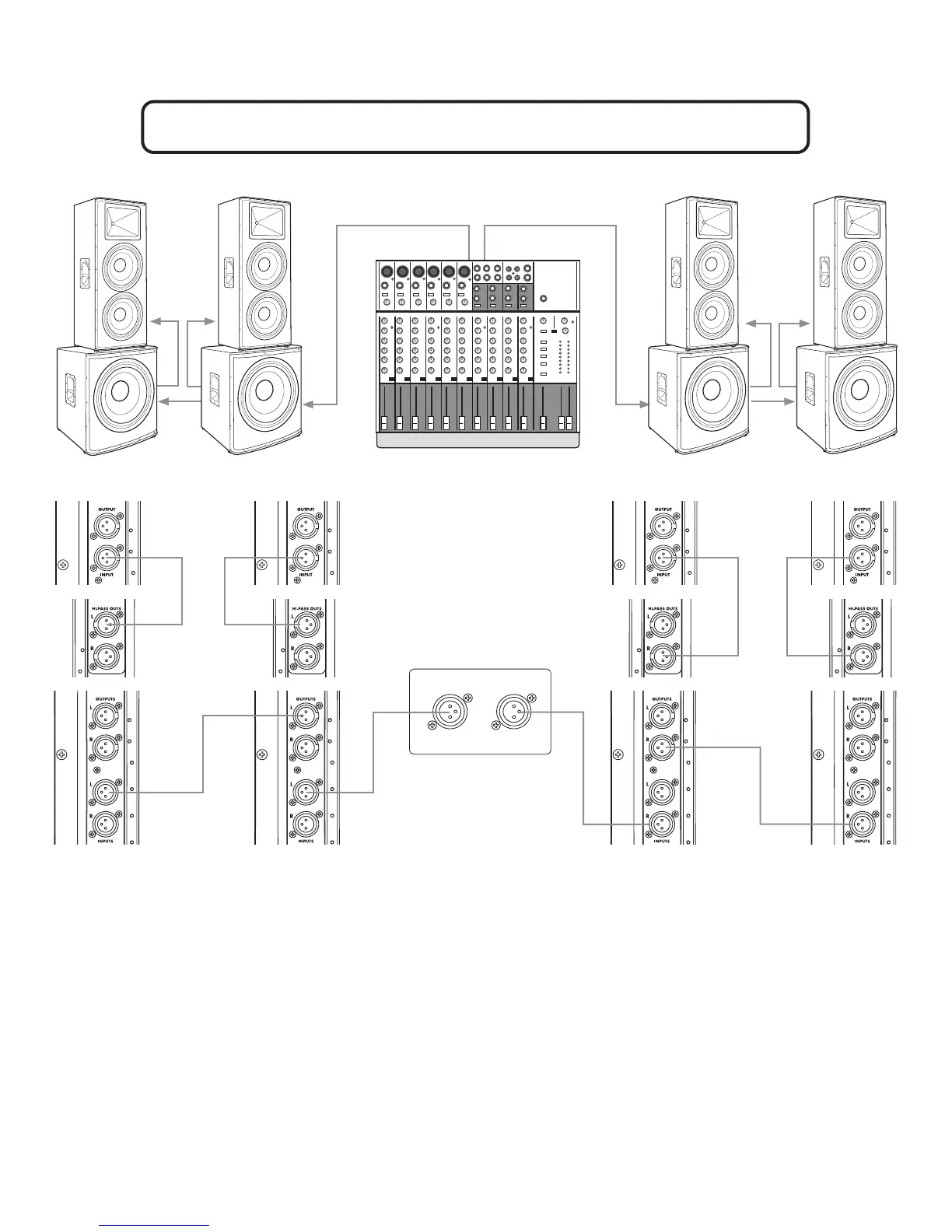

Linking Multiple ACTPRO HD Subwoofers and Main Speakers
MAIN OUTPUT
L R
Checklist
• Make certain loudspeakers are Powered OFF and Levels
turned down.
• Connect the Mixer’s Main Left Output to the Left Input of the Left
subwoofer 1.
• Connect the Output L of Left Subwoofer1 to the L Input of Left
subwoofer 2.
• Connect the HP Output L of Left Subwoofer1 to the Input of Left
Main Speaker 1.
• Connect the HP Output of Left Subwoofer2 to the Input of Left
Main Speaker 2.
• Connect the Mixer’s Right Output to the R Input of the Right
subwoofer 1.
• Connect the Output R of right Subwoofer1 to the R Input of
Right subwoofer 2.
• Connect the HP Output R of Right Subwoofer1 to the Input of
Right Main Speaker 1.
• Connect the HP Output of Right Subwoofer2 to the Input of
Right Main Speaker 2.
• Set the Low Cut switch on the Main Speakers to OFF.
• Set Subwoofer BBE to ON.
• Set Main Speaker BBE to OFF.
• Power ON Mixer, then Power ON Subwoofers, then Power ON
all speakers.
• Bring the Mixer’s volume up to normal operating level.
• Adjust the Level controls on the ACTPRO-HD series loudspeakers.
• Do not adjust the Level so high that the Red LIMIT LED is
constantly lit.
