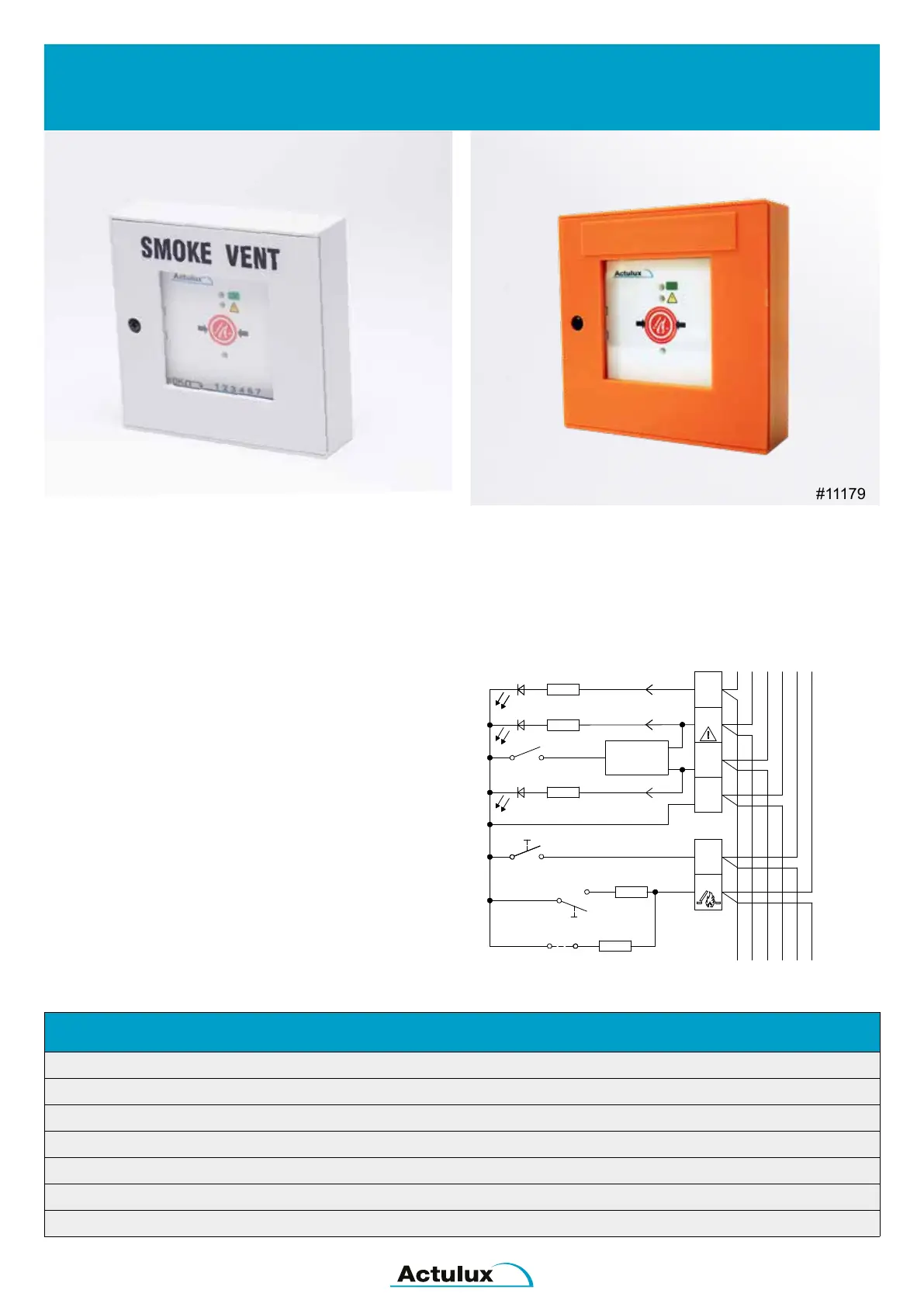

Fire Switch BVT for Smoke Ventilation Systems, IP40
for Actulux smoke ventilation systems
FEATURES
Function: Alarm (open), reset and off, sound indicator
LED indication: ’’ok”, “error” (yellow), “alarm activated’’ (red)
Size: 125 mm x 125 mm x 36 mm (W x H x D)
Colour: Grey (can be delivered in orange on request)
Protection degree: IP40
Consumption on error: 2.2 mA
Item no.: 111789 (GREY) / 111790 (ORANGE)
EASY INSTALLATION AND OPERATION
The re switch is developed to be used together with the
Actulux smoke ventilation system.
OPERATION INSTRUCTIONS
During re: Break the glass and activate the red button.
During test open the lid and activate the red button.
Closing and alarm reset: Open the lid - activate the black
reset button, alarm is reset and skylights are closed.
Connection diagram for BVT
Terminals:
1. green LED OK, lights when closing
2. Yellow LED, lights on error
3. red LED alarm, lights on emergency opening
4. ground (-)
5. -
6. re switch emergency closing (reset)
7. re switch emergency opening (re)
Jumper J1 must only be set in the last or only re switch
Denmark
111700 B
SIZE:
www.actulux.com
DWG NO.:
DRAWN BY: PSP
DATE: 07-02-17
TITLE:
SCALE:
DK 9560 Hadsund
Haandvaerkervej 2
REV:
A4 1 OF 2
2:1
Diagram BVT fireswitch
SHEET:
Actulux A/S Phone int.: +45 98 57 40 90
Fax int.: +45 96 15 28 00
e-mail: info@actulux.com
111693 Fireswitch 111784
Reset
Alarm
2
4
10 KΩ
3
OK
24V
LED
LED
Reset
7
Buzzer
2,2 KΩ
GND
6
J1
Buzzer
24V
Jumper
Alarm
1
LED
24V
Rød/Red
Rot/Rouge
Gul/Yellow
Gelb/Jaune
Grøn/Green
Grün/Vert
#111789 #111790
