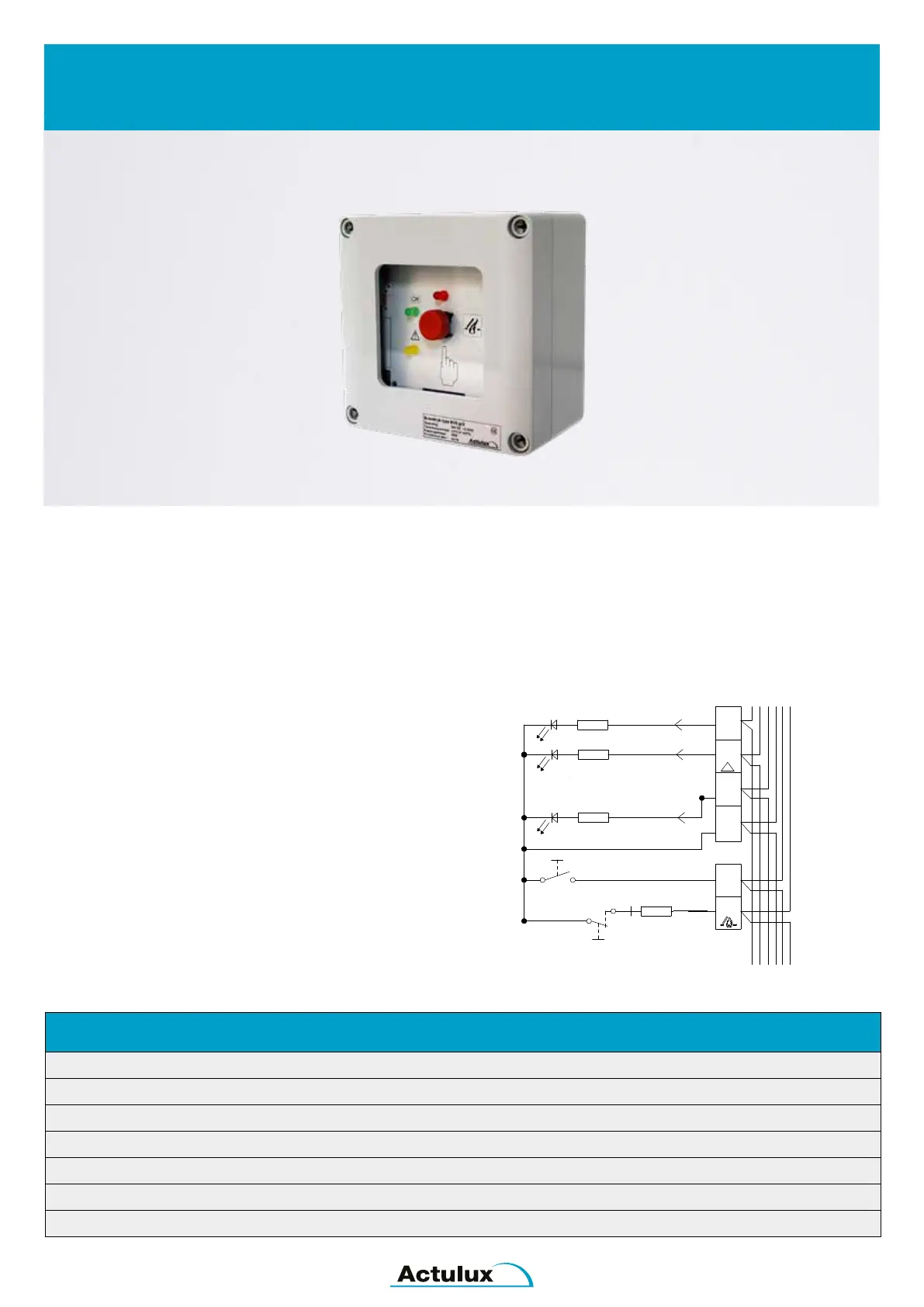

Fire Switch BVSA for Smoke Ventilation Systems, IP65
for Actulux smoke ventilation systems
FEATURES
Function: Alarm (open), reset and off
LED Indicator: ’’ok”, ’’error’’ (yellow), ’’alarm activated’’ (red)
Size: 125 mm x 125 mm x 75 mm (W x H x D)
Temperature range: (-5°C to + 40°C)
Colour: Grey
Protection degree: IP65
Item no.: 111626
EASY INSTALLATION AND OPERATION
The re switch is delivered in a IP65 box for e.g. outdoor
installation and is developed to be used together with the
Actulux smoke ventilation system.
Connection diagram for BVSA
#111626
Ω
Ω
2
6
4
13
15
11
Terminals:
2. green LED OK, lights when OK and while closing
6. yellow LED, lights on error
4. red LED alarm, emergency opening
13. ground (-)
15. re switch reset
11. re switch emergency opening
