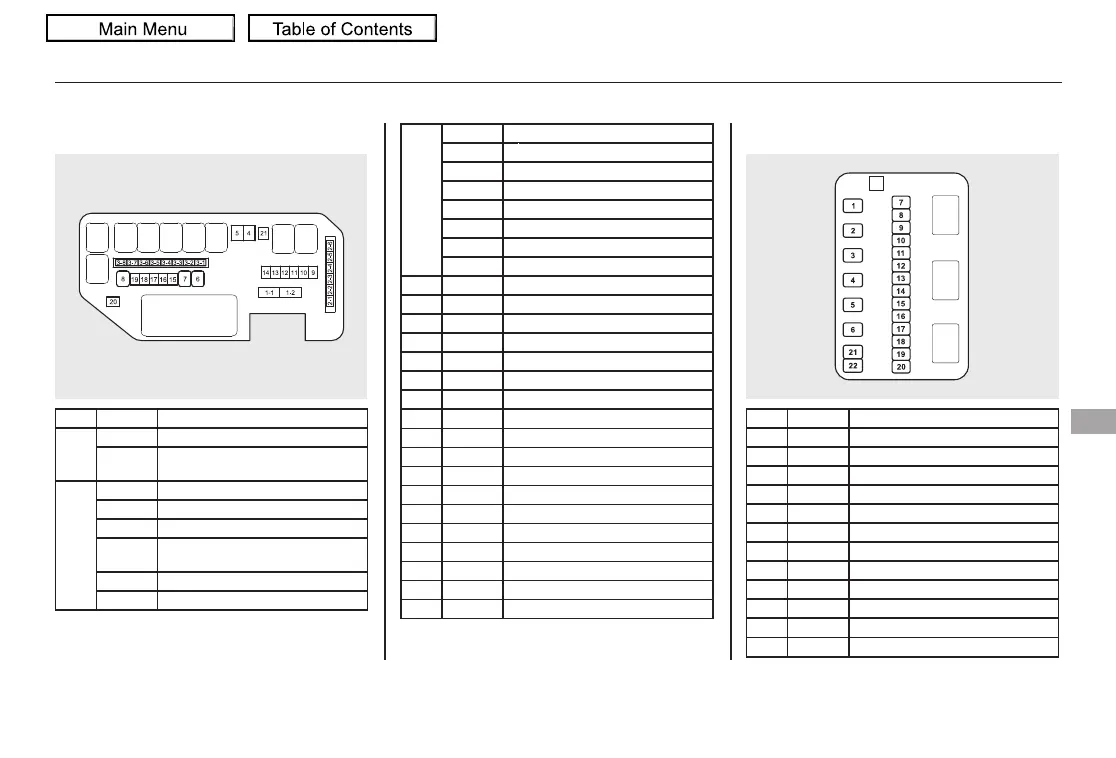

PRIMARY UNDER-HOOD FUSE BOX
No. Amps. Circuits Protected
1 120 A BATTERY
40 A Passenger's Side Fuse Box
STD
2 Not Used
Not Used
30 A Headlight Washer
40 A Passenger's Side Fuse Box
Option
30 A Right e-pretensioner
30 A Left e-pretensioner
3 50 A IG Main
40 A Sub Fan Motor
Not Used
60 A Driver's Fuse Box STD
40 A Main Fan Motor
30 A Driver's Light Main
30 A Wiper Motor
Not Used
4 40 A Heater Motor
5 30 A Passenger's Light Main
6 Not Used
7 Not Used
8 40 A Rear Defroster
9 7.5 A Trailer Turn/Stop Lights
10 15 A Stop & Horn
11 7.5 A Trailer Small Lights
12 30 A ADS
13 15 A IG Coil
14 15 A FI Sub
15 10 A Back Up
16 7.5 A Interior Light
17 15 A FI Main
18 15 A DBW
19 15 A Woofer
20 7.5 A MG Clutch
21 7.5 A Radiator Fan Timer
SECONDARY UNDER-HOOD FUSE BOX
No. Amps. Circuits Protected
1 40 A VSA Motor
2 20 A VSA FSR
3 Not Used
4 Not Used
5 30 A SH-AWD
6 40 A Power Tailgate Motor
7 20 A Tilt Steering Wheel
8 20 A Telescopic Steering Wheel
9 15 A Hazard
10 7.5 A Headlight Hi/Lo Solenoid
11 7.5 A Power Management System
12 7.5 A Smart Accessory
CONTINUED
Fuse Locations
599
Taking Care of the Unexpected
2010 ZDX
