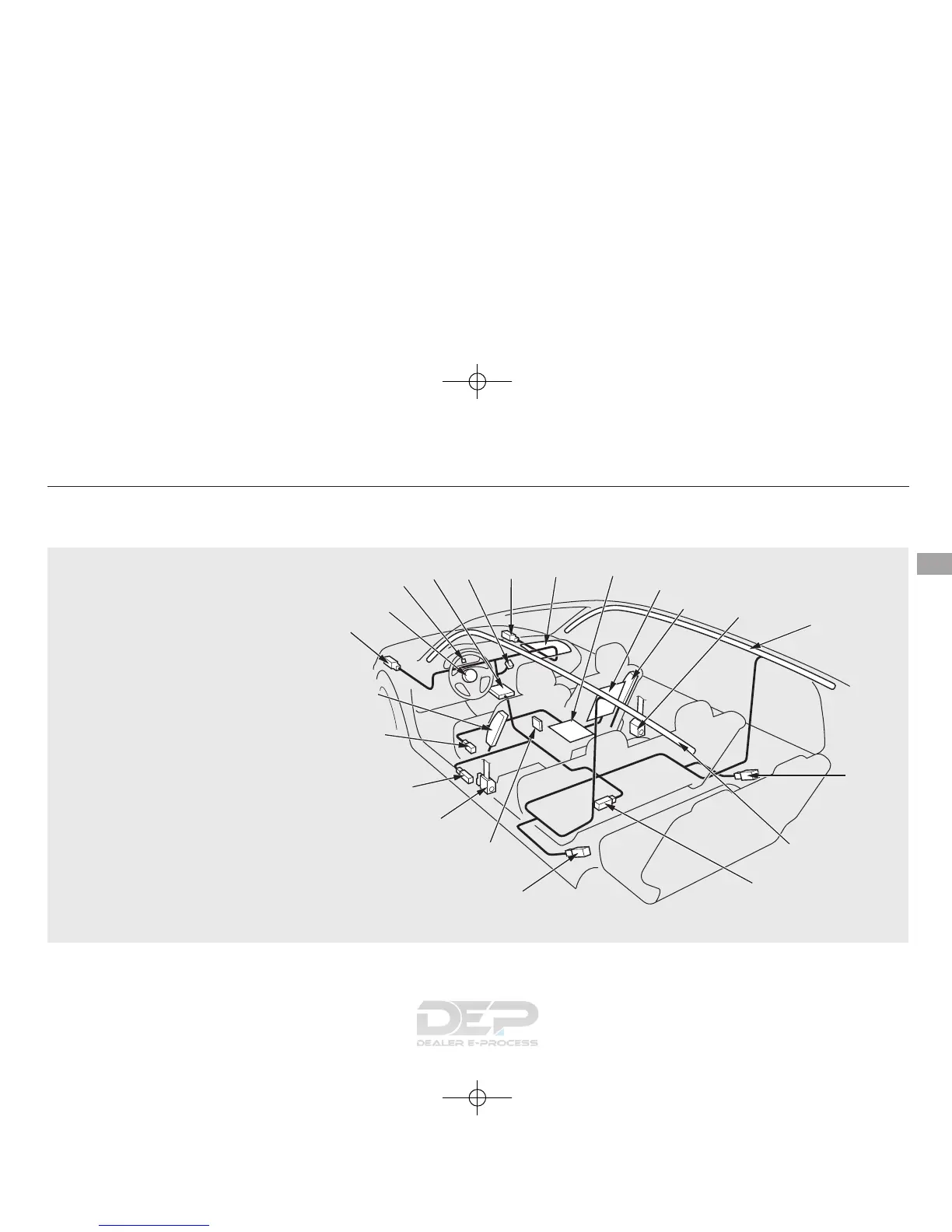

Airbag System Components
ᤳ: On models with CMBS
(5) Side Airbags
(6) Driver's Seat Position Sensor
(7) Front Passenger's Weight Sensors
(8) Passenger Airbag Off Indicator
(9) Occupant Position Detection System
(OPDS) Sensors
(10) Front Passenger's Weight Sensors/OPDS
Sensors Control Unit
(11) SRS Indicator
(1)
(11)
(8)
(6)
(2)
(3)
(5)
(10)
(9)
(7)
(4)
(5)
(4)
(1) Driver's Front Airbag
(2) Passenger's Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners/Seat Belt
e-pretensioners
ᤳ
(12) e-pretensioner Control Unit
ᤳ
(13) Front Impact Sensors
(14) Side Curtain Airbags
(15) Side Impact Sensors (First)
(16) Side Impact Sensors (Second)
(17) Safing Sensor
(13)
(13)
(14)
(15)
(16)
(16)
(17)
(12)
(14)
CONTINUED
Additional Information About Your Airbags
27
Driver and Passenger Safety
