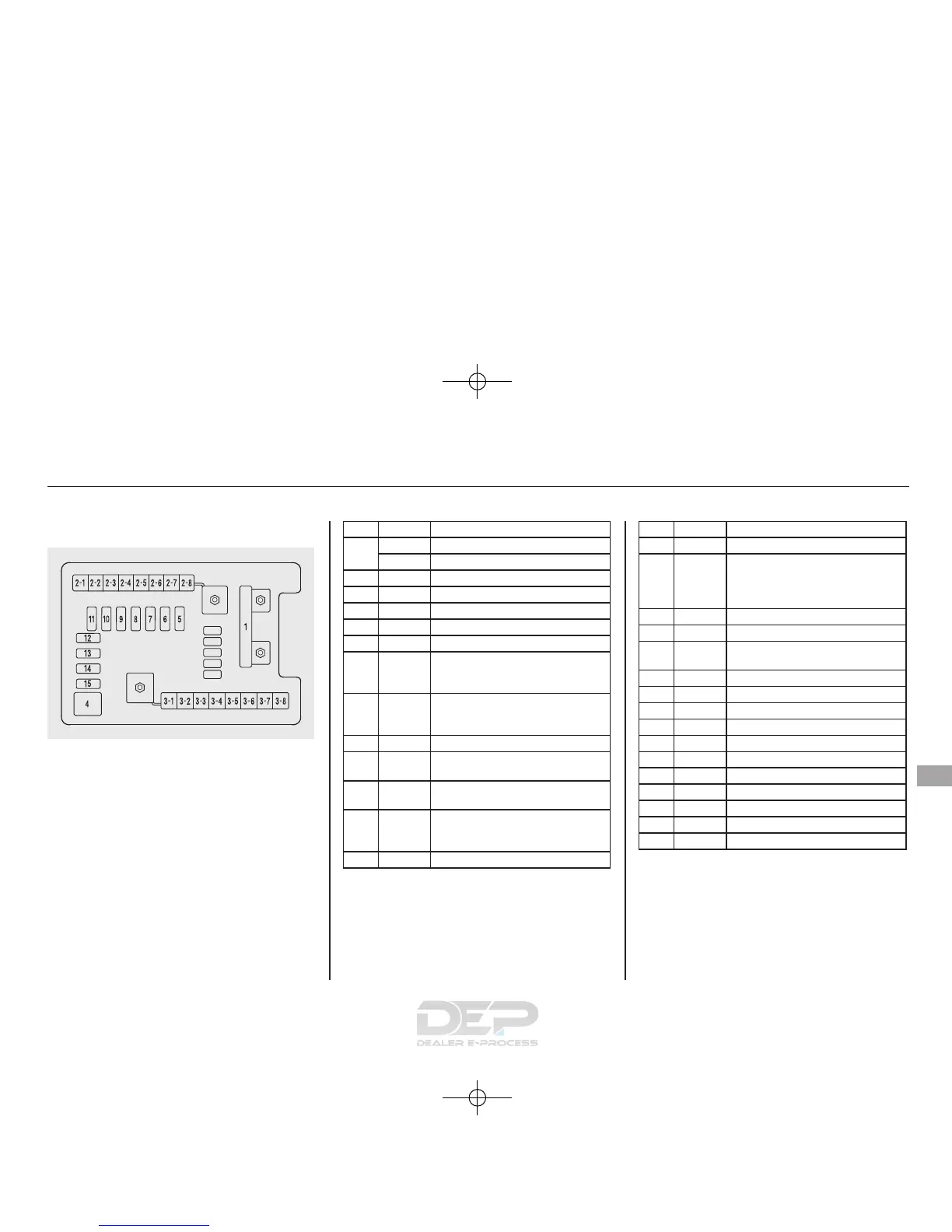

PRIMARY UNDER-HOOD FUSE BOX
No. Amps. Circuits Protected
1 120 A Main fuse
－ Not Used
2－1 30 A ADS
ᤳ2
2－2 30 A SH-AWD
2－3 30 A Rear Blower Motor
2－4 40 A ABS VSA
2－5 40 A Trailer Main
2－6 40 A Power Seats, Driver's Position
Memory System, Subwoofer,
Telescopic Steering Wheel
2－7 40 A Front Heated Seat, TPMS,
Moonroof, Driver's Lumbar
Support
2－8 －－
3－1 60 A Fog Lights, Front Blower
Motor, Interior Light
3－2 40 A Headlights, Daytime Running
Lights
3－3 60 A Cooling Fan, Condenser Fan,
MG Clutch, Headlight
Washer
ᤳ1
3－4 50 A Ignition Switch Main
ᤳ1: Canadian model
ᤳ2: If equipped
No. Amps. Circuits Protected
3－5 50 A Power Window
3－6 60 A Power Tailgate Opener/Closer,
Rear ACC Socket, Interior
Light,
Rear Defroster
3－7 30 A ECU (PCM)
3－8 30 A TECH
4 40 A Audio, Door Lock, Interior
Lights, Front ACC Socket
5 30 A EPT-L
ᤳ2
6 30 A EPT-R
ᤳ2
7 30 A FI ECU
8 30 A Audio Amplifier
9 7.5 A Battery Sensor
10 15 A Hazard
11 15 A Horn, Stop
12 20 A ABS VSA
13 20 A Trailer (Brake)
14 20 A Rear Heated Seat
ᤳ2
15 20 A A/C Inverter
CONTINUED
Fuse Locations
569
