Routing the Engine Starter Harness

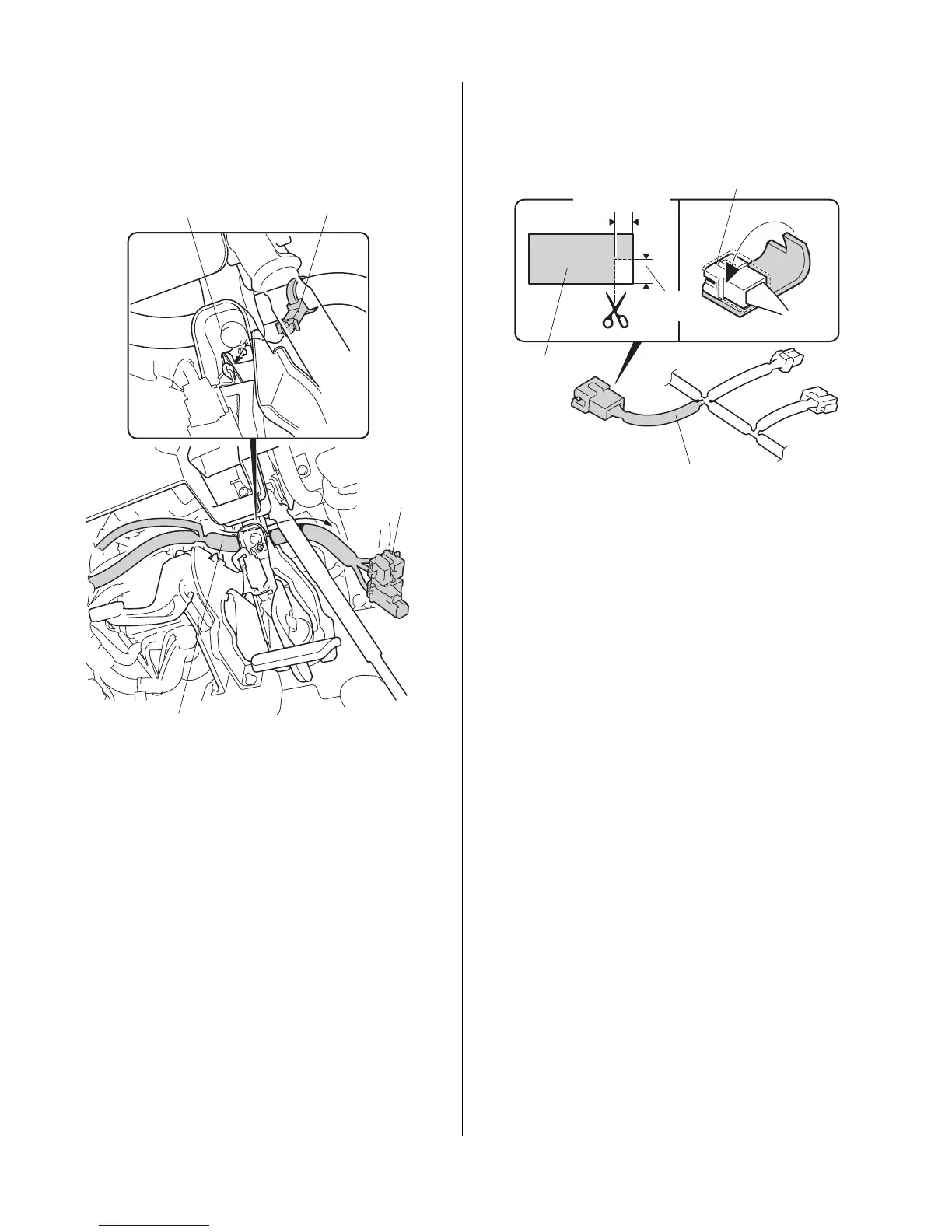

34. Route the engine starter harness as shown. Attach
the clip on the engine starter harness to the vehicle
frame.
QB21401AK
ENGINE
STARTER
HARNESS
RELAY
BLOCKS
ENGINE STARTER
HARNESS
CLIP ON THE ENGINE
STARTER HARNESS
VEHICLE
FRAME
35. Using scissors, cut one urethane tape to the
measurements shown. Wrap the cut urethane tape
around the engine starter harness 5-pin connector.
QB21402AK
20 mm (0.8 in.)
ENGINE STARTER
HARNESS
25 mm
(1.0 in.)
URETHANE
TAPE
ENGINE STARTER HARNESS
5-PIN CONNECTOR
VIEW FROM
URETHANE SIDE
