Acura 2014 RDX REMOTE CONTROL User Manual

16 of 25 BII 48865 (1303) © 2013 American Honda Motor Co., Inc. – All Rights Reserved.

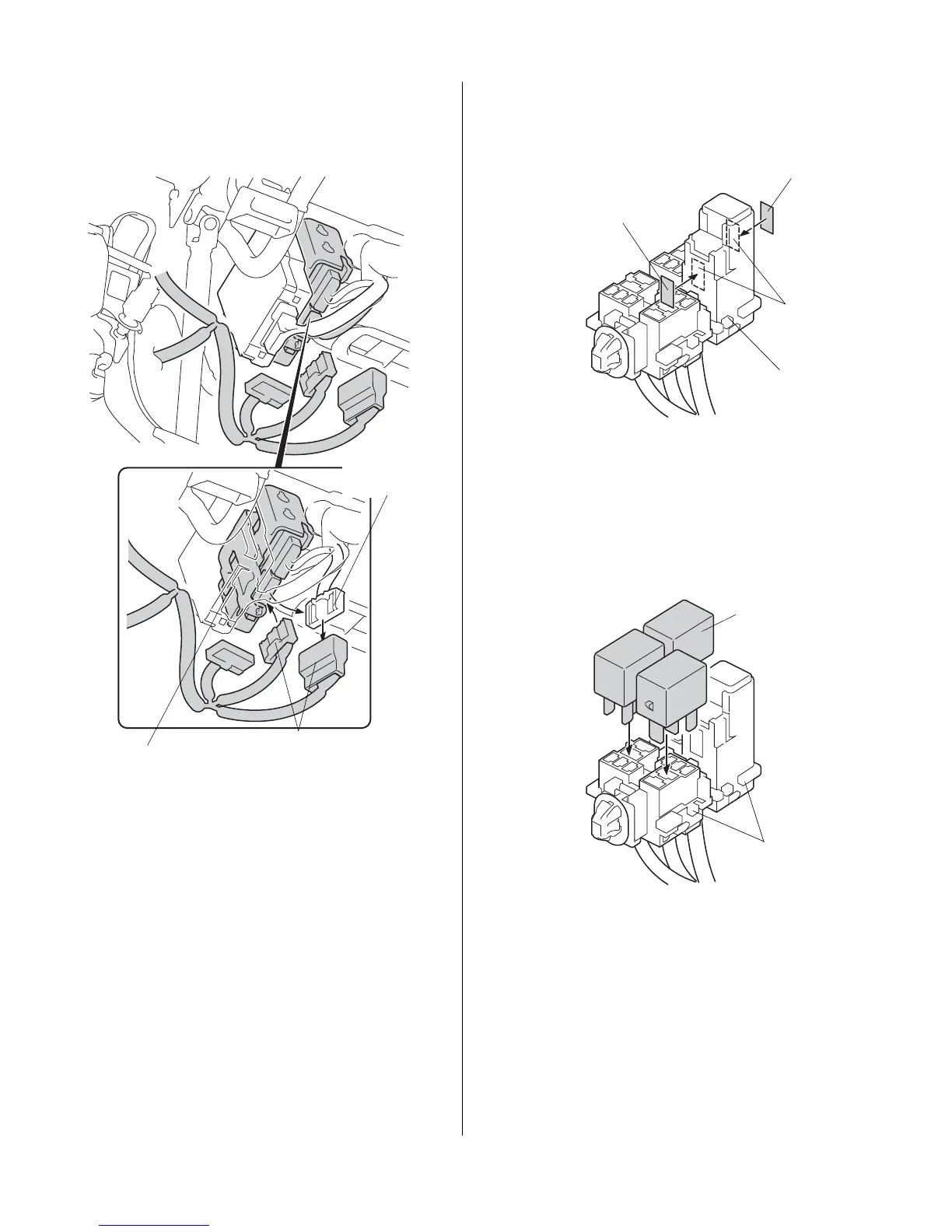

46. Unplug the vehicle 32-pin connector from the vehicle
unit, and plug it into the engine starter harness
32-pin connector. Plug the engine starter harness
32-pin connector into the vehicle unit.
QB21702BK
ENGINE
STARTER
HARNESS
32-PIN
CONNECTORS
VEHICLE
32-PIN
CONNECTOR
VEHICLE UNIT
47. Using isopropyl alcohol on a shop towel, clean the
areas where the fuse labels will attach.
48. Attach one 40A fuse label and one 3A fuse label to
the engine starter harness relay block.
49. Install three relays to the engine starter harness
relay blocks.
QB22201AK
Clean with
isopropyl
alcohol.
3A FUSE
LABEL
40A FUSE
LABEL
ENGINE STARTER
HARNESS RELAY
BLOCK
QB22202AK
ENGINE STARTER
HARNESS RELAY
BLOCKS
3 RELAYS
