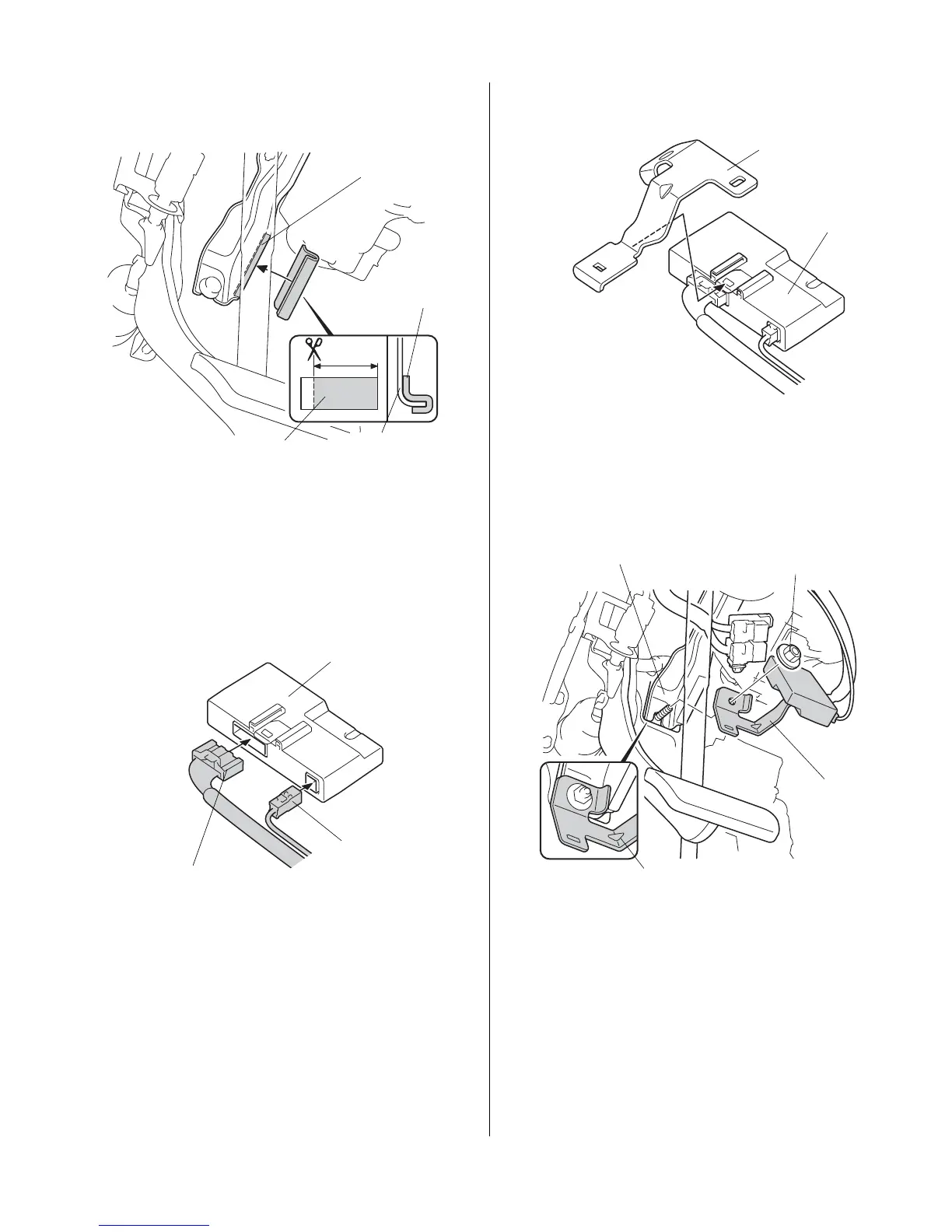

50. Using isopropyl alcohol on a shop towel, clean the
area where the urethane tape will attach.
51. Using scissors, cut one urethane tape to the
measurements shown. Attach the cut urethane tape
to the vehicle frame.
52. Plug the antenna cable connector and engine starter
harness 28-pin connector into the control unit.
QB22203AK
Clean with
isopropyl
alcohol.
URETHANE TAPE
(Cut.)
URETHANE
TAPE
VEHICLE FRAME
100 mm
(3.9 in.)
QB22204BK
CONTROL
UNIT
ANTENNA CABLE
CONNECTOR
ENGINE STARTER
HARNESS 28-PIN
CONNECTOR
53. Install the control unit bracket to the control unit.
54. Near the brake padel, remove the vehicle nut from
the vehicle frame, and secure the control unit
bracket to the vehicle frame with the vehicle nut.
QB22205AK
CONTROL UNIT
CONTROL UNIT
BRACKET
QB22301BK
CONTROL UNIT
BRACKET
VEHICLE NUT
(reused)
CONTROL UNIT
BRACKET
VEHICLE FRAME
