18 of 25 BII 48865 (1303) © 2013 American Honda Motor Co., Inc. – All Rights Reserved.

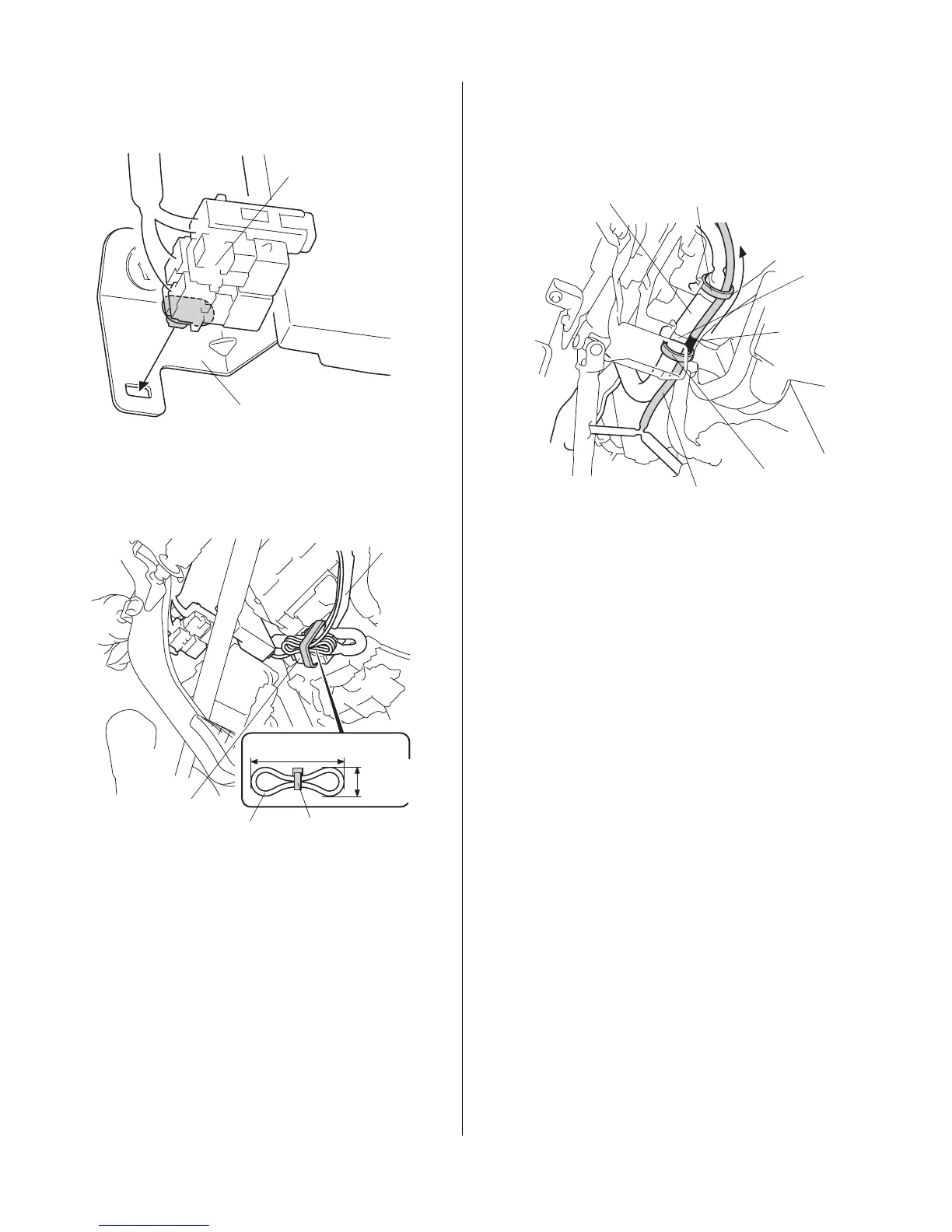

55. Attach the engine starter harness relay block to the
control unit bracket.
56. Bundle up the excess antenna cable as shown.
57. Using one long wire tie, secure the antenna cable
and engine starter harness 32-pin connector to the
vehicle harness.
CONTROL UNIT
BRACKET
ENGINE STARTER
HARNESS RELAY
BLOCK
ENGINE STARTER
HARNESS 32-PIN
CONNECTOR
ANTENNA
CABLE
VEHICLE
HARNESS
LONG
WIRE TIE
100 mm (3.9 in.)
20 mm
(0.8 in.)
or above.
58. Align the white tape on the engine starter harness
with the clip on the vehicle harness, and secure the
engine starter harness to the vehicle harness using
one wire tie.
59. Using one wire tie, secure the engine starter harness
to the vehicle harness.
CLIP ON
THE VEHICLE
HARNESS
WHITE
TAPE
WIRE TIE
WIRE TIE
ENGINE
STARTER
HARNESS
VEHICLE
HARNESS
To Next Page
