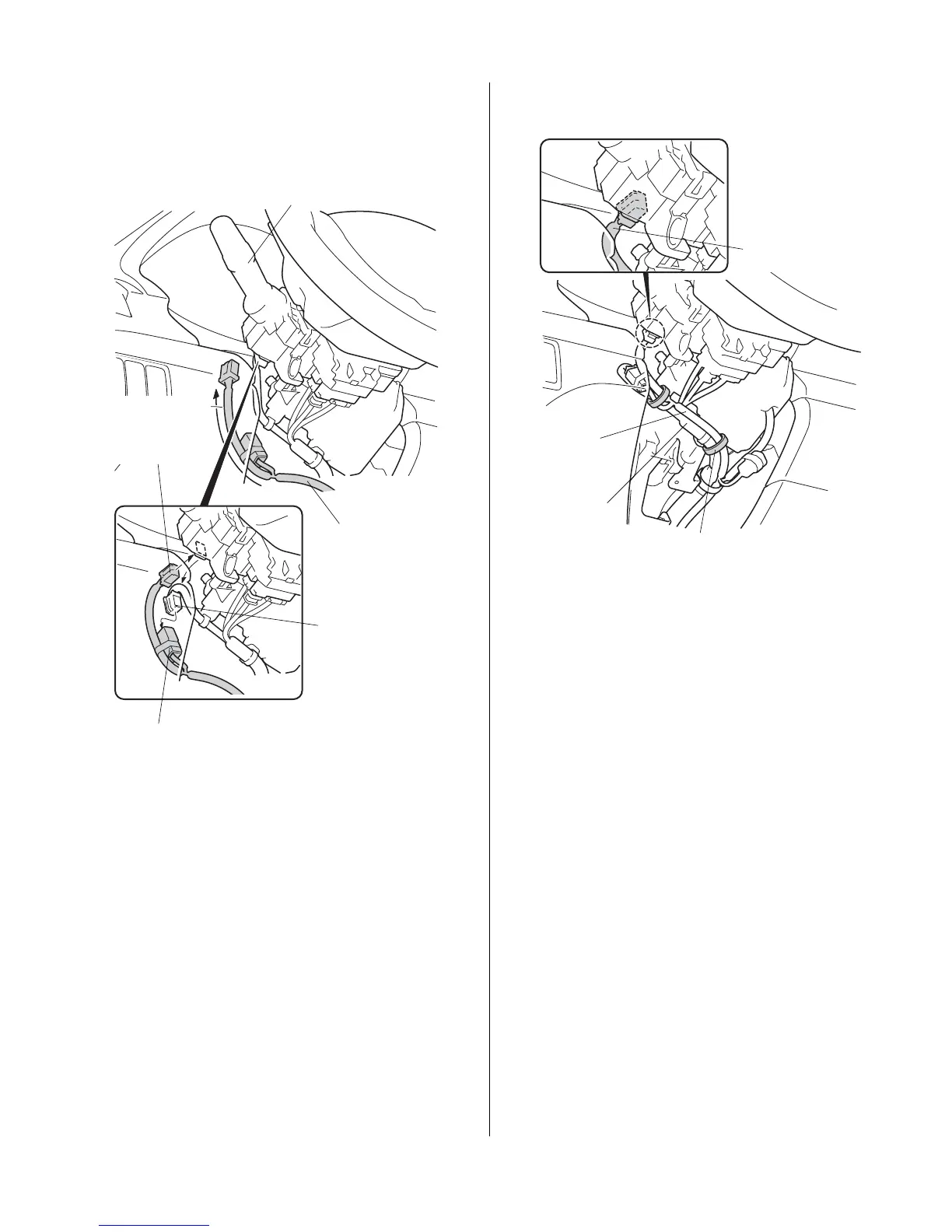

60. Unplug the vehicle 12-pin connector, and plug it into
the engine starter harness 12-pin connector. Plug
the remaining engine starter harness 12-pin
connector into the combination light switch.
QB22305BK
ENGINE STARTER
HARNESS
ENGINE
STARTER
HARNESS
12-PIN
CONNECTOR
ENGINE STARTER HARNESS
12-PIN CONNECTOR
VEHICLE
12-PIN
CONNECTOR
COMBINATION
LIGHT SWITCH
61. Using two wire ties, secure the engine starter
harness to the vehicle harness.
QB22401BK
ENGINE
STARTER
HARNESS
VEHICLE
HARNESS
2 WIRE TIES
Do not tighten the
12-pin connector
wire tie too tight.
