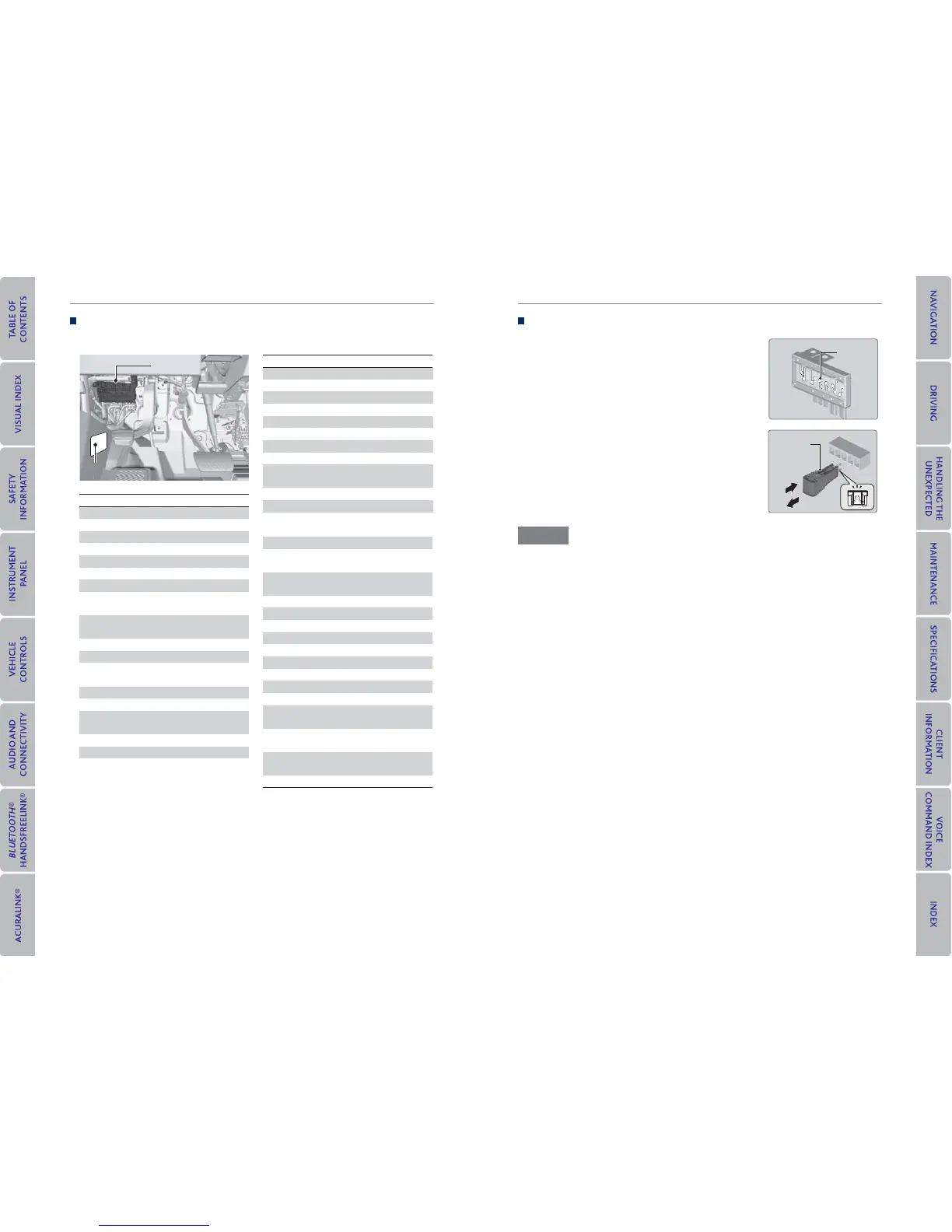

Interior Fuse Box
Located under the dashboard.
Circuit Protected Amps
1 − −
2 ACG 15 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Option 7.5 A
7 VB SOL 10 A
8
Front Right Side
Door Lock Motor (Unlock)
15 A
9
Rear Left Side
Door Lock Motor (Unlock)
15 A
10 Power Lumbar 7.5 A
11 Moonroof 20 A
12
Accessory Power Socket
(Center Console)
15 A
13 Washer Main 15 A
14 Seat Heaters 15 A
15
Driver’s Door Lock Motor
(Unlock)
10 A
16 − −
17 − −
18 − −
19 ACC 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 A/C 7.5 A
23 Rear Wiper 10 A
24 ABS/VSA 7.5 A
25 − −
26 Audio Amp 20 A
27
Accessory Power Socket
(Front)
15 A
28 − −
29 ODS 7.5 A
30
Driver’s Door Lock Motor
(Lock)
10 A
Circuit Protected Amps
31 Smart 10 A
32
Front Right Side
Door Lock Motor (Lock)
15 A
33
Rear Left Side
Door Lock Motor (Lock)
15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 Rear Wiper Main 10 A
37 − −
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 TPMS 7.5 A
41 Door Lock 20 A
42 Driver’s Power Window 20 A
43
Rear Right Side Power
Window
20 A
44
Front Right Side Power
Window
20 A
45
Rear Left Side Power
Window
20 A
46 Wiper 30 A
Fuse box
Fuse label
Inspecting and Changing Fuses
1. Turn the vehicle off, including the headlights and
accessories.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
If the fuse is blown, use a Phillips-head
screwdriver to remove the screws and replace
the fuse with a new one. Reinstall the screws.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
If there is a burned out fuse, remove it with the
fuse puller and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the chances of
damaging the electrical system.
NOTICE
Blown fuse
Combined
fuse
Fuse puller
