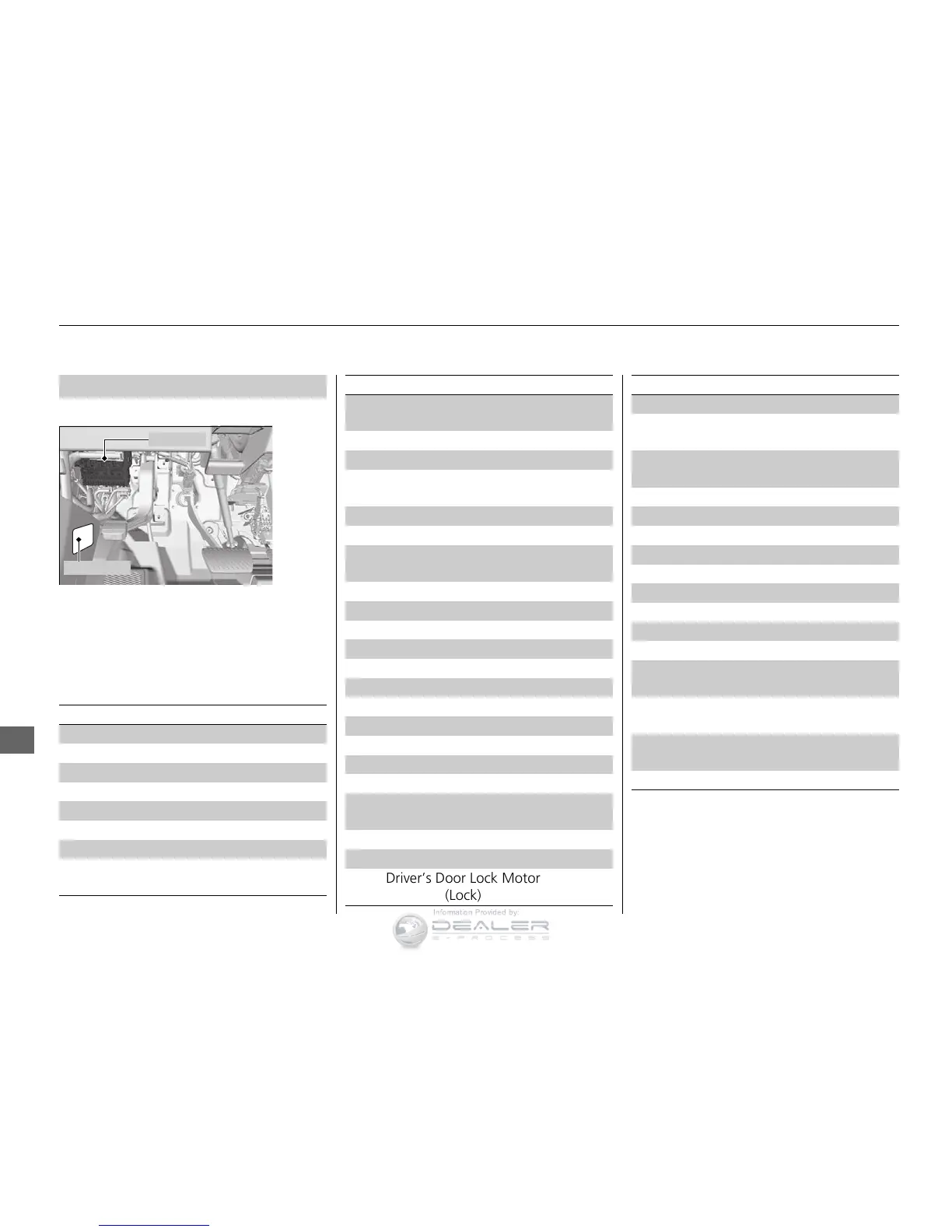

uuFusesuFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■ Circuit protected and fuse rating
■
Interior Fuse Box
Fuse Label
Fuse Box
Circuit Protected Amps
1 − −
2 ACG 15 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Option 7.5 A
7 VB SOL 10 A
8
Front Right Side
Door Lock Motor (Unlock)
15 A
9
Rear Left Side
Door Lock Motor (Unlock)
15 A
10 Power Lumbar 7.5 A
11 Moonroof 20 A
12
Accessory Power Socket
(Center Console)
15 A
13 Washer Main 15 A
14 Seat Heaters 15 A
15
Driver’s Door Lock Motor
(Unlock)
10 A
16 − −
17 − −
18 − −
19 ACC 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 A/C 7.5 A
23 Rear Wiper 10 A
24 ABS/VSA 7.5 A
25 − −
26 Audio Amp 20 A
27
Accessory Power Socket
(Front)
15 A
28 − −
29 ODS 7.5 A
30
Driver’s Door Lock Motor
(Lock)
10 A
Circuit Protected Amps
31 Smart 10 A
32
Front Right Side
Door Lock Motor (Lock)
15 A
33
Rear Left Side
Door Lock Motor (Lock)
15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 Rear Wiper Main 10 A
37 − −
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 TPMS 7.5 A
41 Door Lock 20 A
42 Driver’s Power Window 20 A
43
Rear Right Side Power
Window
20 A
44
Front Right Side Power
Window
20 A
45
Rear Left Side Power
Window
20 A
46 Wiper 30 A
Circuit Protected Amps
