Acura 2016 RDX - Fuses; Fuse Locations

420
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

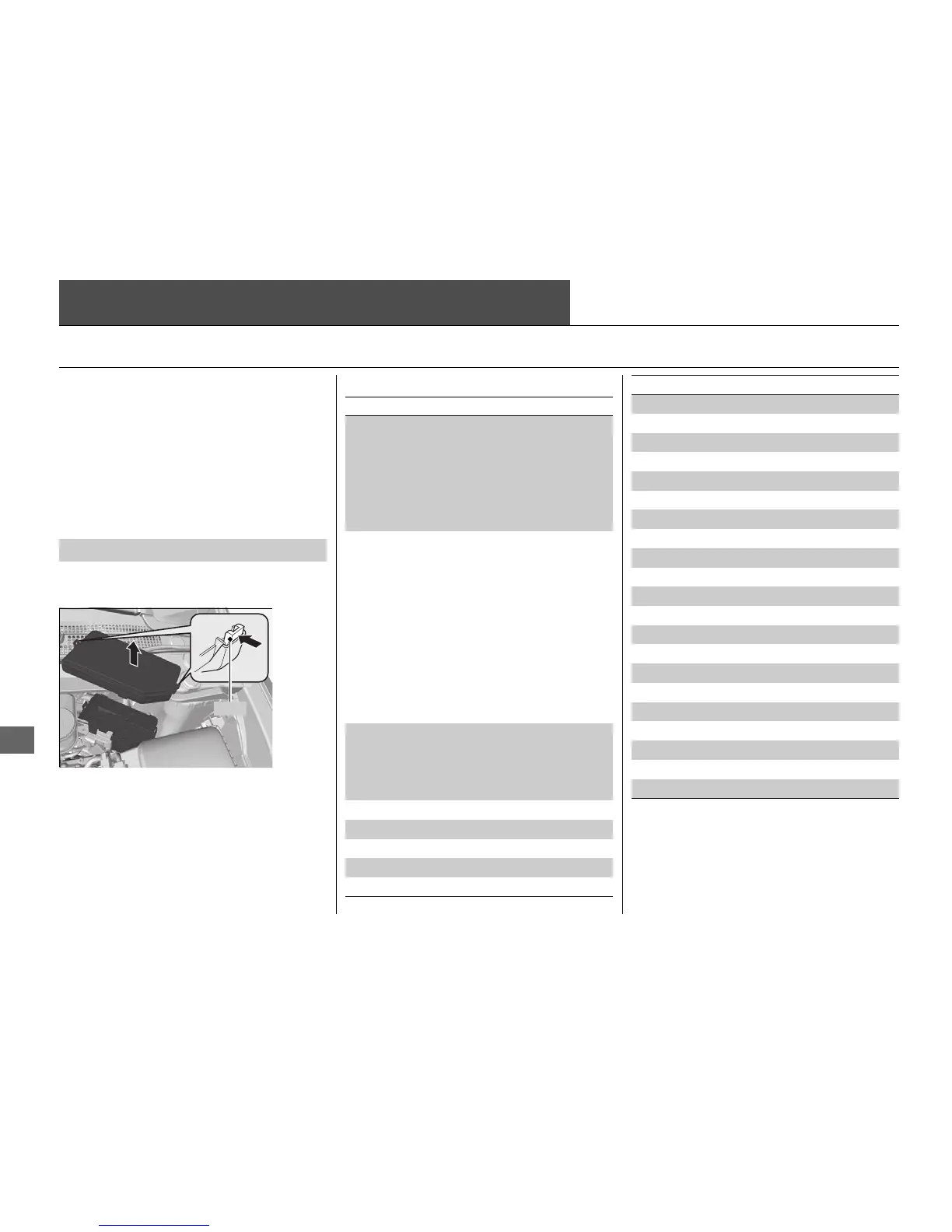

Located near the brake fluid reservoir. Push
the tabs to open the box.
■
Engine Compartment Fuse Box
Tab
■ Circuit protected and fuse rating
Circuit Protected Amps
1
EPS 70 A
Power Tailgate Motor (40 A)
ABS/VSA FSR 20 A
ABS/VSA Motor 40 A
E-DPS (30 A)
Main Fuse 120 A
2
− 50 A
Fuse Box Main 1 60 A
Fuse Box Main 2 60 A
IG Main 50 A
Headlight Washer
*
(30 A)
Sub Fan Motor 30 A
Rear Defogger 40 A
Main Fan Motor 30 A
Headlight Main 30 A
Blower 40 A
3
ST CUT1 40 A
IG Main1 30 A
Sub Fuse Main (40 A)
IG Main2 30 A
4 Rear Seat Heaters
*
(20 A)
5 STR Diagnosis Fuse 7.5 A
6Audio (ODMD)
*
(15 A)
7 − −
8− −
9 − −
10 − −
11 Oil Level 7.5 A
12 Fog Lights
*
(20 A)
13 Power Tailgate Closer (20 A)
14 Hazard 10 A
15 IGP2 15 A
16 IG Coil 15 A
17 Stop 10 A
18 Horn 10 A
19 ACM 20 A
20 Right Headlight Low Beam 15 A
21 MG Clutch 7.5 A
22 DBW 15 A
23 Left Headlight Low Beam 15 A
24 DRL (10 A)
25 FI Main 15 A
26 Trailer (20 A)
27 Small 20 A
28 Interior Lights 7.5 A
29 Back Up 10 A
Circuit Protected Amps
* Not available on all models
