662
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

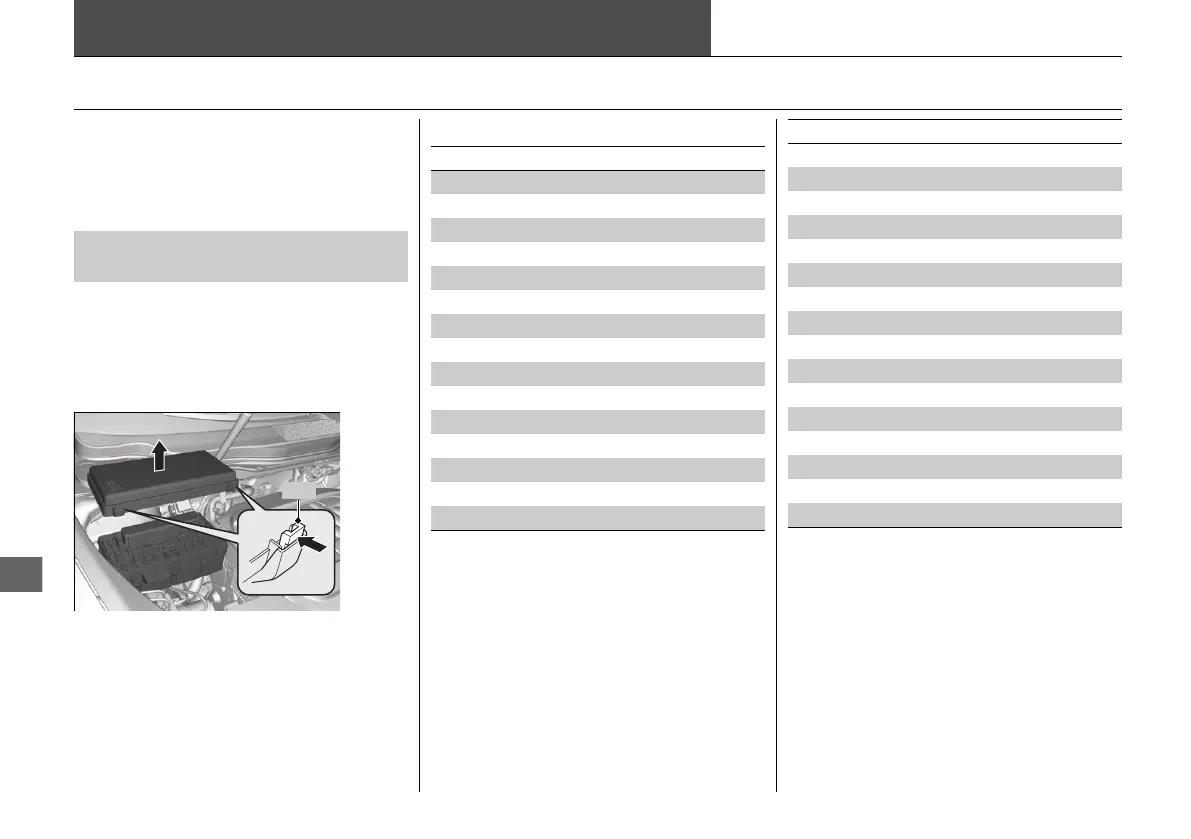

Located near the brake fluid reservoir. Push
the tabs to open the box.
Engine Compartment Fuse
Box Type A
Tab
Circuit protected and fuse rating
Circuit Protected Amps
1 STRLD 7.5 A
2
3 ACG FR 15 A
4 Washer 15 A
5 IG1 OP (7.5 A)
6 ECU FR 7.5 A
7 Starter 7.5 A
8FI Sub 15A
9 DBW 15 A
10 FI Main 15 A
11 IG Coil 15 A
12 DRL R 10 A
13 DRL L 10 A
14 Injector 20 A
15
16 Back Up 10 A
17 MG Clutch (7.5 A)
18 FR Fog
*
(7.5 A)
19
20 H/L HI R 7.5 A
21
22 Small 10 A
23
24 H/L HI L 7.5 A
25 SBW 15 A
26 H/L LO R 10 A
27 H/L LO L 10 A
28 Oil LVL 7.5 A
29 Main Fan 30 A
30 Sub Fan 30 A
31 Wiper Main 30 A
Circuit Protected Amps
