SIGN DESCRIPTION
A1 OUTSIDE TEMPERATURE SENSOR NTC4 (AF 120) for MCBA
A2 OUTSIDE TEMPERATURE SENSOR AF 200 for CONTROL UNIT
A3 CONTACT SENSOR NTC 6 to be mounted on the outlet of the mixed heating circuit for MCBA (when module AM3-11
is installed)
A4 POCKET SENSOR KVT
Installed in the hot water tanks and in the balanced header. Connected to the Control Unit.
A5 CONTACT SENSOR VF 202 to be mounted on the outlet of the mixed heating circuit for CONTROL UNIT (or when
module ZMC-1 installed). Allows weather dependent regulation.
A6 SENSOR KLF 1000
A7 SENSOR SPF 1000
A8 CONTACT SENSOR RAM
B AM 3-11 MODULE
Controls the second heating circuit - communicates directly with the MCBA. Operates with room thermostat.
C ZMC-1 MODULE
Controls the second heating circuit - alarm contact - operates only in cojunction with the Room Unit RSC. Needs RMCI
installed directly in MCBA.
D COMMUNICATION MODULE RMCI
Enables communications between the MCBA and the Room Unit RSC.
E WEATHER DEPENDENT REGULATOR CONTROL UNIT
Regulates one or more boiler (cascade of max 8 boilers) HeatMaster TC with modulating burners. Allows control of
3 heating circuits (2 mixed, 1without mixer) and hot water production. Equipped with 2 outputs and 3 programmable
inputs, allowing solar system and solid fuel boiler regulation. Installed in the wall mounting socket.
SIGN DESCRIPTION
F ROOM UNIT
Room regulator, controls heating and hot water production, installed inside of the building on the wall. Supplied with
outside temperature sensor. Allows heating curve regulation, room and hot water temperature. Displays all tempera-
tures. Connected to the terminals 10-11 of the boiler terminal block.
G ZONE UNIT
Shows internal temperature and allows for remote control of 1 heating circuit. Communicates with the Control Unit.
For 3 heating circuits - max 3 Zone Units. Allows correction of the heating curve, temperatures and shows information
from installed sensors. Connected to the Control Unit terminals 24-25.
RFF
Operates with the Control Unit. Can be mounted on every heating circuit. Connected to Control Unit terminals 24-25.
H ROOM THERMOSTAT
Installed inside the building on the wall. Controls room set temperature. Operates with MCBA. Connected to the boiler
terminals 1-2 instead of the bridge.
I SOLAR CONTROLLER LAGO SD3
J COLLECTOR 2 or 3 CIRCUITS DN 20 or 32
Installed directly under the boiler. Allows connection of 2 heating circuits. Internal regulation of the by-pass allows
it to become a balanced header.
K HIGH TEMPERATURE KIT DN 20 or 32
Installed to the collector under the boiler. Supplies high temperature circuit or water tank primaries. Includes: 1
circulation pump, 2 isolating valves, check valve, 2 thermometers.
L LOW TEMPERATURE KIT DN 20 or 32
Installed to the collector under the boiler. Supplies low temperature circuit and controls its temperature. Includes: 1
circulation pump, 2 isolating valves, check valve, 2 thermometers and the 3-way valve with the integrated by-pass.
M SOLAR PUMP GROUP
N DHW THERMOSTATIC MIXING VALVE
O SOLAR PANEL
Hotel Orca Praia,
Portugal
2 HeatMaster TC, Solar
Collectors, solar tank
Forest Research
Institute
Sękocin Stary, Poland
1 HeatMaster 35 TC for
DHW only
Crieff Hydro,
UK
1 HeatMaster 35 TC
Villa House, Starowa
Góra, Poland
2 HeatMaster 35 TC,
SLME, Solar Collectors
for DHW and Heating

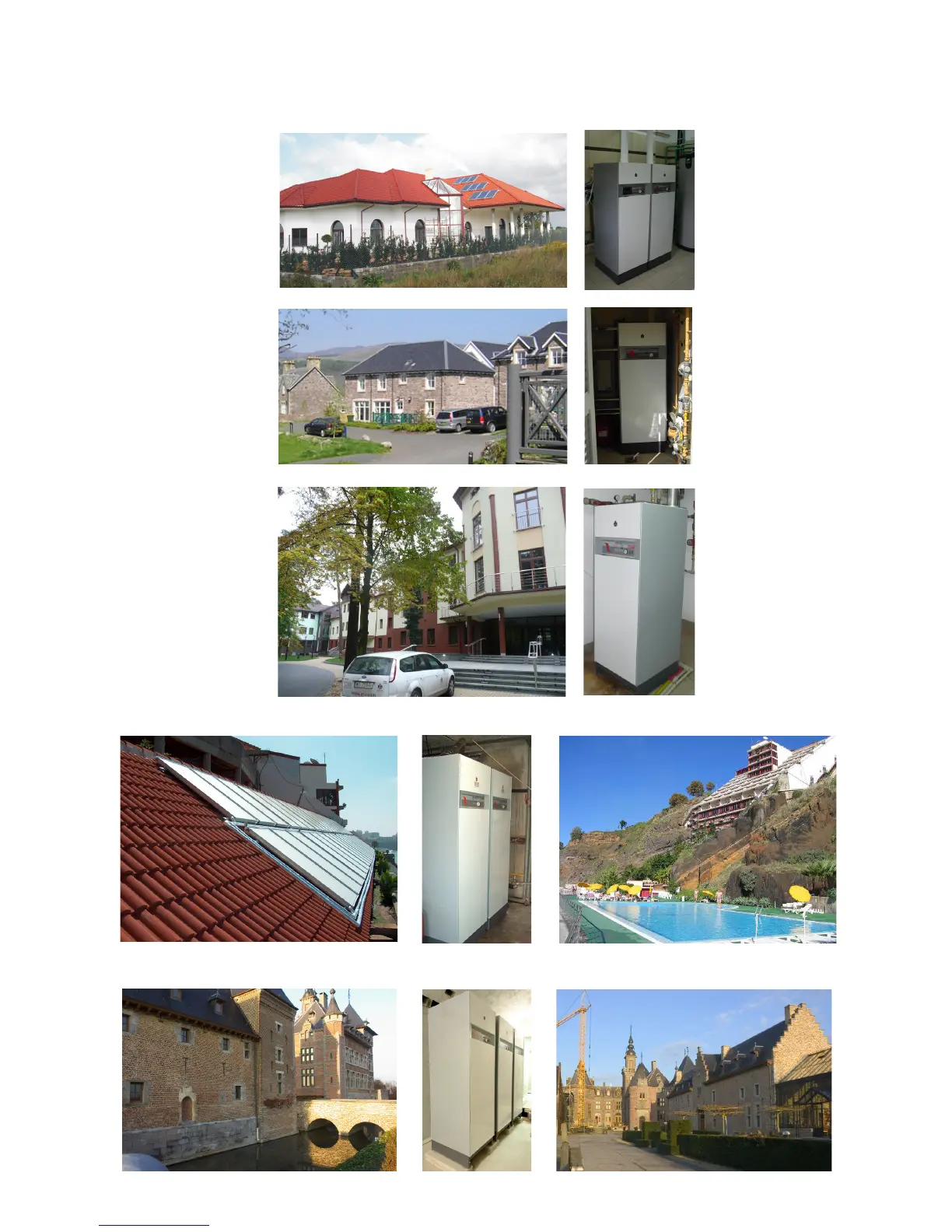

They chose ACV HeatMaster TC
Hotel Castle of Ordingen
Belgium
3x Heat Master 85 TC
DHW and Heating
