INSTALLATION

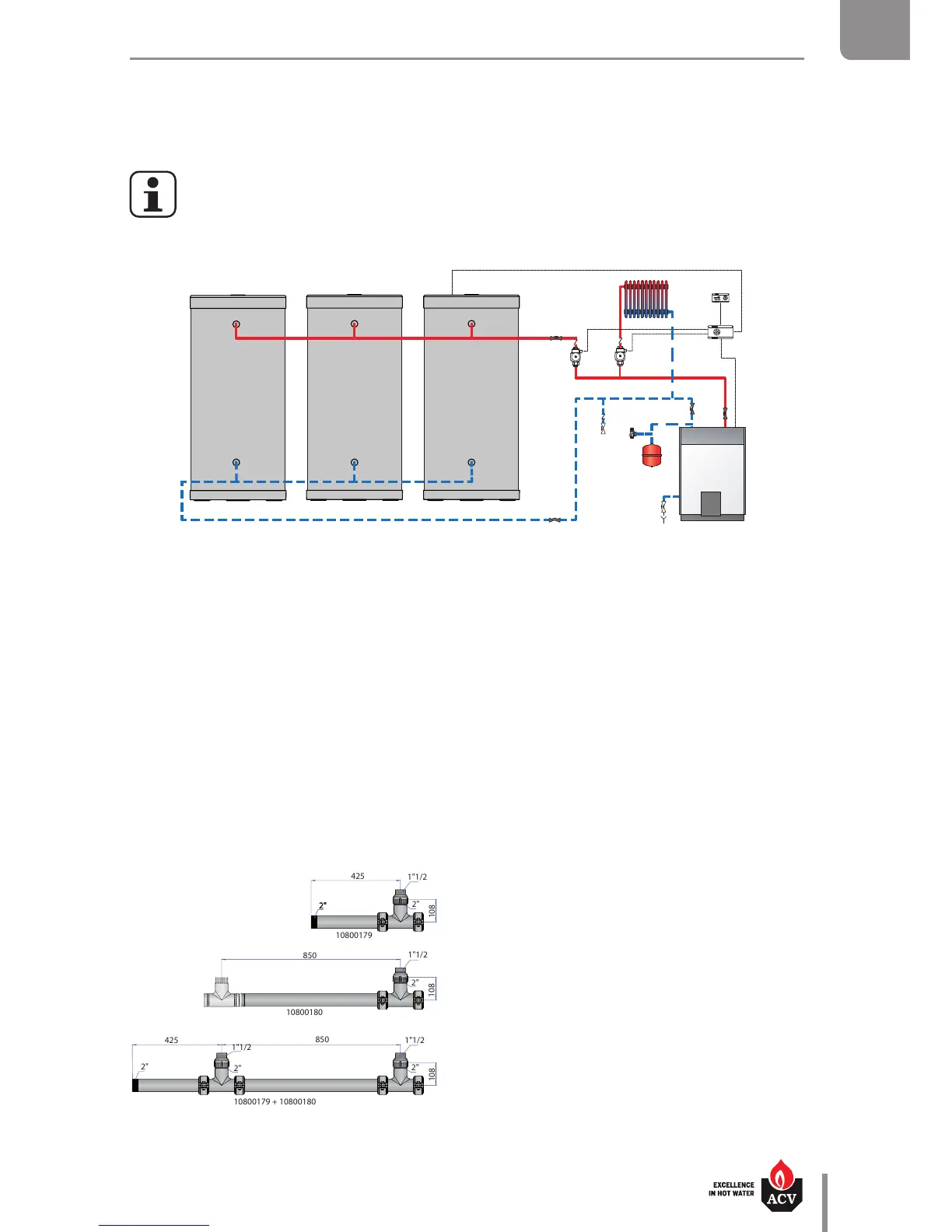

PARALLEL TANK ASSEMBLY Typical - 3 tanks
Recommended assembly for any waste heat recovery system and for district heating applications.
This type of connection reduces the water heating performance of the system. Make
sure to oversize the assembly. A specific connection kit is required to build this type
of assembly.
Legend
1. Primary circuit filling valve
2. Safety valve
3. Expansion vessel
4. Drain valve
5. Primary circuit stop valve
6. Room thermostat
7. Boiler control (option)
8. Charging pump
9. Primary circuit pump
5
1
8
9
4
2
3
6
7
5
5
5
5 5
1
8
9
4
2
3
6
7
5
5
CONNECTION KITS OPTION
Reference codes : 10800179 - 10800180
108
425
850
10800179 + 10800180
10800180
850
10800179
108108
425
1"1/2
1"1/2
2"
2"
2"
2"2"
2"
2"
2"
1"1/2
1"1/2
