TECHNICAL CHARACTERISTICS
TECHNICAL CHARACTERISTICS
DIMENSIONS AND MAIN CHARACTERISTICS

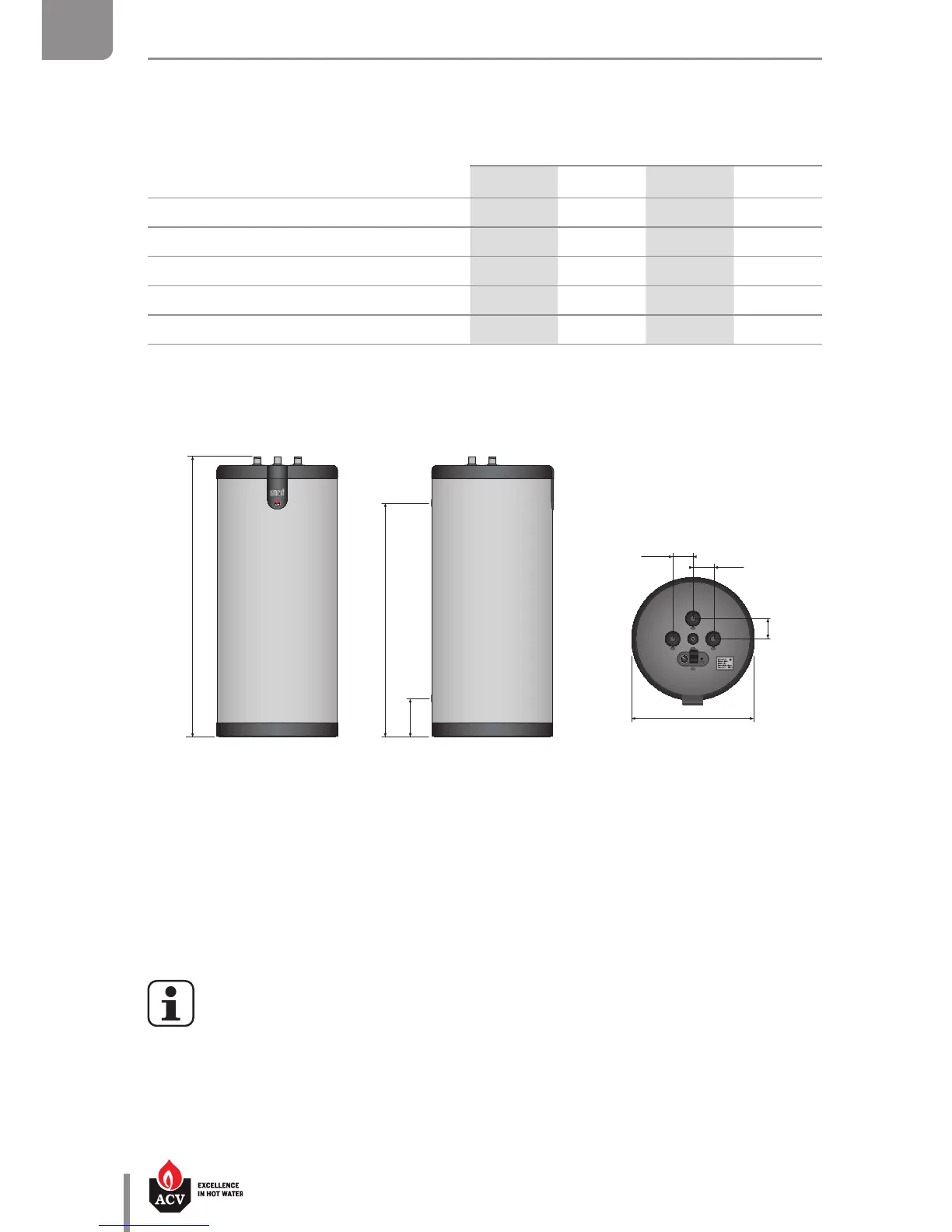

Tank dimensions
SL
320 420 420 D 600
A mm 1,602 2,024 2,024 1,901
B mm 1,280 1,705 1,705 1,583
C mm 250 250 250 255
D mm 673 673 673 817
Empty weight Kg 141 167 167 238
POSITION
The hot water cylinder must be installed in an area that is dry and protected from the elements.
Choose the most suitable location according to the position of the boiler and distance
tothedomestic hot water supply, in order to reduce temperature and pressure drops within the
pipe work.
The unit should be positioned to allow the replacement, if required, of the dip tube
and dry well during servicing.
C
B
A
135
D
135
135
