MEASUREMENT FOUNDATION
11
Servo
ROTARY 400 HV
INSTRUMENTS
Laser Detector
You can enlarge the measurement range with the help of laser detector.
Use the Laser Detector when it is hard to see the laser beam, such
as outdoors or in bright rooms.Attach the laser detector to a rod with
the help of mount.
Using the Laser Detector
1. Press the Power key to turn on the detector.
2. Press to select the ne or coarse detection mode: ne mode - ,
coarse mode (for beam detection) - . Red LED is on.
3. Select the mute or sound mode. Mute mode - red LED is on the
sound key. Sound mode - green LED.
4. Turn the detection window towards the laser beam and move
the detector up and down following the direction of the arrow on
the LCD.
• Lower the Laser Detector if the arrow points down (Beeping
Sound).
• Raise the Laser Detector if the arrow points up (Beeping Sound).
5. The level marks on the sides of the Laser Detector are leveled
with the laser beam when the horizontal beam is displayed on the
LCD (Continuous Sound).
6. There are magnets on the upper and side parts of the detector.
Due to such magnets it is possible to attach it to the metallic surfaces.

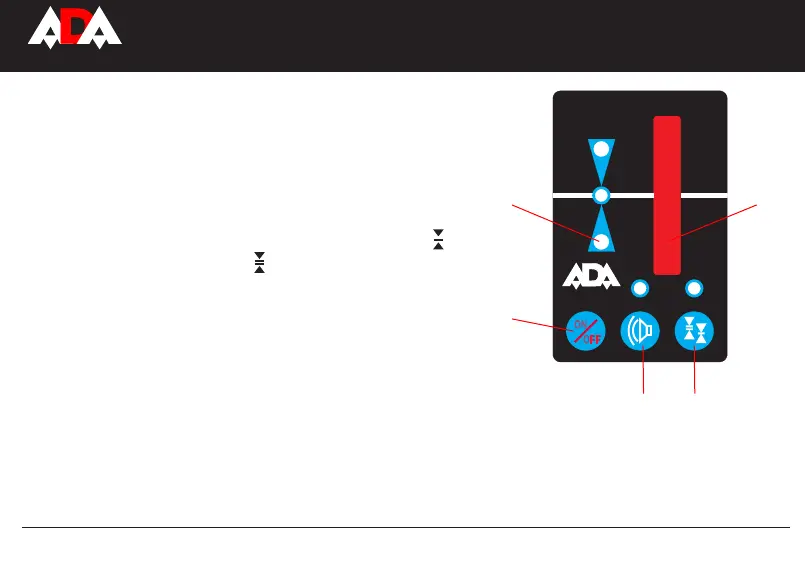

1. On/Off
2. On/Off sound
3. Accurate/rough mode
4. Position indicator
5. Receiver sensor
OFF
ON
INSTRUMENTS
1
4 5
2 3
