2. Speaker Placement
Surround set up
Speaker positioning for multi-channel stereo purposes is ideally based on
a circle with speakers placed at 0° (Center), 30° (Front Right), 110° (Rear
Right), 250° (Rear Left), 330° (Front Left), with the listener being the circle’s
center (Radius between 0.7-2.0 m). This ITU recommended configuration may
vary depending on the purpose of the control room (music or film). However,
it is recommended to create a symmetrical listening position with the front
side and surround speaker pointing to the listener’s ear.

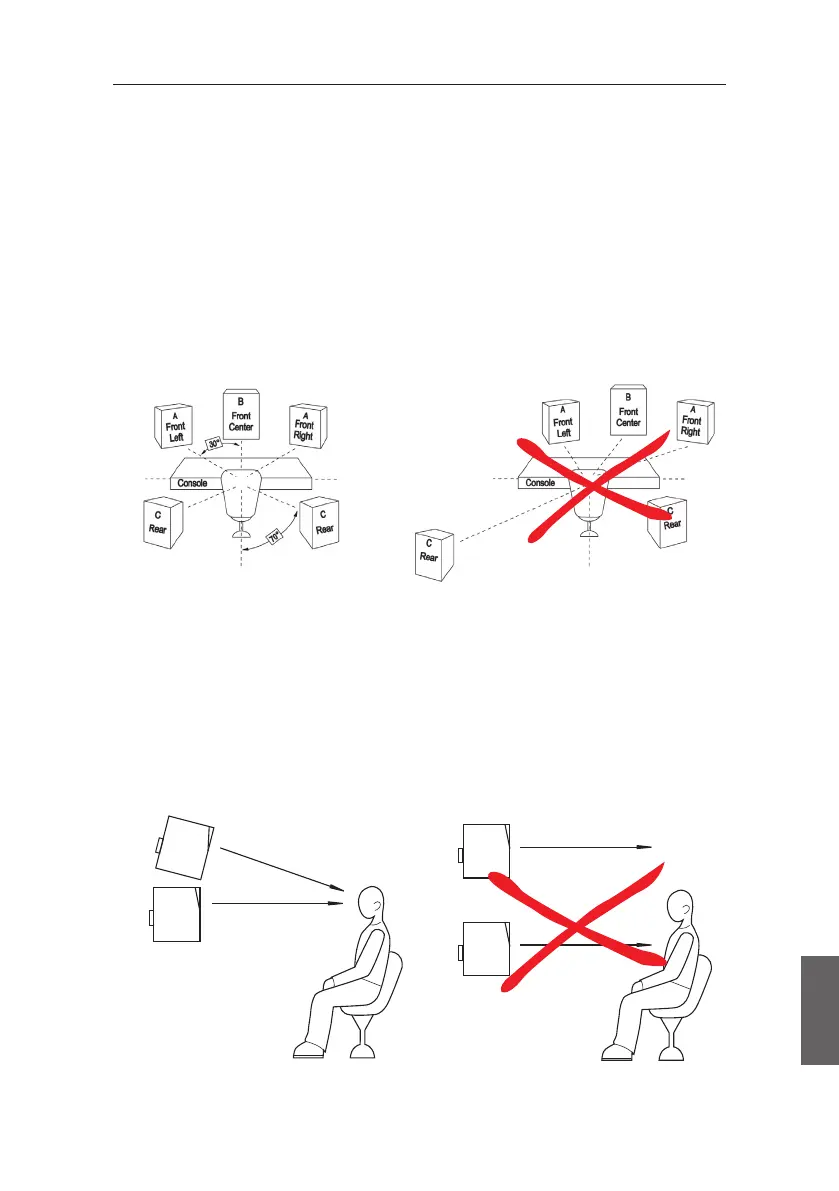

Figure 4: Surround set up
Tweeter at the height of ears
The Tweeter should be positioned approximately at the height of your ears. In
case you need to position the speaker in a significant lower or higher position,
the monitor should be angled accordingly.
Figure 5: Tweeter at height of ears / speaker angling
2.4
2.5
