Connecting Internal Ultra/Fast Narrow Devices
Connect internal Ultra/Fast Narrow SCSI devices that have stan-
dard 50-pin connectors to the 50-pin internal SE Narrow SCSI
connector. To do this, use a 50-pin internal Ultra Narrow SCSI
cable. Follow these steps to connect the devices:
Locate a 50-pin internal Ultra Narrow SCSI cable.

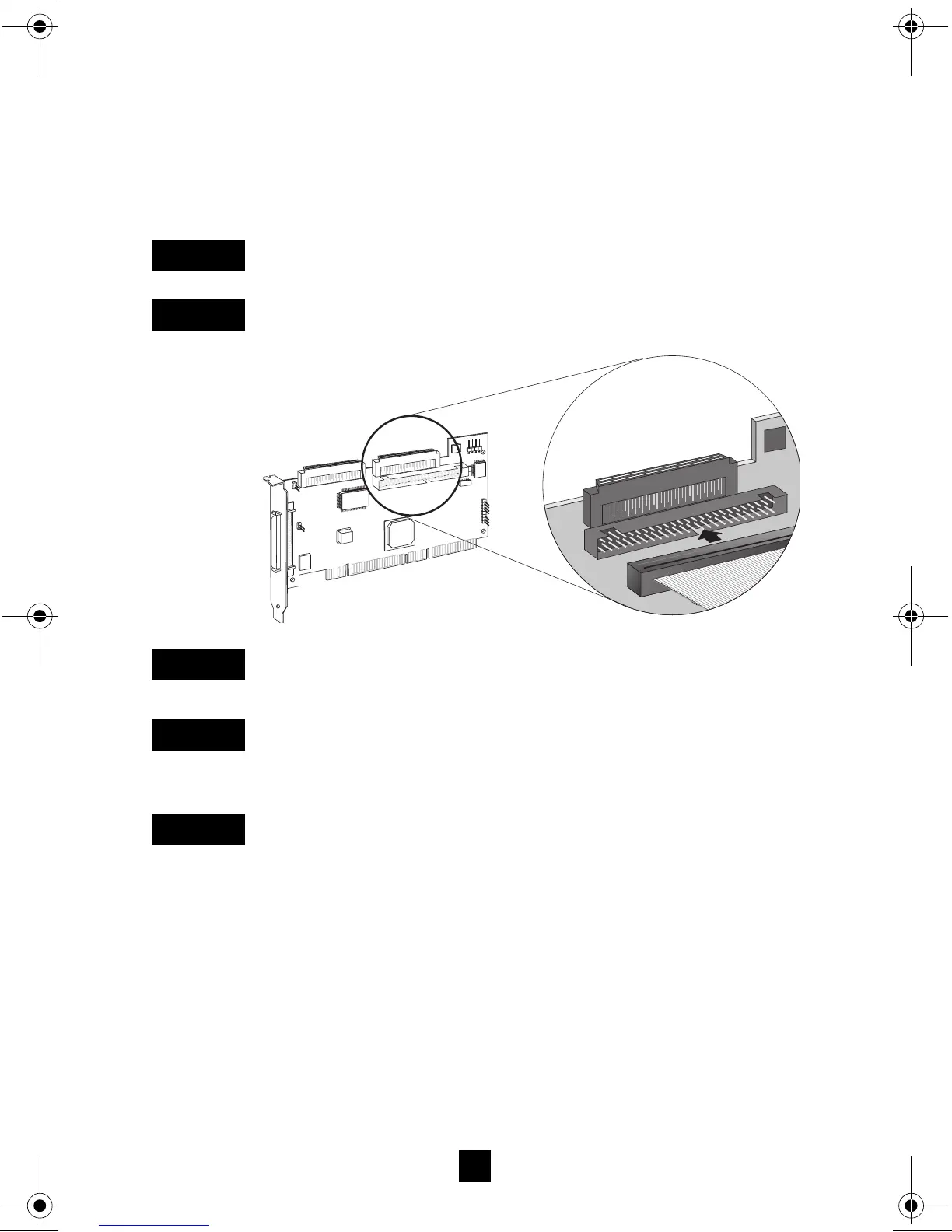

Plug one end of the cable to the 50-pin internal SE Narrow SCSI
connector on the Adaptec SCSI Card 29160.
Plug the other end of the cable to a terminated Ultra/Fast Narrow
SCSI device.
If you have other Ultra/Fast Narrow SCSI devices, attach them to
the connectors between the two ends of the cable. Be sure these
other devices are un-terminated.
Connect a power cable from your computer’s internal power sup-
ply to each internal device.
S
TEP
1
S
TEP
2
S
TEP
3
S
TEP
4
S
TEP
5
