Obtaining SCSI Cables
Fast/Wide
Ultra
Peripheral
(Terminated)
Fast/Ultra
Narrow
Peripheral
Fast/Ultra
Narrow
Peripheral
(Terminated)
High-density 68-pin Internal Ultra SCSI Cable
Standard 50-pin Internal
Ultra SCSI Cable
SCSI Card
2940UW Pro
Fast/Wide
Ultra
Peripheral
Fast/Wide
Ultra
Peripheral

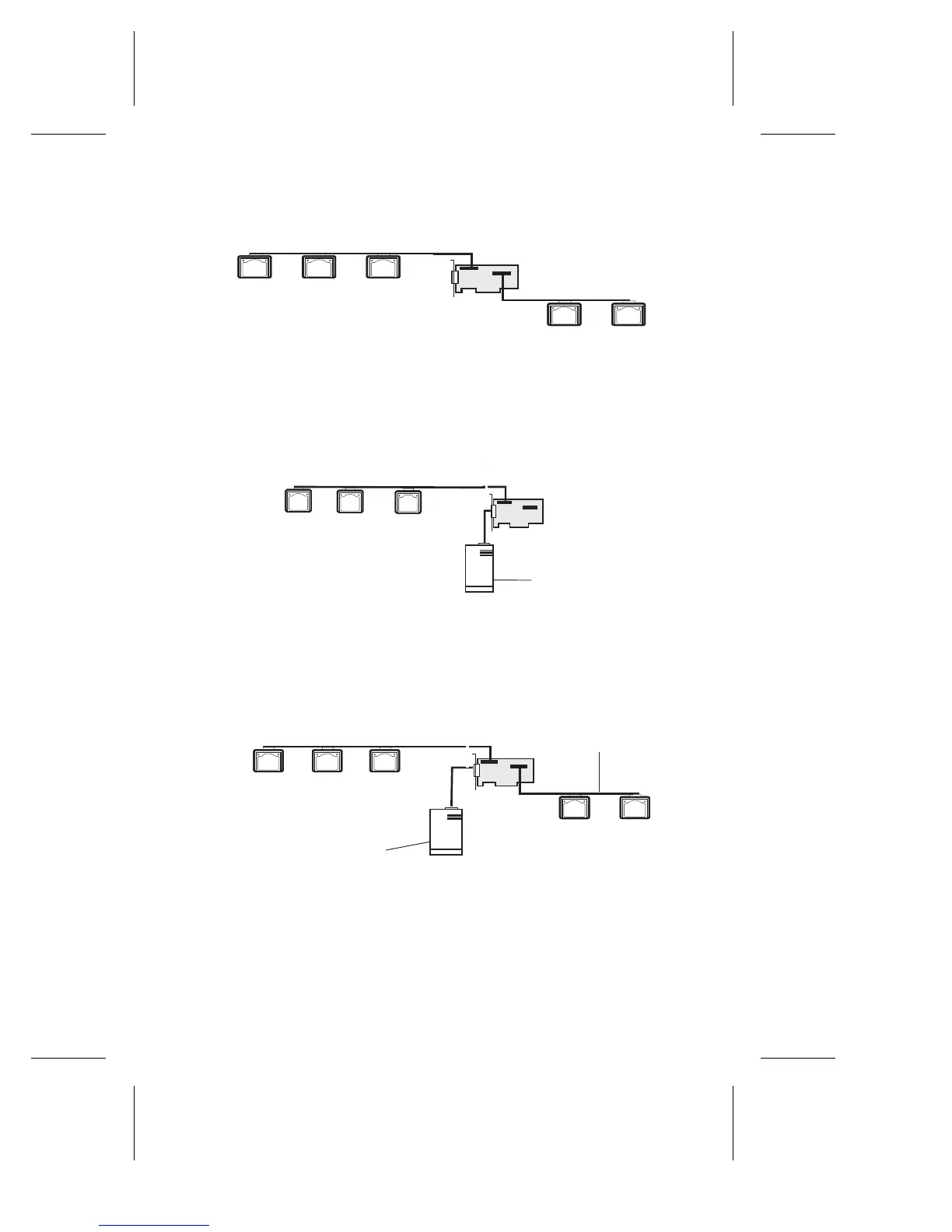

Figure 8. Connecting Fast/Wide Ultra and Fast/Narrow Ultra
Internal SCSI Device
Fast/Wide
Ultra
Peripheral
(Terminated)
Fast/Wide
Ultra
Peripheral
(Terminated)
68-pin External
Ultra SCSI Cable
High-density 68-pin Internal Ultra SCSI Cable
SCSI Card
2940UW Pro
Fast/Wide
Ultra
Peripheral
Fast/Wide
Ultra
Peripheral
Figure 9. Connecting Fast/Wide Ultra Internal and External SCSI Devices
Fast/Wide
Ultra
Peripheral
(Terminated)
Fast/Wide
Ultra
Peripheral
Fast/Ultra
Narrow
Peripheral
Fast/Ultra
Narrow
Peripheral
(Terminated)
H
igh-density 68-pin Internal Ultra SCSI Cable
Standard 50-pin Internal-to-
Ultra SCSI Cable
SCSI Card
2940UW Pro
68-pin External
Ultra SCSI
Cable
Fast/Wide
Ultra
Peripheral
Fast/Wide
Ultra
Peripheral
(Terminated)
Figure 10. Connecting Fast/Wide Ultra Internal and
External and Fast/Wide Ultra Narrow Internal SCSI Devices
