DLP-575
Page 4 of 5
6177-A
DS3MUX
DS3
NETWORK
DS1s
CUSTOMER
(LOW SPEED
MODULES)
RX
TX
TAU
:
:
:
:
6178-A
DS3MUX
DS3
NETWORK
DS1s
CUSTOMER
(LOW SPEED
MODULES)
RX
TX
TAU
:
:
:
:

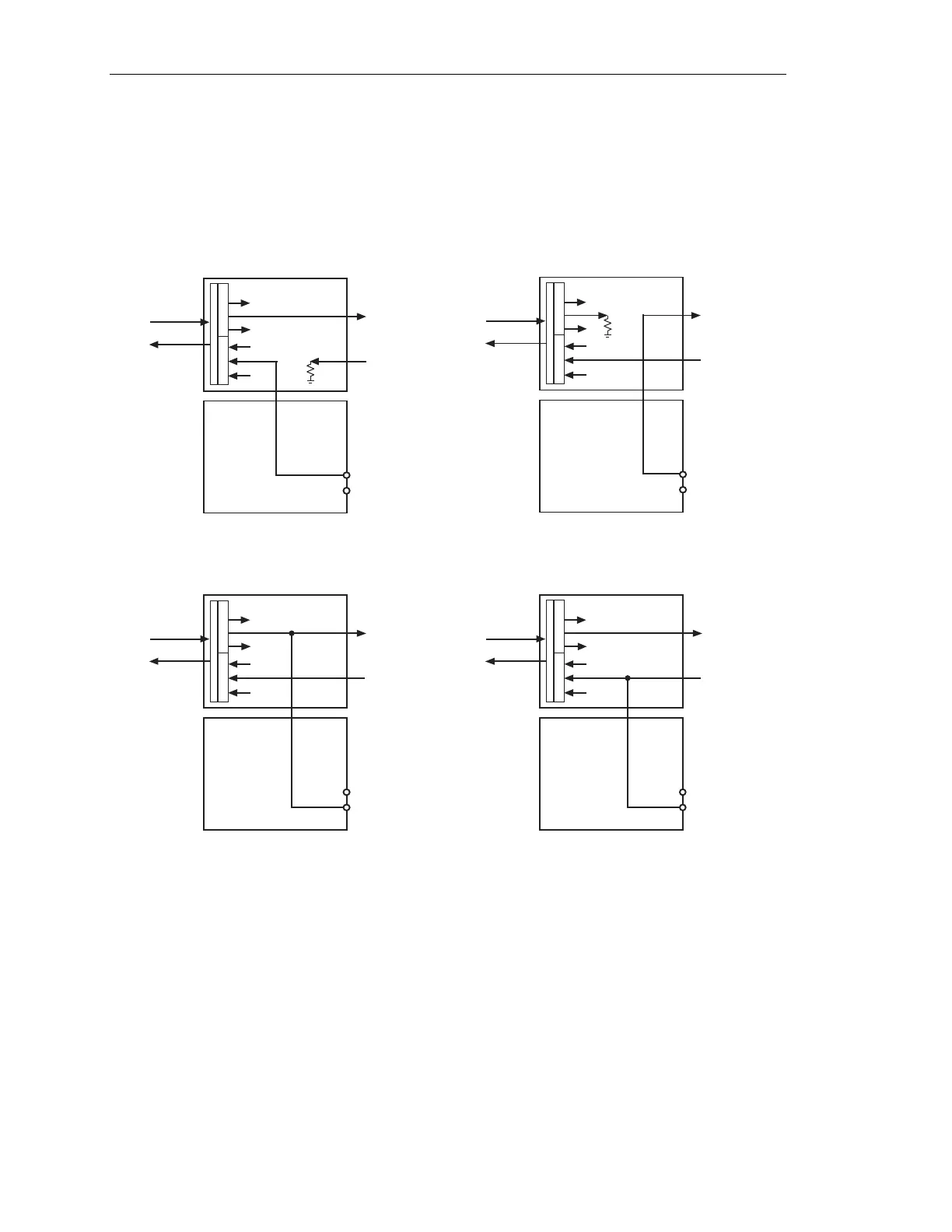

Figure 575-3a. Drop: None/Insert: Network Figure 575-3b. Drop: None/Insert: Customer
6176-A
DS3MUX
DS3
NETWORK
DS1s
CUSTOMER
(LOW SPEED
MODULES)
RX
TX
TAU
:
:
:
:
6175-A
DS3MUX
DS3
NETWORK
DS1s
CUSTOMER
(LOW SPEED
MODULES)
RX
TX
TAU
:
:
:
:
Figure 575-3c. Drop: Network/Insert: None Figure 575-3d. Drop: Customer/Insert: None
Figure 575-3. TAU Drop/Insert Configurations
