Table 106-1. DS1 Signal Routing
DS1
SIGNAL
GROUP-
SLOT
NUMBER
DS1
SIGNAL
GROUP-
SLOT
NUMBER
DS1
SIGNAL
GROUP-
SLOT
NUMBER
DS1
SIGNAL
GROUP-
SLOT
NUMBER
1 1-1 8 2-4 15 4-3 22 6-2
2 1-2 9 3-1 16 4-4 23 6-3
3 1-3 10 3-2 17 5-1 24 6-4
4 1-4 11 3-3 18 5-2 25 7-1
5 2-1 12 3-4 19 5-3 26 7-2
6 2-2 13 4-1 20 5-4 27 7-3
7 2-3 14 4-2 21 6-1 28 7-4
Table 106-2. DS2 Signal Routing
DS2 SIGNAL
GROUP-SLOT
NUMBER
(WORKING)
GROUP-SLOT
NUMBER
(PROTECT)
1 1-1 1-3
2 2-1 2-3
3 3-1 3-3
4 4-1 4-3
5 5-1 5-3
6 6-1 6-3
7 7-1 7-3
LOW SPEED UNITS
HSW HSP TAU
APU
MPU
MXPMXW
1-31-1 2-1 2-3 3-1 3-3 4-1 4-3 5-1 5-3 6-1 6-3 7-1 7-3
1-41-2 2-2 2-4 3-2 3-4 4-2 4-4 5-2 5-4 6-2 6-4 7-2 7-4
HIGH SPEED UNITS
GROUP- NUMBERS 1 2 3 4567
1982-A

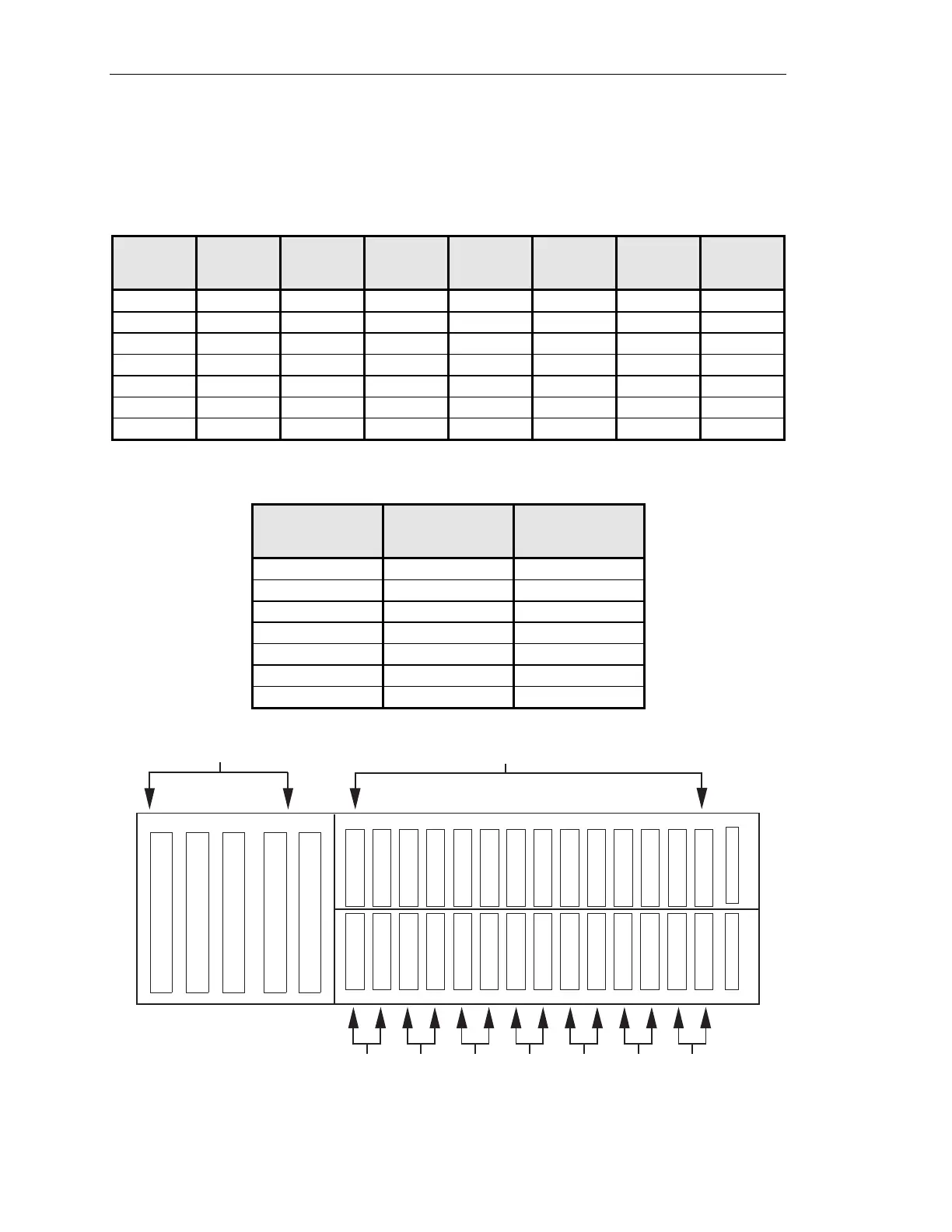

Figure 106-2. Slot Locations
