KEY
NEND means "PM information collected directly from
incoming T1 signals, both at local and remote sites".
10455-A
NEND
T1
T1
DLX DSX
DS1
DS1
DS1
DS1
NEND
TO NETWORK TO CUSTOMER
LOCAL
(SITE = -1)
REMOTE
(SITE = -2)

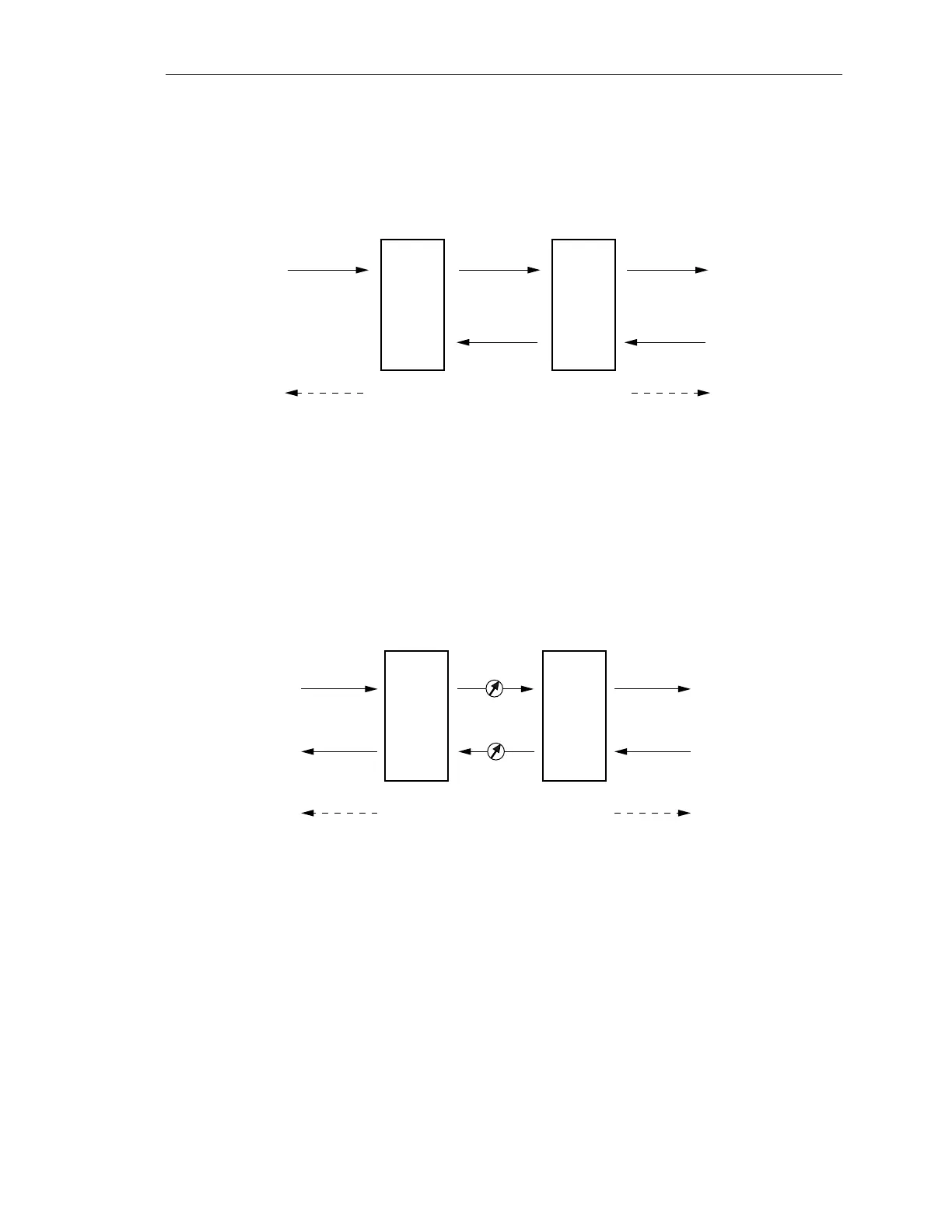

Figure 102-9. DLX NEND Locations
KEY
NEND means "PM information collected directly from
incoming T1 signals, both at local and remote sites".
10456-A
NEND
NEND
ODS2
QLX
OR
QFLC
OPTICAL DS2
OPTICAL DS2
TO NETWORK TO CUSTOMER
DS1
DS1
DS1
DS1
LOCAL
(SITE = -1)
REMOTE
(SITE = -2)
Figure 102-10. ODS2 NEND Locations
