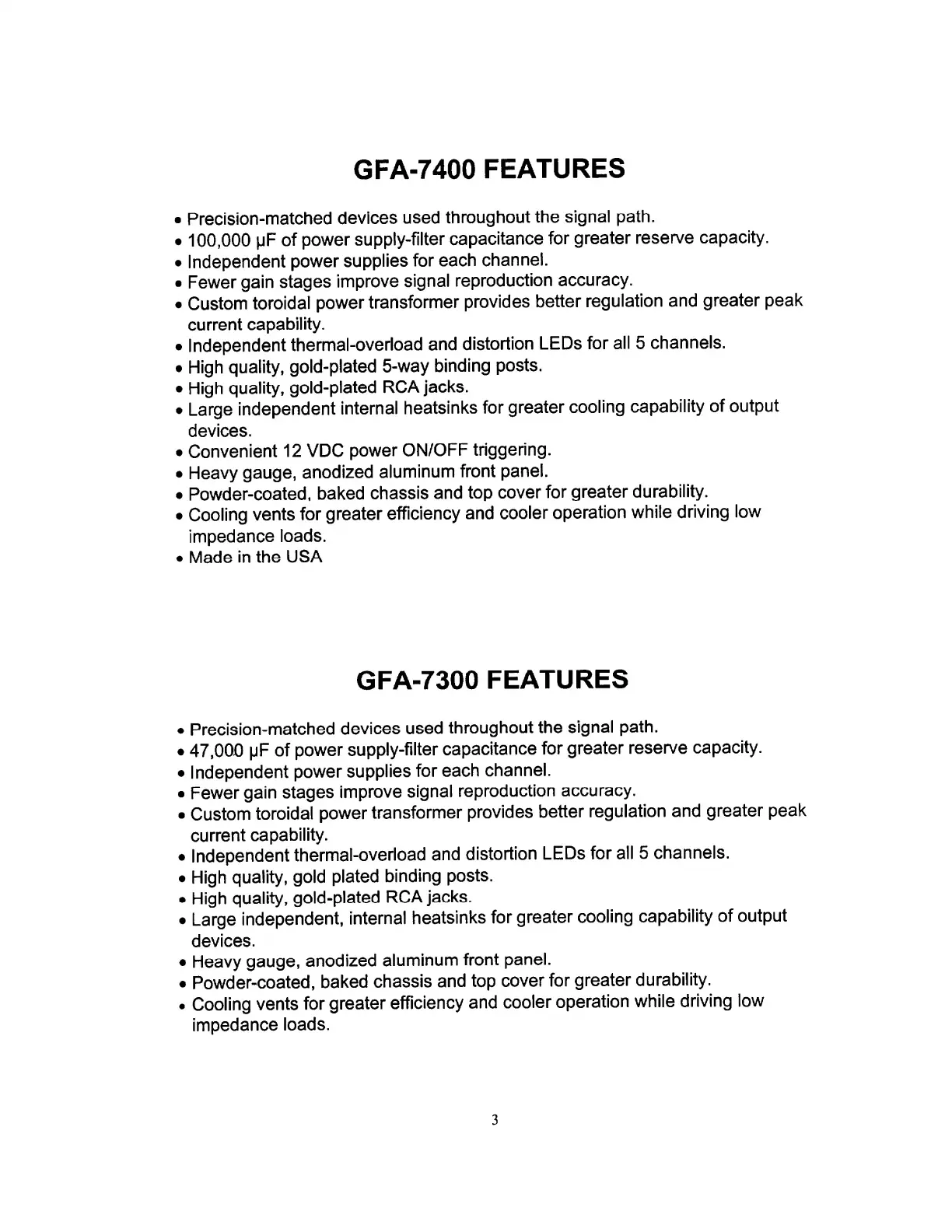

GFA-7400 FEATURES
• Precision-matched devices used throughout the signal path.
• 100,000 pF of power supply-filter capacitance for greater reserve capacity.
• Independent power supplies for each channel.
• Fewer gain stages improve signal reproduction accuracy.
• Custom toroidal power transformer provides better regulation and greater peak
current capability.
• Independent thermal-overload and distortion LEDs for all 5 channels.
• High quality, gold-plated 5-way binding posts.
• High quality, gold-plated RCA jacks.
• Large independent internal heatsinks for greater cooling capability of output
devices.
• Convenient 12 VDC power ON/OFF triggering.
• Heavy gauge, anodized aluminum front panel.
• Powder-coated, baked chassis and top cover for greater durability.
• Cooling vents for greater efficiency and cooler operation while driving low
impedance loads.
• Made in the USA
GFA-7300 FEATURES
• Precision-matched devices used throughout the signal path.
• 47,000 pF of power supply-filter capacitance for greater reserve capacity.
• Independent power supplies for each channel.
• Fewer gain stages improve signal reproduction accuracy.
• Custom toroidal power transformer provides better regulation and greater peak
current capability.
• Independent thermal-overload and distortion LEDs for all 5 channels.
• High quality, gold plated binding posts.
• High quality, gold-plated RCA jacks.
• Large independent, internal heatsinks for greater cooling capability of output
devices.
• Heavy gauge, anodized aluminum front panel.
• Powder-coated, baked chassis and top cover for greater durability.
. Cooling vents for greater efficiency and cooler operation while driving low
impedance loads.
3

Adcom GFA-7400 Specifications

Power

continuous power per channel into 8 ohms	100 watts
continuous power per channel into 4 ohms	150 watts
power consumption quiescent	96 VA
maximum power consumption	1440 VA
power consumption at 100 watts into 8 ohms	1165 VA
power supply voltage	115 VAC - 50/60 Hz

Distortion

IM distortion SMPTE at 8 ohms	≤ 0.075%
IM distortion SMPTE at 4 ohms	≤ 0.075%
IM distortion CCIF at 8 ohms	≤ 0.025%
IM distortion CCIF at 4 ohms	≤ 0.025%
THD + noise at 100 watts into 8 ohms at 20Hz	0.0012%
THD + noise at 100 watts into 8 ohms at 1kHz	0.0012%
THD + noise at 100 watts into 8 ohms at 10kHz	0.02%
THD + noise at 100 watts into 8 ohms at 20kHz	0.025%
THD + noise at 150 watts into 4 ohms at 20Hz	0.025%
THD + noise at 150 watts into 4 ohms at 1kHz	0.025%
THD + noise at 150 watts into 4 ohms at 10kHz	0.035%
THD + noise at 150 watts into 4 ohms at 20kHz	0.045%

Performance

frequency response at 1 watt into 8 ohms	+0, -0.25 dB
power bandwidth	1.5 Hz to 65 kHz
dynamic headroom into 4 ohms	2.5 dB
signal to noise ratio	≥ 110 dB
gain	29 dB
input sensitivity for 1 watt	0.1 volts
input sensitivity for 100 watts	1.0 volts
input impedance	50 kΩ
damping factor	≥ 400
rise time	4.5 µS

Weight and Dimensions

chassis dimensions	5” (127mm) x 17” (432mm) x 14” (355.6mm)
maximum dimensions	5 3/4” (146mm) x 17” (432mm) x 15” (381mm)
weight	42 lb. (19.1 kg)
packed weight	48 lb. (22.8 kg)
