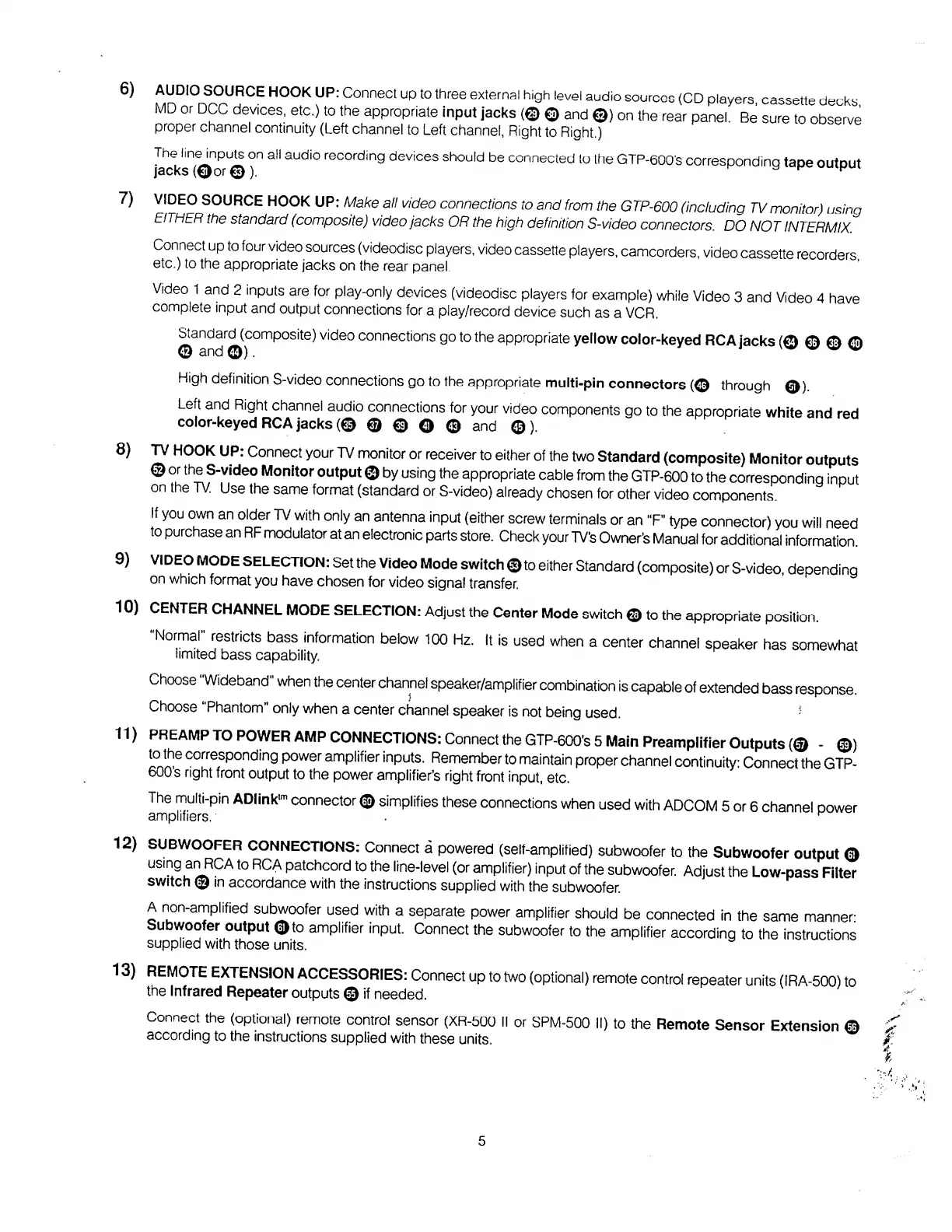

Adcom GTP-600 User Manual

6 )
^ DIO rf^ URCE H0 ° K UP: Connect up to three external hi 9 h tevel audio sources (CD players, cassette decks
MD or DCC devices, etc.) to the appropriate input jacks (© © and ©) on the rear panel. Be sure to observe
proper channel continuity (Left channel to Left channel, Right to Right.) ..
jacks^oS© T a " aUd ' ° reCOrd ' n 9 dev ' c es should be connected 10 ltie GTP-600 ' s corresponding tape output
7) VIDEO SOURCE HOOK UP: Make all video connections to and from the GTP-600 (including TV monitor) using
EITHER the standard (composite) video jacks OR the high definition S-video connectors. DO NOT INTERMIX
Connect up to four video sources (videodisc players, video cassette players, camcorders, video cassette recorders
etc.) to the appropriate jacks on the rear panel
Video 1 and 2 inputs are for play-only devices (videodisc players for example) while Video 3 and Video 4 have
complete input and output connections for a play/record device such as a VCR.
Standard (composite) video connections go to the appropriate yellow color-keyed RCA jacks (© © © ©
© and ©). w
8 )
9)
High definition S-video connections go to the appropriate multi-pin connectors (© through ©).
Left and Right channel audio connections for your video components go to the appropriate white and red
color-keyed RCA jacks (©©©©© and ©).
TV HOOK UP: Connect your TV monitor or receiver to either of the two Standard (composite) Monitor outputs
® °! th ® S ' vldeo Monitor output © by using the appropriate cable from the GTP-600 to the corresponding input
on the TV. Use the same format (standard or S-video) already chosen for other video components.
If you own an older TV with only an antenna input (either screw terminals or an "F” type connector) you will need
to purchase an RF modulator at an electronic parts store. Check your TVs Owner's Manual for additional information.
VIDEO MODE SELECTION: Set the Video Mode switch ©to either Standard (composite) or S-video, depending
on which format you have chosen for video signal transfer.
10) CENTER CHANNEL MODE SELECTION: Adjust the Center Mode switch © to the appropriate position.
"Normal" restricts bass information below 100 Hz. It is used when a center channel speaker has somewhat
limited bass capability.
Choose "Wideband" when the center channel speaker/amplifier combination is capable of extended bass response.
Choose “Phantom” only when a center channel speaker is not being used. !
11) PREAMP TO POWER AMP CONNECTIONS: Connect the GTP-600's 5 Main Preamplifier Outputs (© - ©)
to the corresponding power amplifier inputs. Remember to maintain proper channel continuity: Connect the GTP-
600 s right front output to the power amplifier’s right front input, etc.
The multi-pin ADIink"" connector © simplifies these connections when used with ADCOM 5 or 6 channel power
amplifiers. . ^
12) SUBWOOFER CONNECTIONS: Connect a powered (self-amplified) subwoofer to the Subwoofer output ©
using anRCA to RCA patchcord to the line-level (or amplifier) input of the subwoofer. Adjust the Low-pass Filter
switch © in accordance with the instructions supplied with the subwoofer.
A non-amplified subwoofer used with a separate power amplifier should be connected in the same manner-
Subwoofer output ©to amplifier input. Connect the subwoofer to the amplifier according to the instructions
supplied with those units.
13) REMOTE EXTENSION ACCESSORIES: Connect up to two (optional) remote control repeater units (IRA-500) to
the Infrared Repeater outputs © if needed.
Connect the (optional) remote control sensor (XR-500 II or SPM-500 II) to the Remote Sensor Extension ©
according to the instructions supplied with these units.
5
