Adcom GTP-600 - Remote Control and Quick Start; Initial Setup and Connections

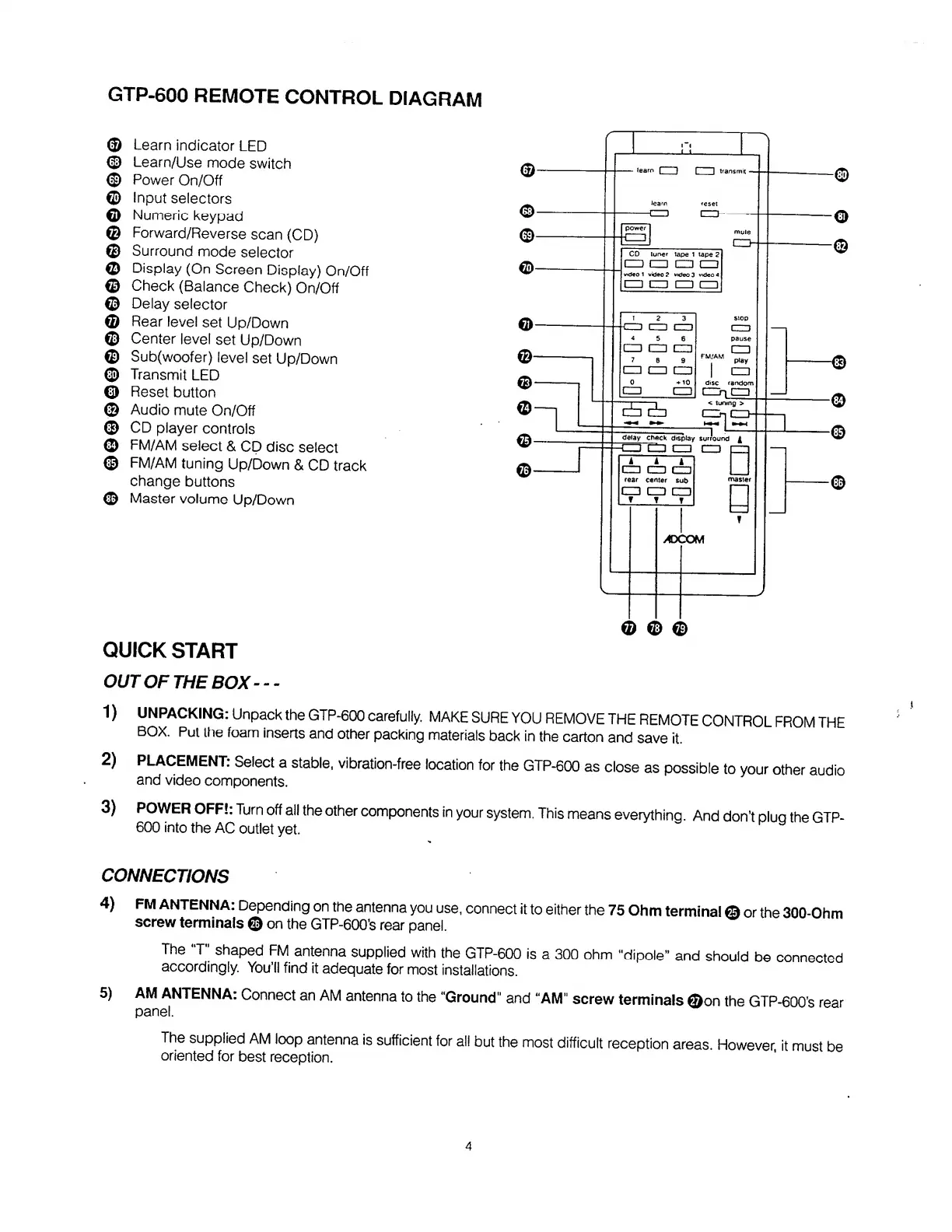

GTP-600 REMOTE CONTROL DIAGRAM
© Learn indicator LED
© Learn/Use mode switch
© Power On/Off
© Input selectors
© Numeric keypad
© Forward/Reverse scan (CD)
© Surround mode selector
© Display (On Screen Display) On/Off
© Check (Balance Check) On/Off
© Delay selector
© Rear level set Up/Down
© Center level set Up/Down
© Sub(woofer) level set Up/Down
© Transmit LED
CD Reset button
© Audio mute On/Off
© CD player controls
© FM/AM select & CD disc select
© FM/AM tuning Up/Down & CD track
change buttons
© Master volume Up/Down
©-
©-
©-
©-
©
©
©
©
©
©
D—I
- learn □
mule
c=>
CD tuner tape 1 tape 2
c=] CZI CZJ CD
video 1 video 2 video 3 video 41
□ □□□ :
CD CD CD
7 B 9
CD
0
CD
CD
+ 10
pause
CD
disc random
CP hCD
-1 < tunin
CD (- {
—« »» _|j
delay che ck display surround ^
H-1 L_D CD CD
1 1
i
CD CD
1_1
rear center
sub
CD CD CD
LI_I ™
T
□
master
B
/CCOM
-©
©
©
-©
©
©
©
QUICK START
© © ©
OUT OF THE BOX---
1) UNPACKING: Unpack the GTP-600 carefully. MAKE SURE YOU REMOVE THE REMOTE CONTROL FROM THE
BOX. Put the foam inserts and other packing materials back in the carton and save it.
2) PLACEMENT: Select a stable, vibration-free location for the GTP-600 as close as possible to your other audio
and video components.
3) POWER OFF!: Turn off all the other components in your system. This means everything. And don't plug the GTP-
600 into the AC outlet yet.
CONNECTIONS
4) FM ANTENNA: Depending on the antenna you use, connect it to either the 75 Ohm terminal © or the 300-Ohm
screw terminals © on the GTP-600’s rear panel.
The “T" shaped FM antenna supplied with the GTP-600 is a 300 ohm "dipole” and should be connected
accordingly. You’ll find it adequate for most installations.
5) AM ANTENNA: Connect an AM antenna to the “Ground" and “AM" screw terminals ©on the GTP-600’s rear
panel.
The supplied AM loop antenna is sufficient for all but the most difficult reception areas. However, it must be
oriented for best reception.
4
