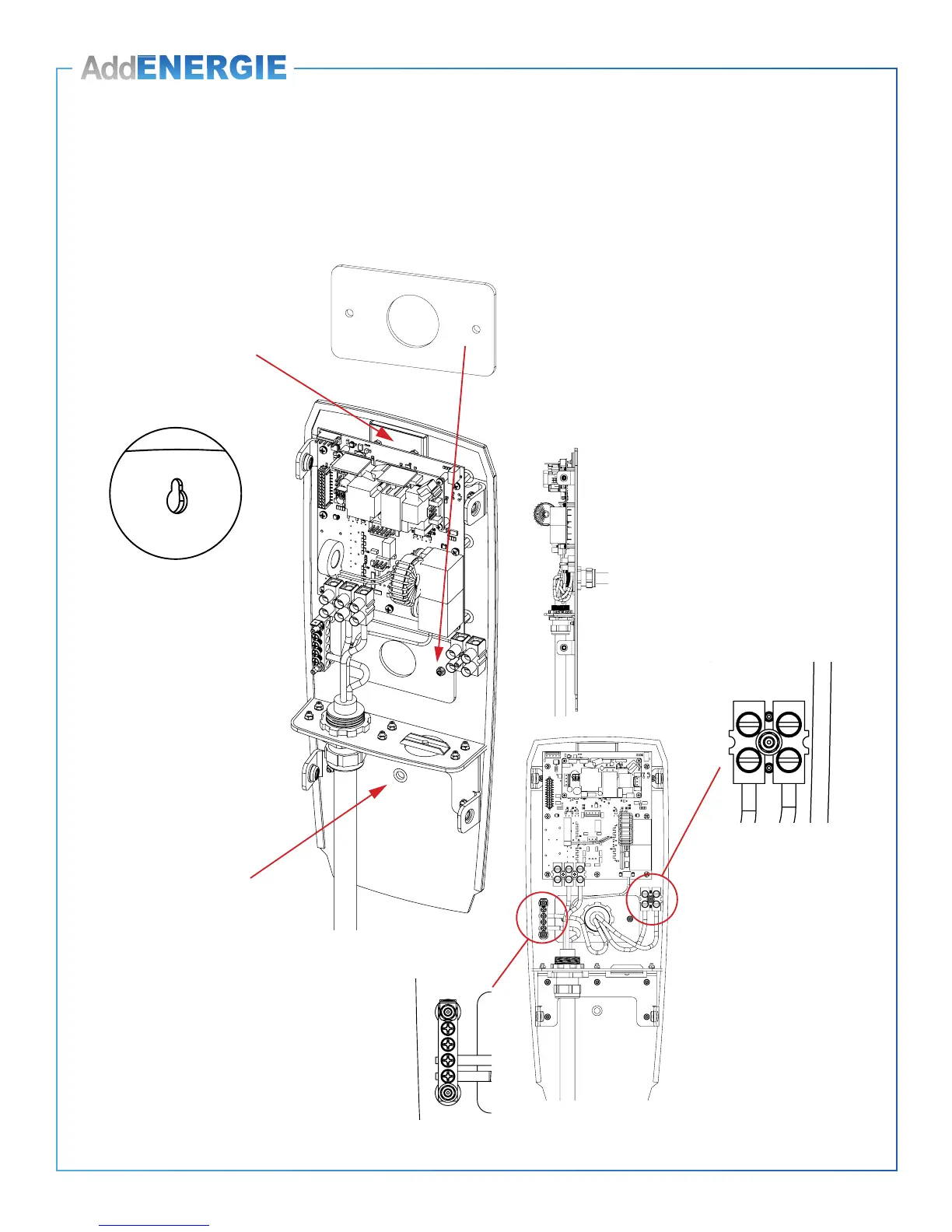

Power cable entry from the back
Wall or Post Mounting
• IMPORTANT, never
remove the protection
plate of the keyhole.
• Remove the plate to avoid the splatter of
particles in the equipment.
• Punch a hole of the appropriate diameter to
install the cable connector.
• Replace the plate in place.
• Install the cable connector
to the punched hole, then
the cable. Make sure the
conductors are long enough to
reach the terminal block.
• Connect two power
conductors (L1 and
L2) and the ground
conductor (GND)
• The grounding
conductor shall be
provided with green
or green and yellow
insulation.
• Attach the head base to
the wall or the post with
appropriate type of anchors
• Hang the head base to an
anchor (previously xed
to the wall or post) via
the keyhole at the top.
NEVER REMOVE THE
PROTECTION PLATE
• Complete the mounting of
the head base by installing
an anchor through the
bottom hole.
L1 L2
GND
