L1 L2
GND
Power cable entry under the station

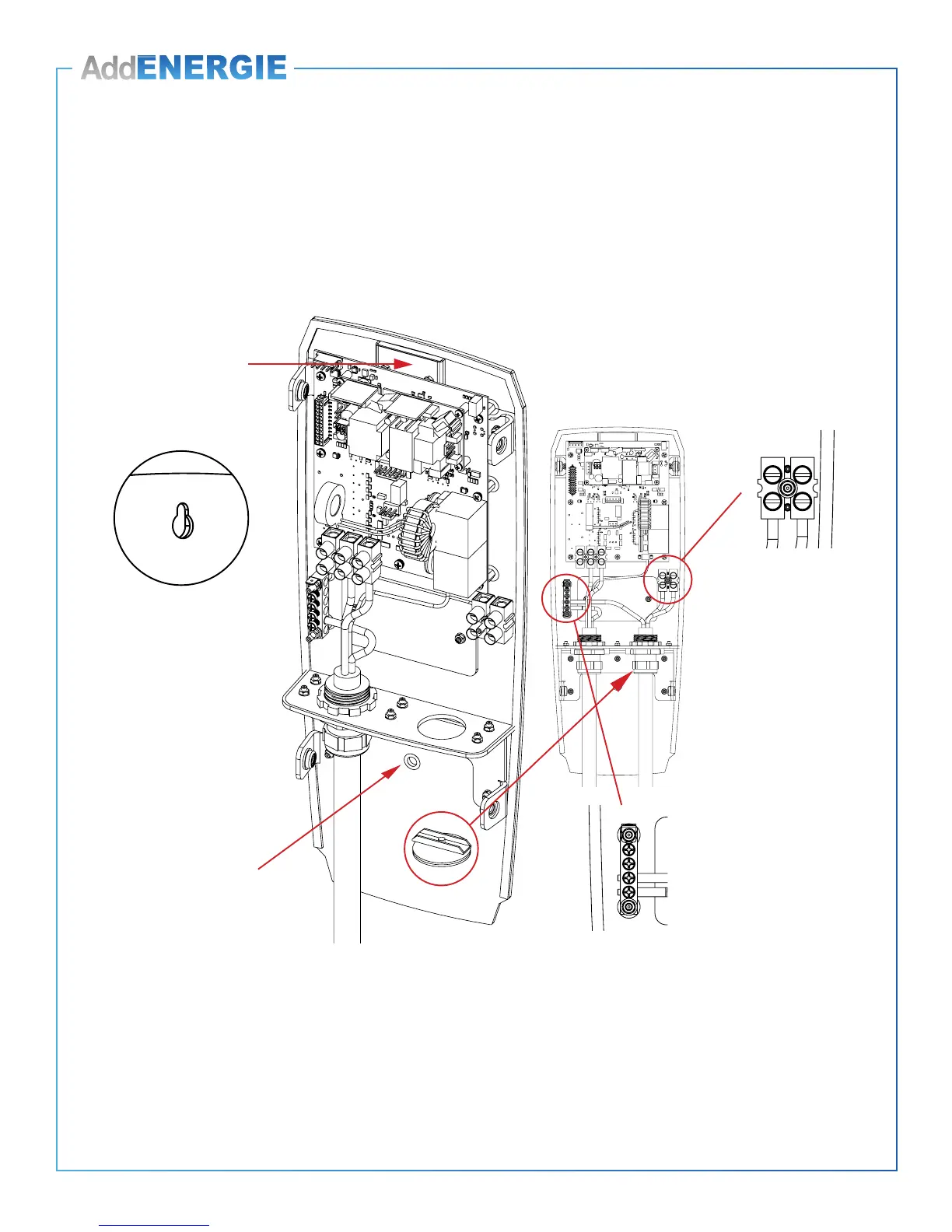

Wall or Post Mounting
• Remove the hole cover and attach the
cable connector to the hole, then insert the
power cable. Make sure the conductors are
long enough to reach the terminal block.
• Connect two power
conductors (L1 and
L2) and the ground
conductor (GND)
• The grounding
conductor shall be
provided with green
or green and yellow
insulation.
• Attach the head base to
the wall or the post with
appropriate type of anchors
• Hang the head base to an
anchor (previously xed
to the wall or post) via
the keyhole at the top.
NEVER REMOVE THE
PROTECTION PLATE
• Complete the mounting of
the head base by installing
an anchor through the
bottom hole.
• IMPORTANT, never
remove the protection
plate of the keyhole.
• Avoid installing the EVSE in bad weather
conditions.
