AddSecure Tor V, PDK-11606 6
4 INSTALLATION
The alarm transmitter is always to be mounted on a fixed, flat surface before it is connected.
There must be sufficient space to connect the antenna and cables to the alarm transmitter.
4.1 Fire alarm installation (EN 54-21:2006)
For a fire alarm installation, it’s easiest to mount the alarm transmitter inside the control panel.
This is so that the installation complies with EN 54-21:2006. Attach the included sticker with
the marking EN 54-21 to the outside of the encasement so that it can be read after the
installation is complete.
4.2 Mounting

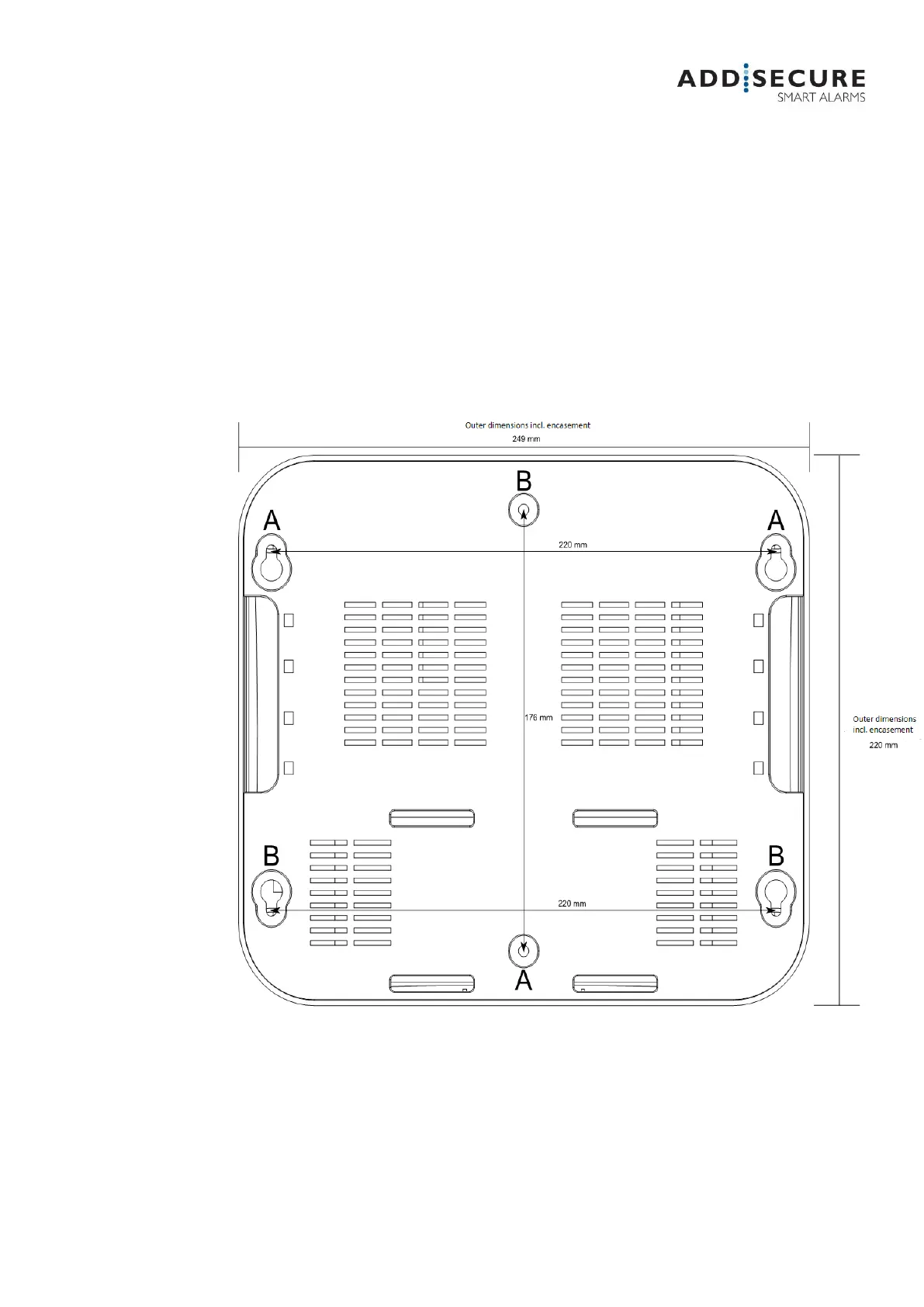

Mount the base using three screws using either holes A or B.
