Operation A-dec 500 Assistant's Instrumentation
Autoclavable HVE and Saliva Ejector Asepsis
The table shows the steps for HVE and saliva ejector asepsis.
Table 1 Steps for HVE and Saliva Ejector Asepsis
Step |Action
1 Remove the tip from the valve body.
NOTE: Turn OFF the central vacuum before disconnecting the HVE or saliva ejector.
> To remove the HVE or saliva ejector body, separate the body: from the tubing by pulling it apart
at the tailpiece.
3. [Remove the control valve by pushing it out of the HVE or saliva ejector valve body.
A Clean and rinse the valve body and control valve using a mild detergent, water, and the brushes
that have been provided. Allow the instruments to dry completely.
5 Heat sterilize the valve body and control valve for 6 minutes using either of the following
methods: steam autoclave, or chemical vapor (275°F [135°C] maximum temperature).
Apply a light coat of A-dec silicone lubricant on the O-ring seals of the control valve.
6 |CAUTION: Use only silicone lubricant when lubricating instrumentation O-rings.
Petroleum products will cause permanent damage to the O-rings.
7 |Reinstall the control valve in the valve body, and the body on the tubing tailpiece.
8 |Operate the HVE and the saliva ejector valves several times to verify that they rotate smoothly.
How to Sterilize the HVE Tip
It is recommended that the stainless steel tips used on the HVE be heat sterilized between patients using
either of the following methods: steam autoclave, or chemical vapor (275°F [135°C] maximum tempera-
ture; four minutes at temperature). If you are using disposable HVE tips, be sure to replace them with
new tips between patients.
The table shows the steps for sterilizing the HVE tip.
Table 2 Steps for Sterilizing the HVE Tip
Step |Action
1 [Remove the HVE tip from the HVE valve body.
> Clean and rinse the HVE tip using a mild detergent and water, then allow the tip to
completely dry.
3 |Sterilize the HVE tip using one of the recommended methods.
NOTE: A-dec HVE Cannula Opening: Standard A-dec HVE — 0.435" + 0.006" (11.05 + 0.15 mm). A-dec
15 mm HVE — .592" (14.8 mm). If not using A-dec HVE Tips, select a tip that is compatible with
your HVE cannula opening.
A-dec Saliva Ejector Cannula Opening: A-dec Saliva Ejector — 0.265 + 0.006" (6.73 + 0.15 mm)
Select a tip that is compatible with your saliva ejector cannula opening.
Page 4 a dec 86.0603.00
A-dec 500 Assistant’s Instrumentation
How to Maintain the Solids Collector
The solids collector aids in preventing solids from
entering the central vacuum system.
At least twice a week, discard and replace the solids
collector screen. This is necessary to ensure proper
suction from the central vacuum, and to maintain
proper treatment room asepsis. For replacement
screens, contact your Authorized A-dec Dealer and
reference Pinnacle P/N 5512.
Follow these | To perform this
steps... function...
Turn off vacuum, or if vacuum
is on, open the HVE control
valve to facilitate removal of
the solids collector cap.
Remove the screen from the
collector.
The solids collector screen is
disposable. Discard following
your local regulations.
CAUTION: Do not empty the
screen into your
cuspidor.
Doing so could
plug the drain.
Insert a new screen in the
3 solids collector and install
the cap.
Limit Switch
If activated, the support link limit switch will
interrupt the base down motion and reverse the
chair to prevent damage.
Solids Collector

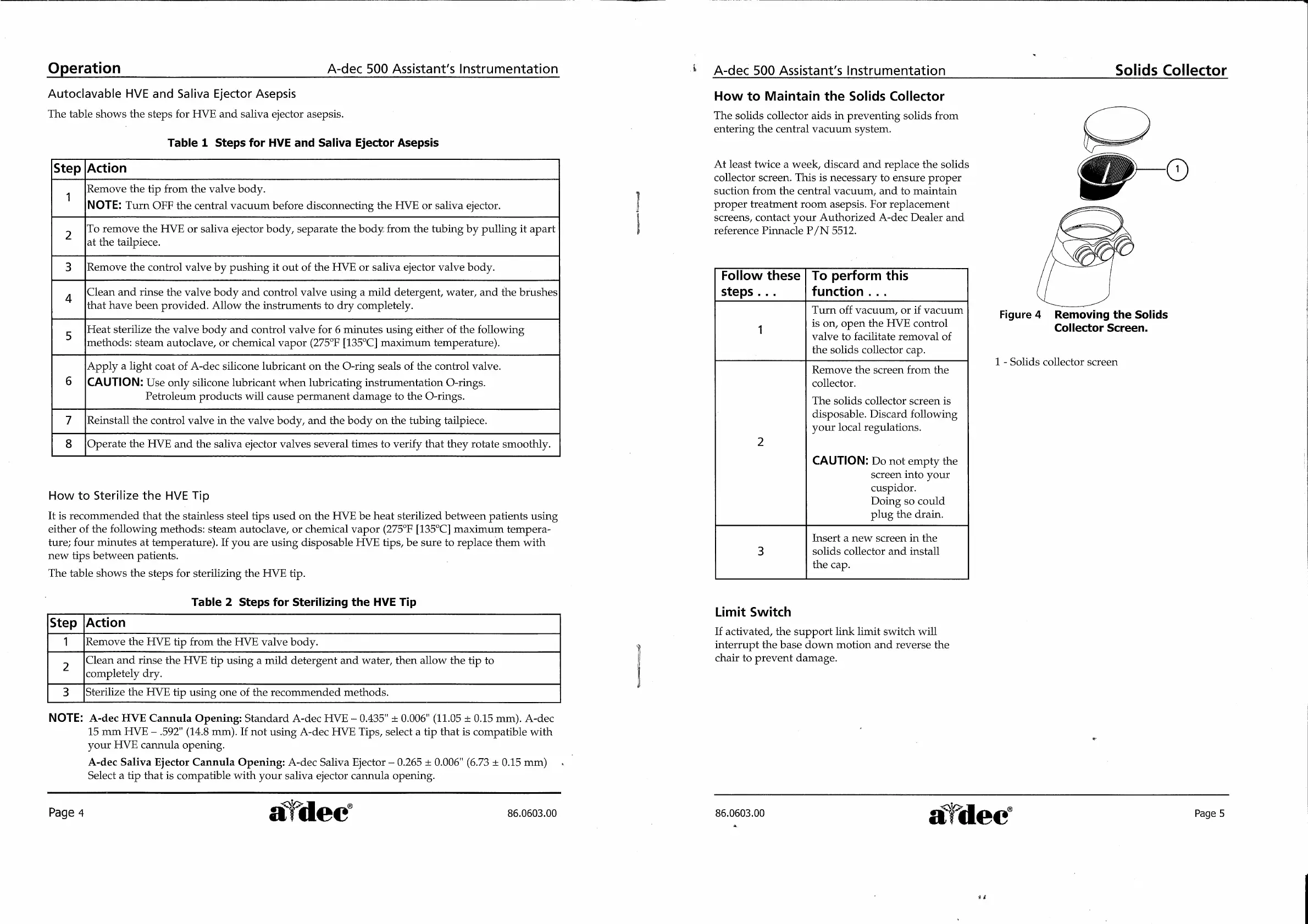

Figure 4 Removing the Solids
Collector Screen.
1 - Solids collector screen
86.0603.00 ide
a,
Page 5
