Adec 6300 - Drill Holes and Mount Plate

A-dec 6300 Ceiling-Mount Dental Light Installation Guide
85.0521.00 Rev R 5
4. Drill the 3/16" (4.8 mm) diameter
mounting holes, the 5/8" (15.8 mm) hole
for the data line, and the
1-1/4" (31.7 mm) hole for power.
5. Use a Phillips head screwdriver to
remove the junction box cover before
mounting the plate to the ceiling. Use a
7/16" socket and ratchet to mount the
plate to the ceiling with the lag screws
from the kit.

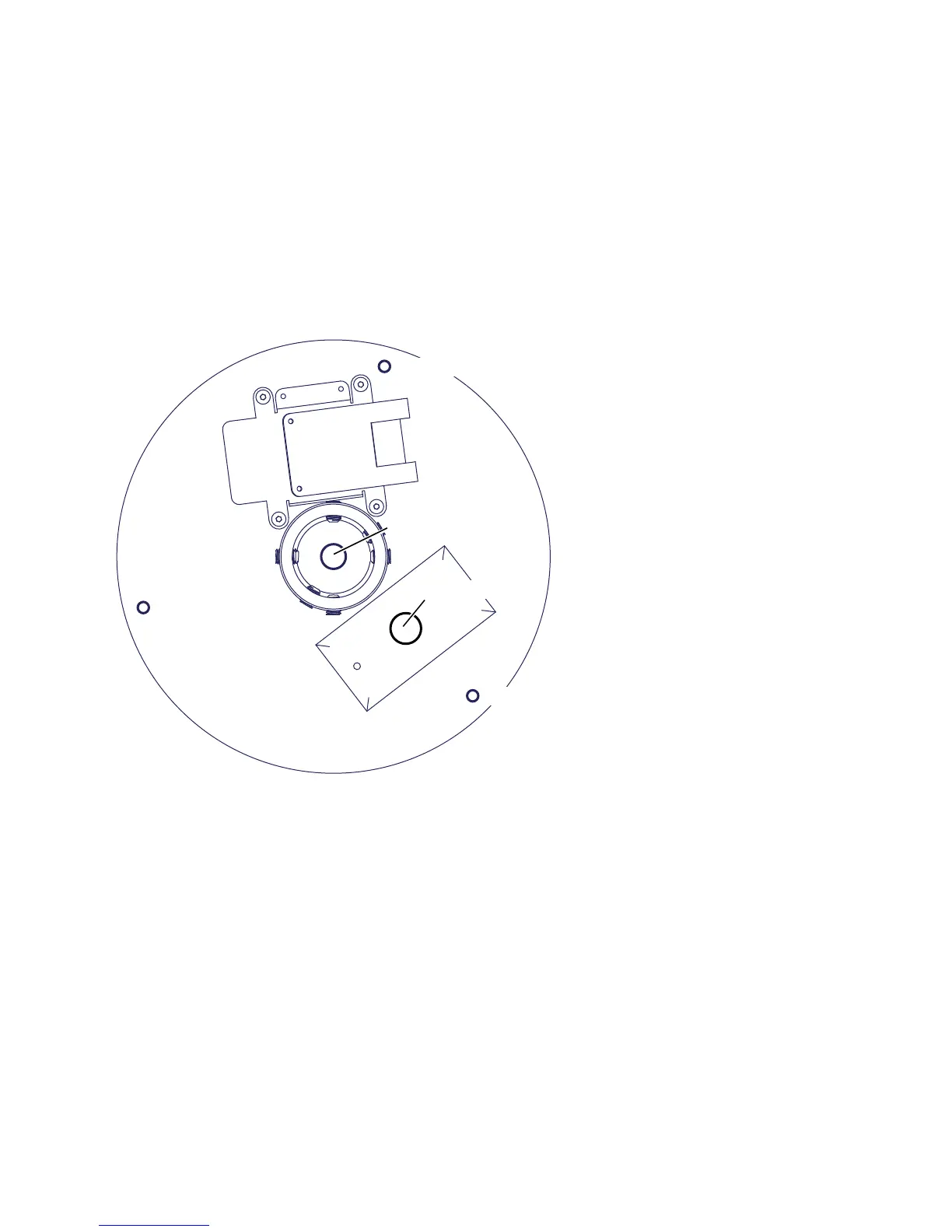

Figure 6. Hole Sizes
3/16" (4.8 mm)
3/16" (4.8 mm)
3/16" (4.8 mm)
1-1/4" (32 mm)
5/8" (16 mm)
