Adjustments
Refer to the Assembly Drawing on the last page to find parts referenced below.
Moving the Tailstock and Tool Carriage
1. Make sure Lathe Power Line (1) is disconnected.
2. Loosen the Nut (61) for the Tool Carriage (35), or the Nut (54) to move the Tailstock
(39).
3. Slide the Tool Carriage or the Tailstock to the appropriate position and then retighten
the corresponding nut.
Removing the Tip
1. Make sure Lathe Power Line (1) is disconnected.
2. Remove the Hand wheel (43) by loosening the Locking Screw (42).
3. Unscrew the Tip (37) from the Tailstock (39)
Removing the Lathe Tip

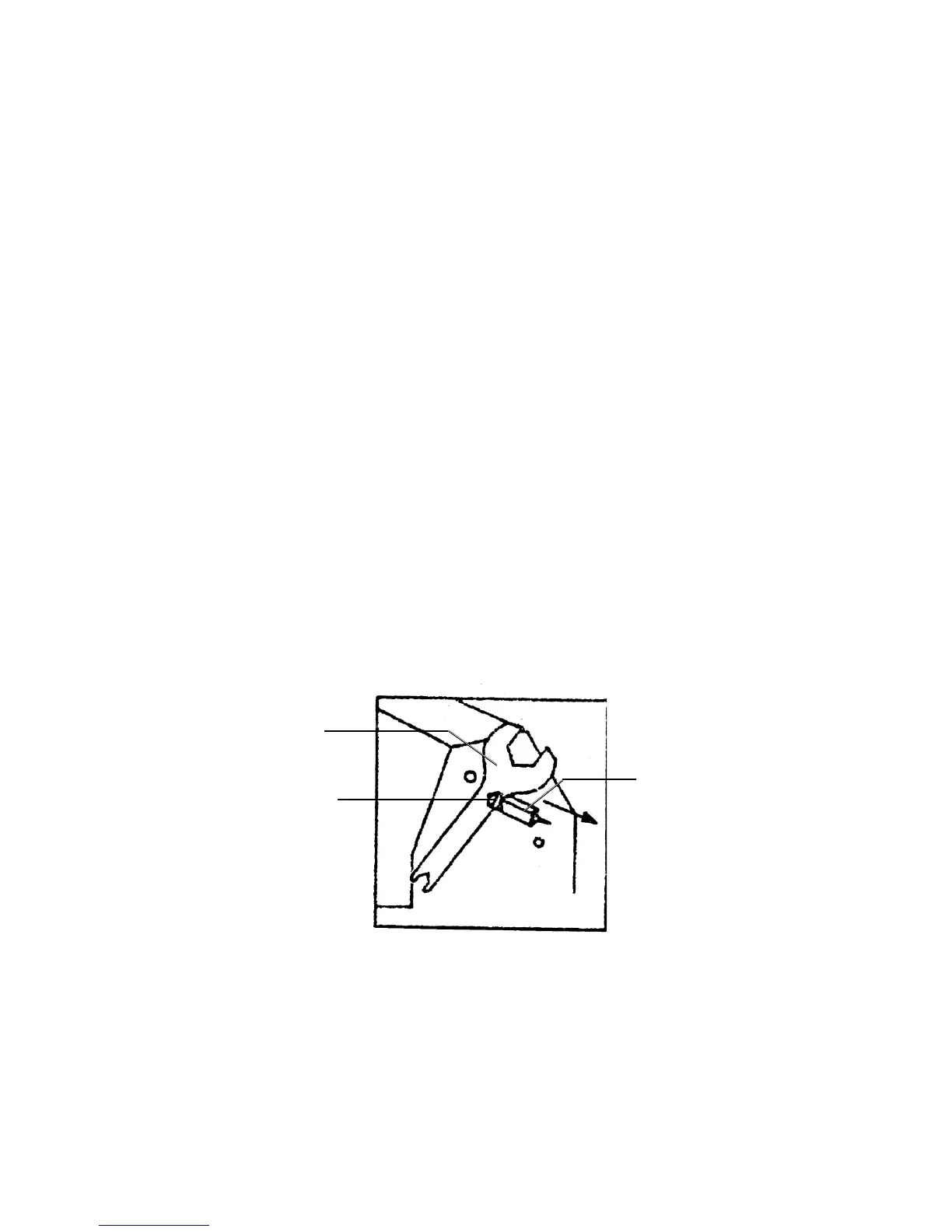

1. Place the side fitting of the Tool Handle (22) onto the flats of the Main Shaft (27).
2. Attach an appropriately sized wrench to the Lathe Tip (28).
3. While holding the Tool Handle (22) in place, turn the Lathe Tip counterclockwise.
Remove the loosened Lathe Tip from the Main Shaft (27).
Tool Handle (22)
Main Shaft (27)
Lathe Tip (28)
Attaching the Face plate
1. After the Lathe Tip has been removed (see above), take the Face plate (29) and spin
it clockwise onto the Main Shaft (27).
2. Hold the Tool Handle (22) in place on the flats of the Main Shaft, while tightening the
Chuck by hand.
