Main Shaft (27)
Face plate (29)

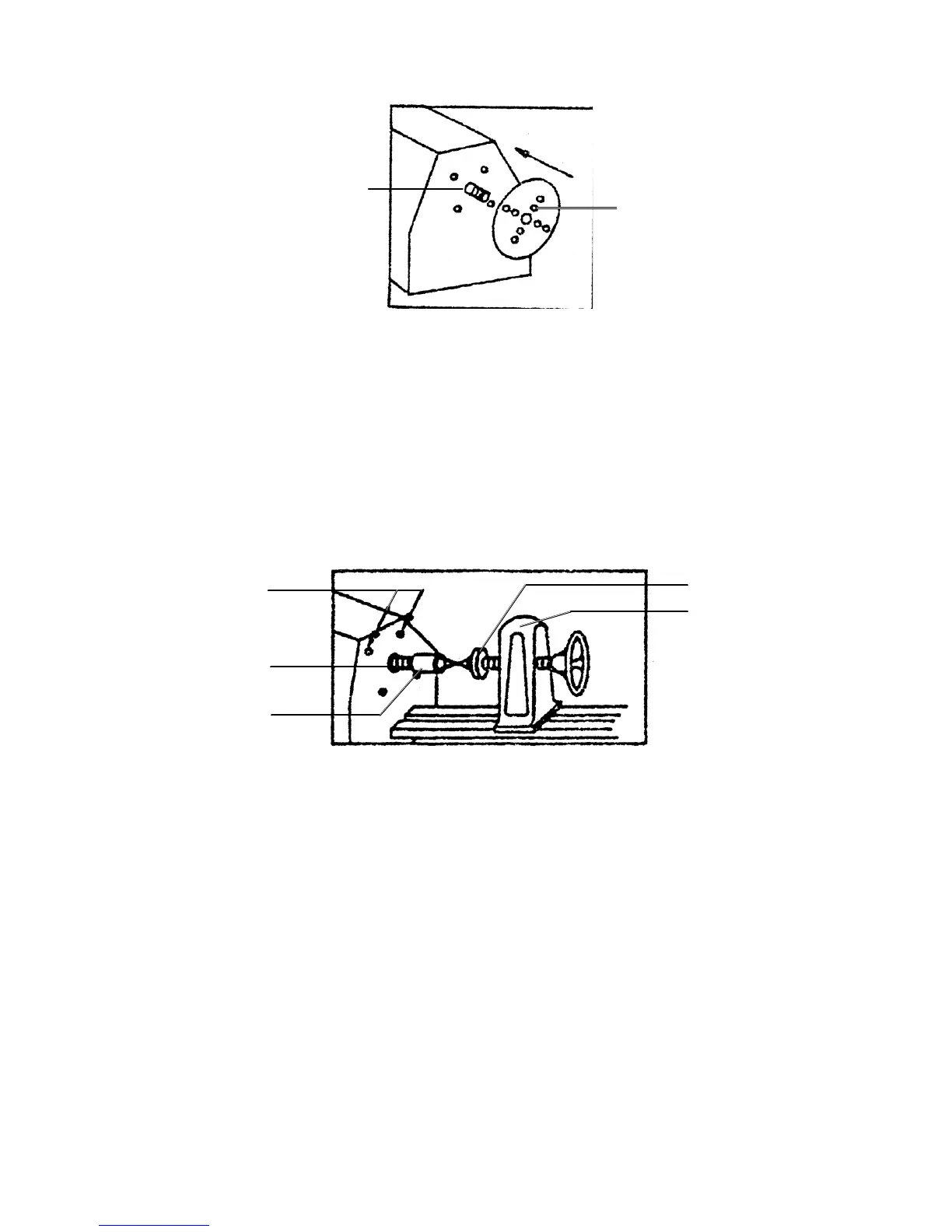

Aligning the Centers
1. Move the Tailstock (39) to the Lathe Tip (28).
2. Lock the Tailstock down.
3. Loosen the four screws (26), around the Main Shaft (27).
4. Swing the Main Shaft forward so the Lathe Tip (28) and the Tip (37) are in line. Then
tighten the Screws (26).
Screws (26)
Tip (37)
TailStock (39)
Main Shaft (27)
Lathe Tip (28)
Changing Speeds
Refer to photo and illustration on the next page.
1. Make sure the Power Switch (30) is off and the Power Line (1) is unplugged.
2. Remove the two Screws (3) from the Protecting Cover (11). Remove the Protecting
Cover.
3. Loosen the Motor Screw (14) this will loosen the Belt Pulley (13).
4. Raise the lower Belt Pulley (13) this will loosen the Driving Belt (12).
