SET COMMUNICATION:
This section define the fundamental communication parameters of two buses,
PROFIBUS and EtherNet/IP.
By Pressing the “Set Communication” button from the main window for SW67643
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The means of the fields for “PROFIBUS” are:
In the field “ID Device” the address of the PROFIBUS side is defined;
In the field “Baudrate” the data rate of the PROFIBUS side is defined (fixed to
“Auto Baudrate”);
In the field “Number Byte IN” the number of Input bytes of PROFIBUS is
defined (at maximum it is possible to use 244 byte);
In the field “Number Byte OUT” the number of Output bytes of PROFIBUS is
defined (at maximum it is possible to use 244 byte).
The means of the fields for “EtherNet/IP Master” are:
In the fields “IP ADDRESS” the IP address for EtherNet/IP side of the converter
is defined;
In the fields “SUBNET Mask” the SubNet Mask for EtherNet/IP side of the
converter is defined;
In the fields “GATEWAY” the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field “Port” the port used for EtherNet/IP communication is defined. The
port has a fixed value of 44818.

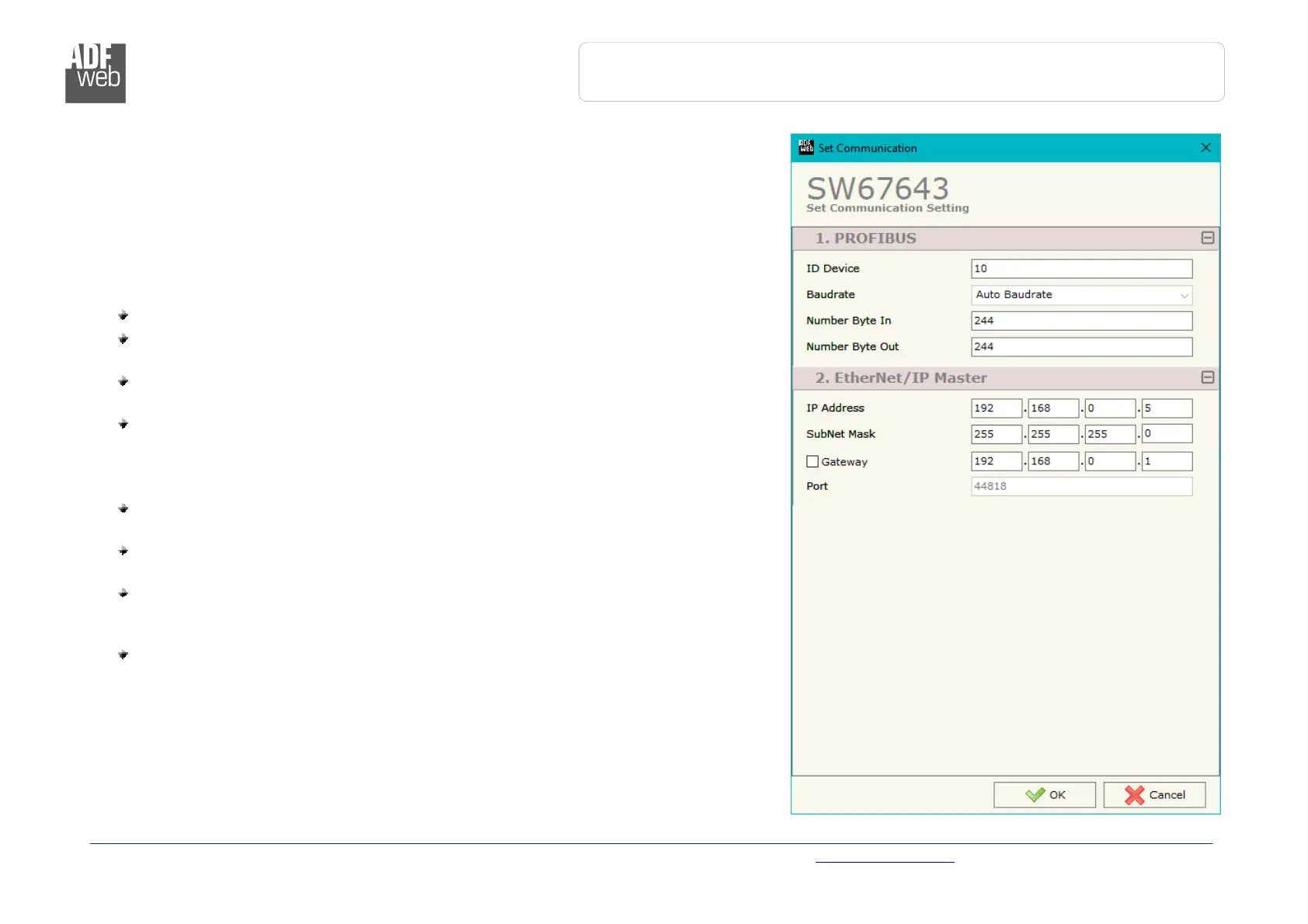

Figure 3: “Set Communication” window
