ADI AR-146 - C.SQ FUNCTION USAGE; C.SQ Code Entry via VFO; C.SQ Code Entry via DTMF Keypad; Using the C.SQ Function

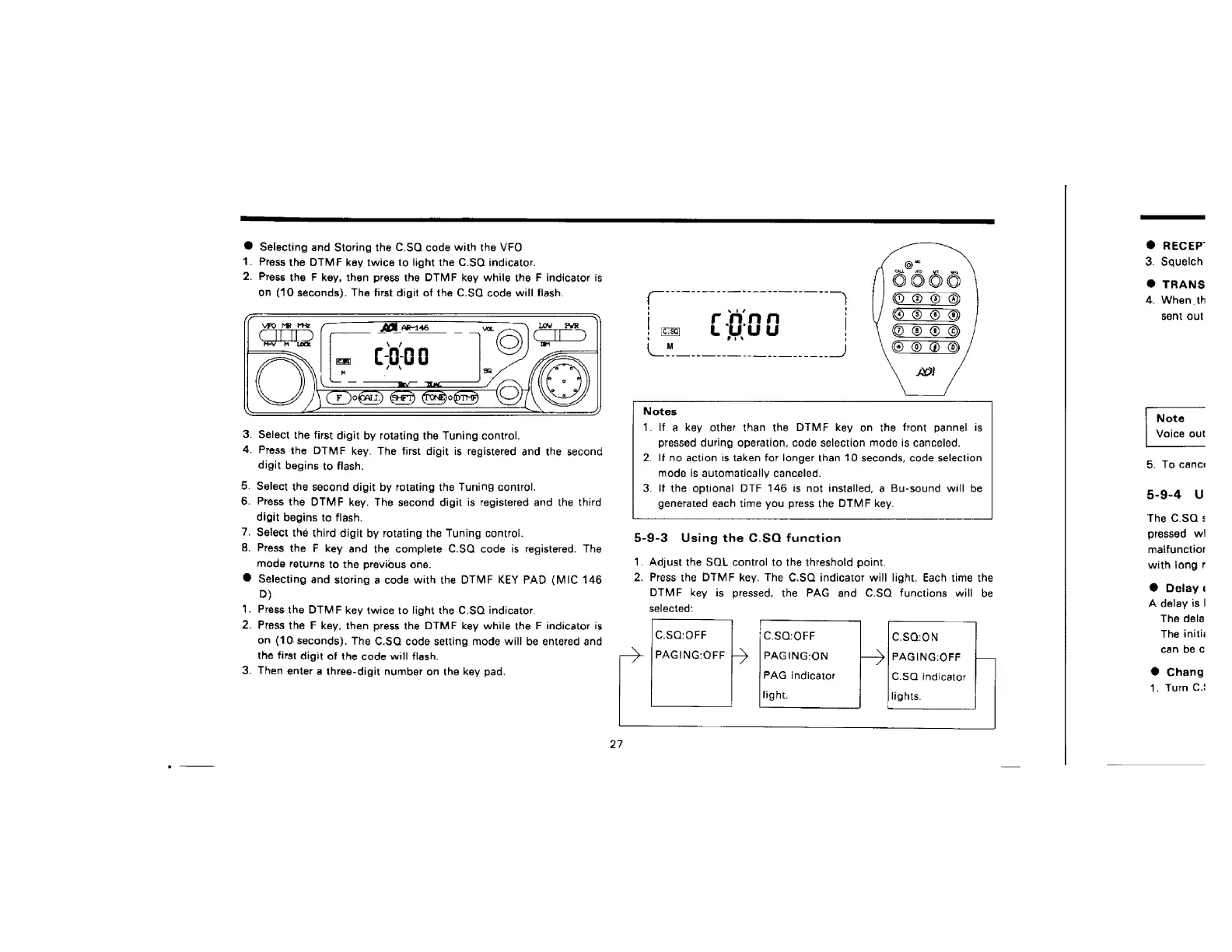

@ Selecting and Storing the C.SQ code with the VFO
1.
2.
Press the DTMF key twice to light the C.SQ indicator.
Press the F key, then press the DTMF key while the F indicator is
on (10 seconds). The first digit of the C.SQ code will flash.
. Select the first digit by rotating the Tuning control.
. Press the DTMF key. The first digit is registered and the second
digit begins to flash.
. Select the second digit by rotating the Tuning control.
. Press the DTMF key. The second digit is registered and the third
digit begins to flash.
. Select the third digit by rotating the Tuning control.
. Press the F key and the complete C.SQ code is registered. The
mode returns to the previous one.
Selecting and storing a code with the DTMF KEY PAD (MIC 146
D)
. Press the DTMF key twice to light the C.SQ indicator.
. Press the F key, then press the DTMF key while the F indicator is
on (10 seconds). The C.SQ code setting mode will be entered and
the first digit of the code will flash.
. Then enter a three-digit number on the key pad.
ce]
§
=
a
OF O:
©
Or
7
| rnnn |
, eg CUUY
OM -
Notes
_ If a key other than the DIMF key on the front pannel is
pressed during operation, code selection mode is canceled.
. lf. no action is taken for longer than 10 seconds, code selection
mode is automatically canceled.
. If the optional DTF 146 is not installed, a Bu-sound will be
generated each time you press the DTMF key.
5-9-3 Using the C.SO function
1. Adjust the SQL control to the threshold point.
2. Press the DIMF key. The €.SQ indicator will light. Each time the
DTMF key is pressed, the PAG and C.SQ functions will be
selected:
C.SQ:0FF
PAGING: OFF
C.S0:0FF
PAGING:ON
PAG indicator
light.
C.S0:0N
PAGING: OFF
C.SQ indicator
lights.
27
@ RECEP
3. Squelch
@ TRANS
4. When. th
sent out
Note
Voice out
5. To canci
5-9-4 U
The C.SQ s
pressed w!
malfunctior
with long
@ Delay «
A delay is |
The dela
The initia
can be c
@® Chang
1. Turn C:!
