32

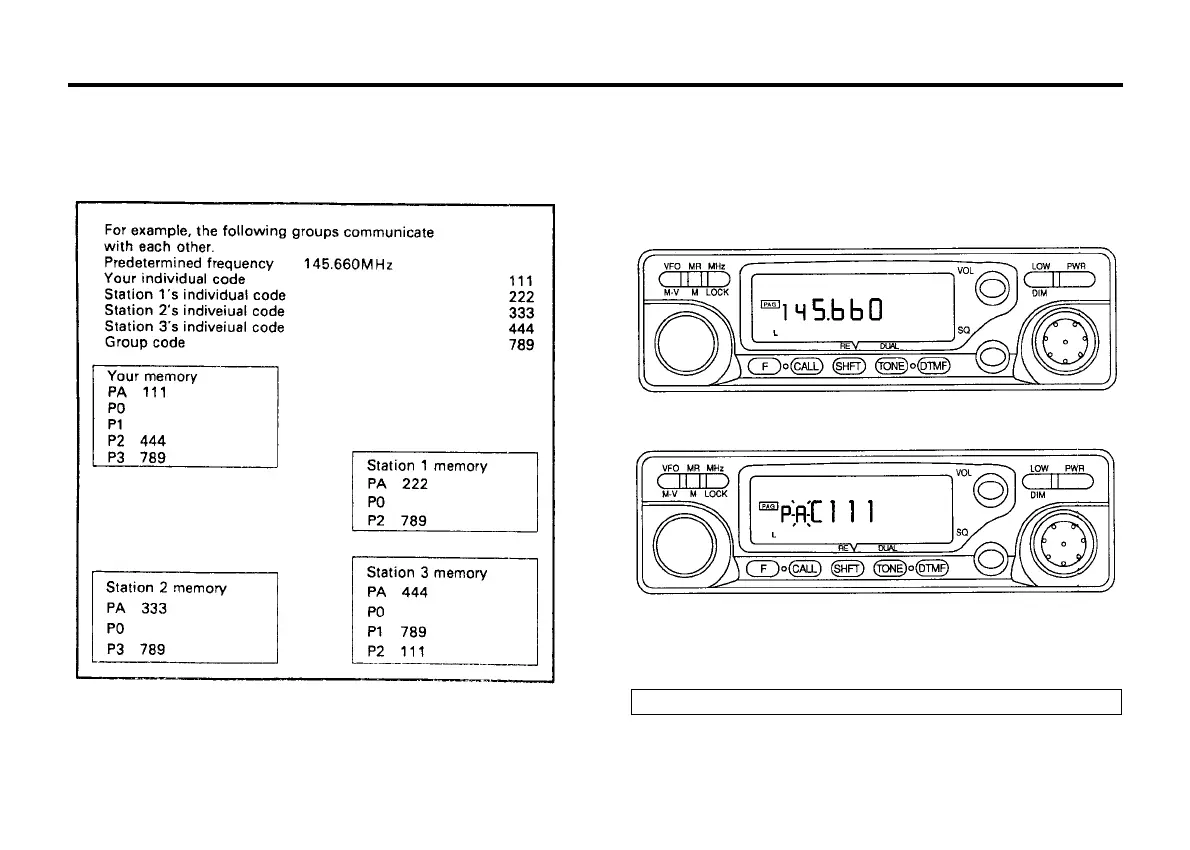

5-10-3 Paging Transmission (Calling)
Your individual ID code is preset in memory A.(Your individual ID code is
always stored in memory A.)
1. Turn to the predetermined frequency.
2. Press the DTMF key to light the PAG indicator.
3. Press the F key, then press the DTMF key while the F indicator is on.
4. Select the memory number in which the local station code is stored
using the tuning control.
Turn the paging function of the other transceiver on.
Calling all station in the group
