OPERATING AND USER MANUAL Q-12 CoaXPress series
________________________________________________________________________________________________________________
_________________________________________________________________________________________
Adimec 11
4 INTERFACES
In this chapter the electrical interfaces as well as the optical interface are described.
4.1 Connector overview

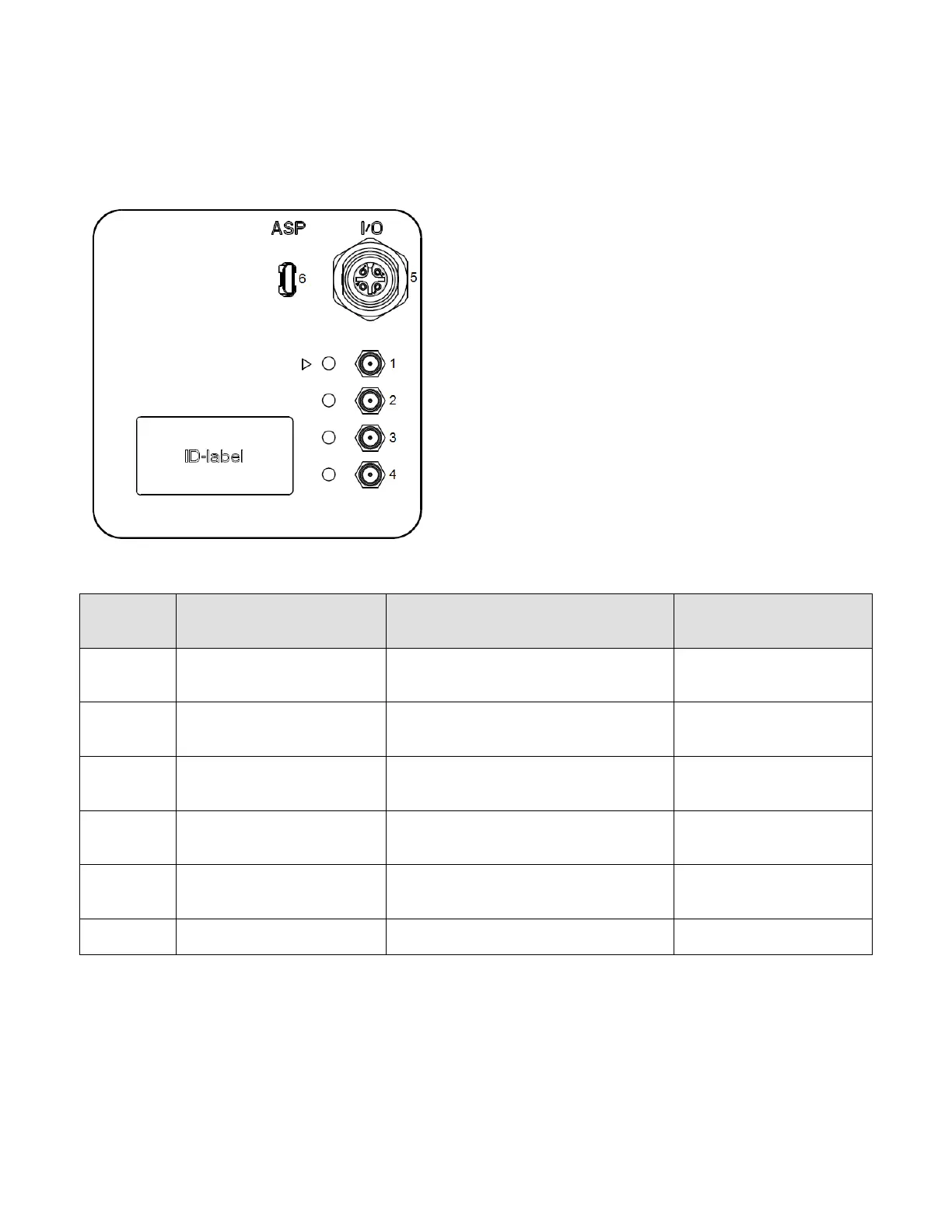

Figure 4-1: Camera back overview.
Table 4-1: Camera connections.
Connector
number
Connector type
Description
Mating connector
1
DIN 1.0/2.3
CXP connection 0 (Master connection)
Video, power, control, triggering
DIN 1.0/2.3
1
2
DIN 1.0/2.3
CXP connection 1 (Extension, Dual)
2
Video
DIN 1.0/2.3
1
3
DIN 1.0/2.3
CXP connection 2 (Extension, Quad)
3
Video
DIN 1.0/2.3
1
4
DIN 1.0/2.3
CXP connection 3 (Extension, Quad)
3
Video
DIN 1.0/2.3
1
5
Binder M12 type
09-3432-216-04
I/O connector
Binder M12 type
79-3529-13-04
6
Micro USB, type B (Socket)
Adimec Service Port
Micro USB, type B (Plug)
Note:
1
Single DIN cables and multi DIN cables supported.
2
Dual: CXP connection 0, 1 are used.
3
Quad: CXP connection 0, 1, 2, 3 are used.
