ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands
11

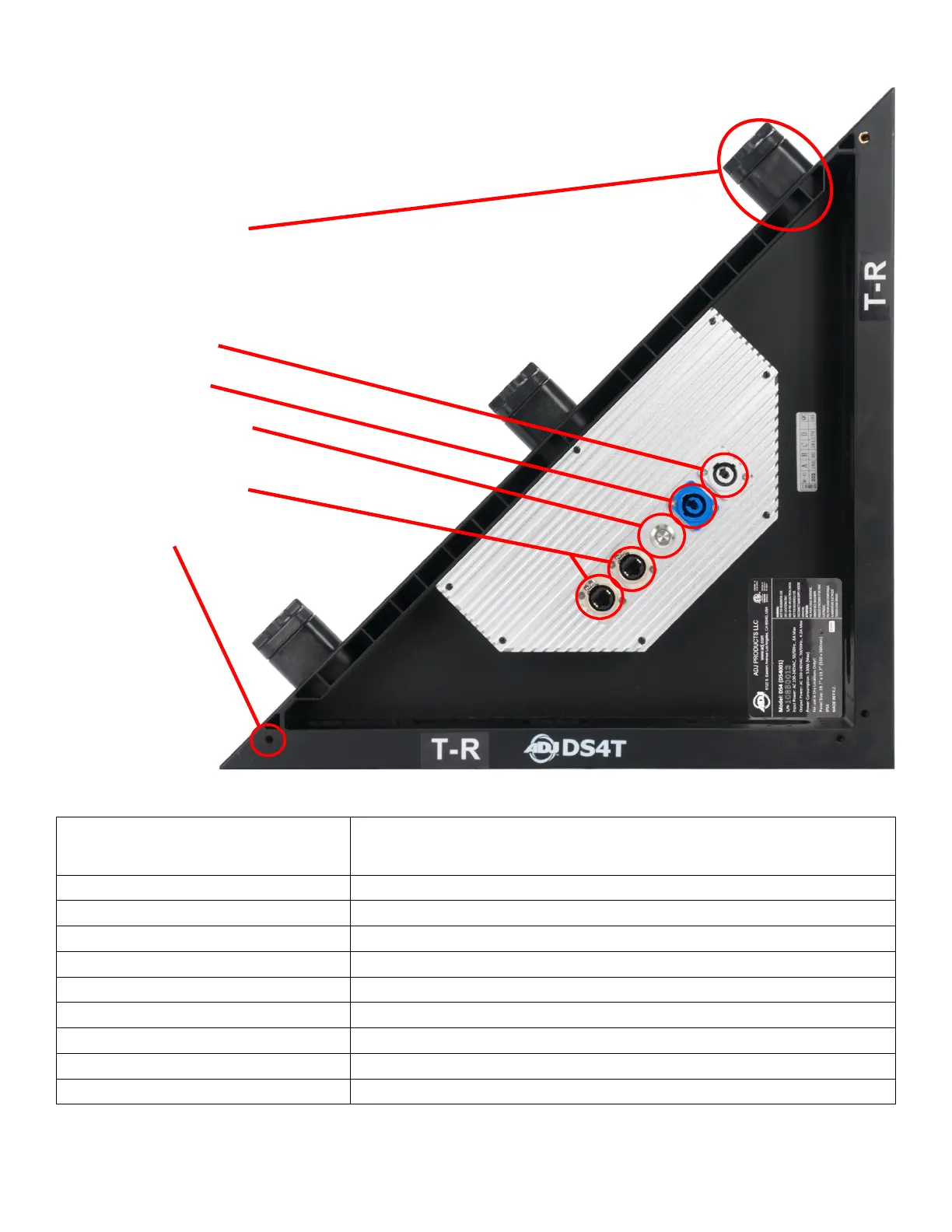

PANEL OVERVIEW (DS4T1 Back View)
FUNCTION TEST SWITCH CHART
BUTTON PRESS
Pressing button specific number times
below will select the corresponding test
COLOR/PATTERN/FUNCTION TESTED
1
Red
2
Green
3
Blue
4
White
5
Horizontal Pattern
6
Vertical Pattern
7
Slash Pattern
8
256 Gray Gradient
9
Aging (Lifespan)
Connector Sockets
and DS4VC Vertical
Connector
(removeable)
Power Output (-)
Power Input (+)
Function Test Switch
Locking RJ45
Ethernet Connector
ESD Grounding Hole
& Connection Plate
