Adp W Series - Dimensions

Dimensions
Unit Size A B C D E F G Duct Opening
18, 24, 30
15.0" 38 1/2" 11.0" 7.0" 5 1/2" 2 1/4" 3 1/4" 10.0" D X 14.0" W
31, 36, 42
18 3/4" 44 1/2" 14 1/2" 7 3/8" 6.0" 2 1/2" 5 1/2" 12.0" D X 14.0" W

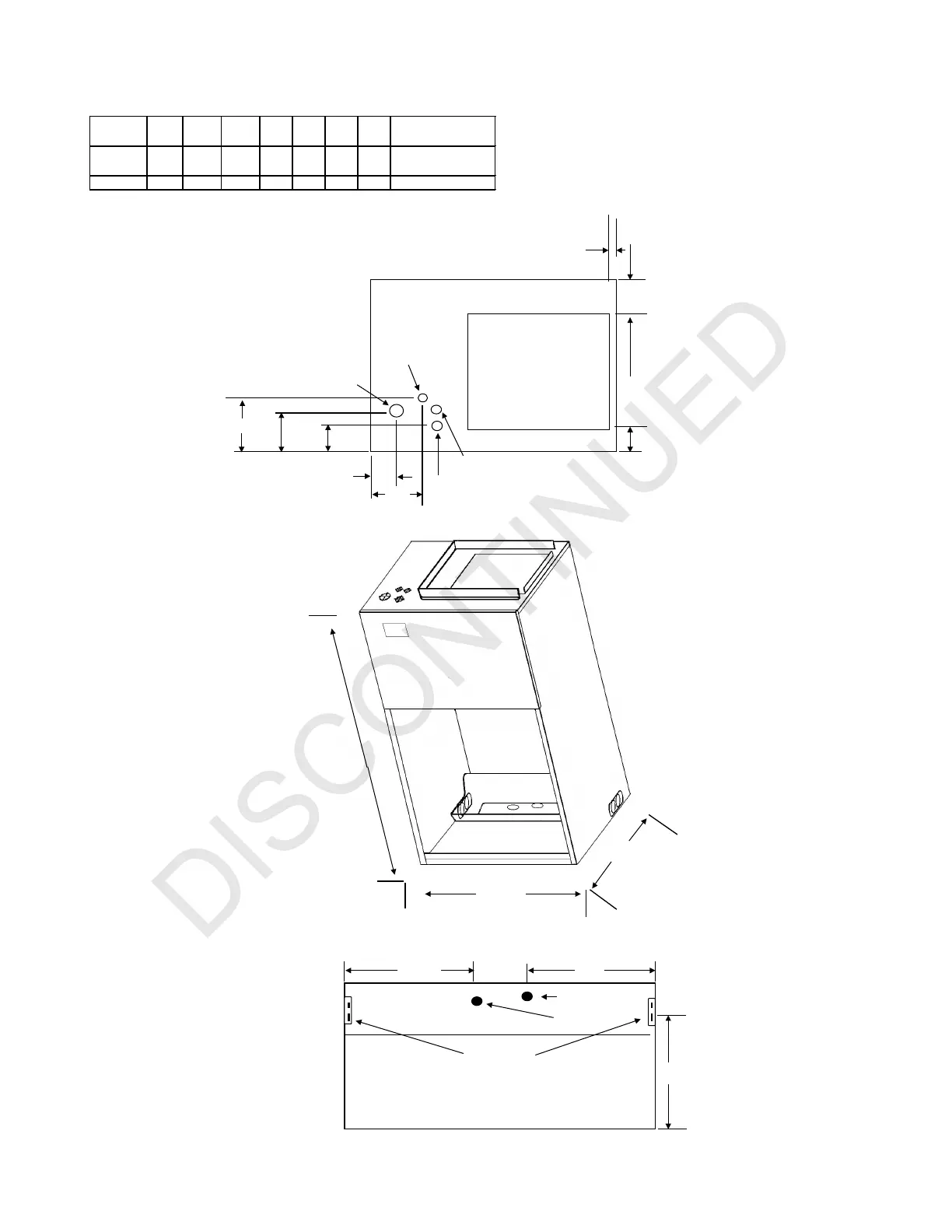

Internal View Of Bottom Of Air Handler
Drain Pan
Side Drain Conn.
Line Voltage
F
A
22.12"
B
Primary
Secondary
Top View
C
D
1 3/8"
3.0"
G
Duct Opening
3/4"
Front
8 1/2 "
8 1/2"
E
2"
Suction
Liquid
Low Voltage
10
