3.4 Optic

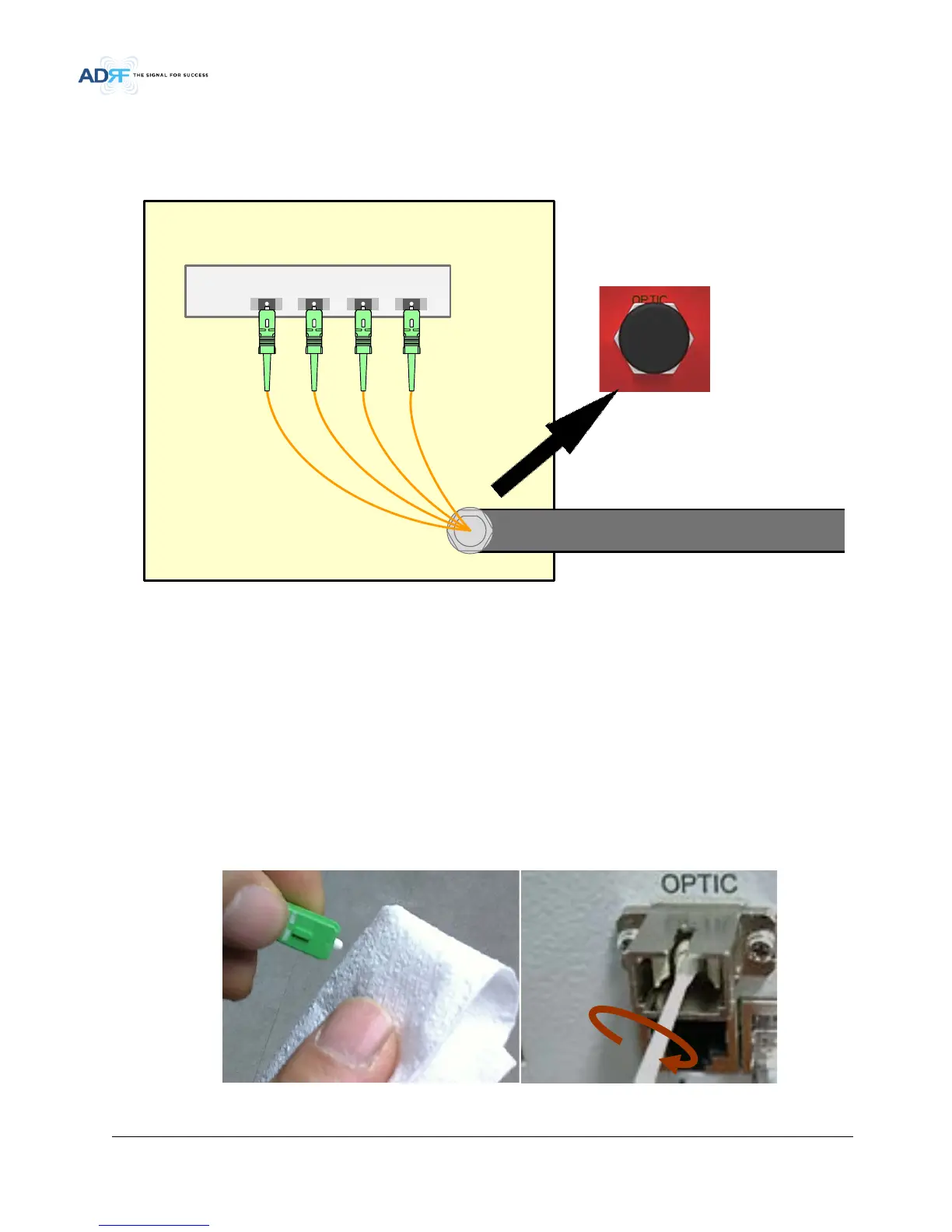

Figure 3-4 Optic port
ODU located inside of equipment has 4 optic ports (SC/APC type) for link to ADXV-R-3378P-N4Xs.
You must verify to keep optic contact be clean and optic line’s curvature be not allowed in order to be free from
optic loss when you install optic line and conduit.
• We recommend cleaning optic connector using a dry optical cleaning swab or tissue in a dry environment
as needed. We recommend cleaning the optic connectors only if the expected optic loss is higher than
the loss reported in the Web-GUI by 1.5dBo. (Figure 3-5)
• When optic connector are not in use, the port should be covered with a protective dust cap. (Figure 3-6)
•
•
Figure 3-5 Optic Connector Cleaning (left) and Optic Port Cleaning (right)
Conduit for optic
ODU
LINK1LINK2LINK3LINK4
OPTIC
Inside of Fire-78-4
(Conduit connector)
SC/APC
Adpator
