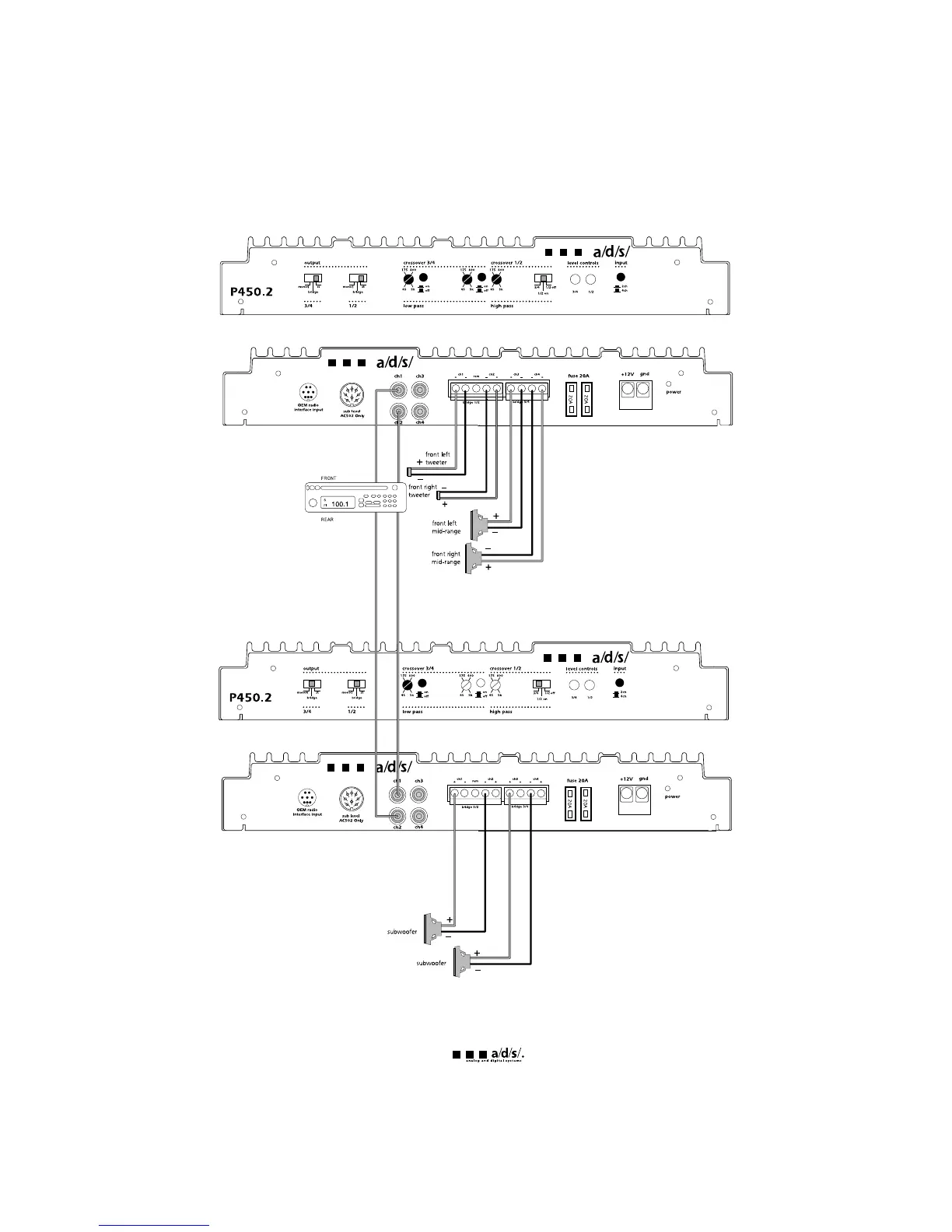

ADS P650.2 - P450.2 System 3: Dual Amplifier Setup

System 3 - Two P450.2’s, one is used to drive front tweeters and midrange drivers, the second is used in
2-channel bridged mode for subwoofers. Subwoofer level can be controlled by using the source’s front
output for the first P450.2 and the rear output for the second P450.2.
