The RF status is only available if the optional
hardware demodulator is installed.

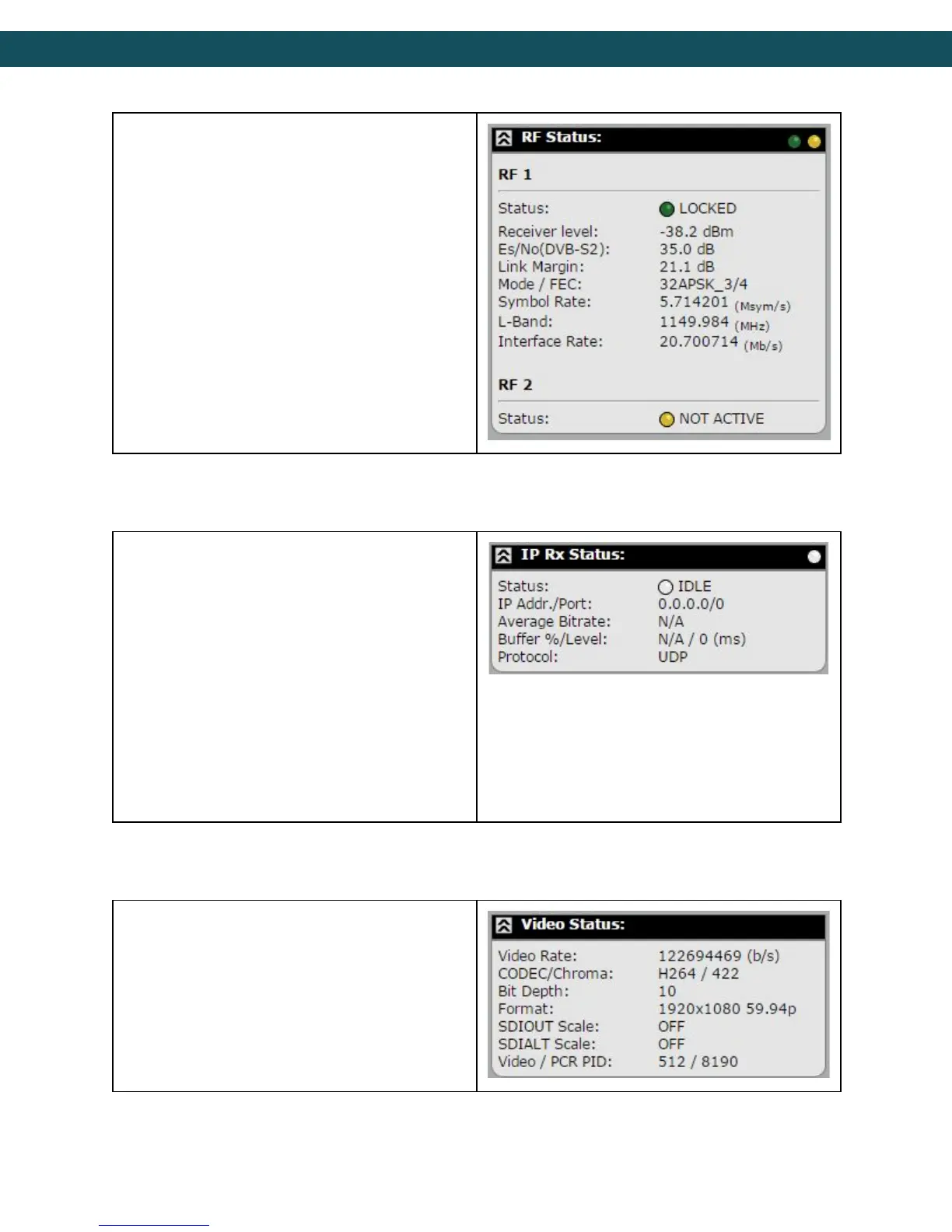

RF Status provides an indication of tuner lock
along with the receive level (dBm), Eb/No or
Es/No (dB), Link Margin (dB), Modulation and
Coding, Symbol Rate, L-Band Frequency and
Interface Rate.
The LED will be green
if the tuner is locked,
yellow
if the tuner is disabled or red
if the
tuner is enabled and not locked. The status
will read “FEA_LOCKED” and a transport
stream will not come through if appropriate
feature keys have not been enabled.
IP-Rx Status
The IP-Rx status displays information about
the IP-Rx configuration. Further detailed
status can be found on the Input -> IP Rx
Params page.
The LED will be grey if the input is disabled,
red if an input is not detected or green if a
stream is detected. The current IP-Rx
configuration is also displayed for average
bit-rate detected, current buffer level and the
protocol used for reception. The IRD
automatically detects protocol and FEC
parameters if enabled.
Video Status
This window shows statistics about the
decoded incoming (video elementary stream)
and outgoing SDI video. Video Status does
not contain a colored LED for status.
Input transport stream information includes
video rate (b/s), codec and chroma detection,
bit-depth, resolution/frame rate, down-scaling
