AdvancedFrame™ Convertible Inatable Kayak Owner’s Manual
7
OPTIONAL DECKS:
Aach the optional Single Deck or Double Deck kit (sold separately) to create a closed deck kayak
with the option for using a spray skirt. Three seating positions allow for maximum versatility.
Single Double
3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION
The AdvancedFrame™ Kayak has a rigid frame in the bow and stern that enhances its performance.
3.1 Assembly

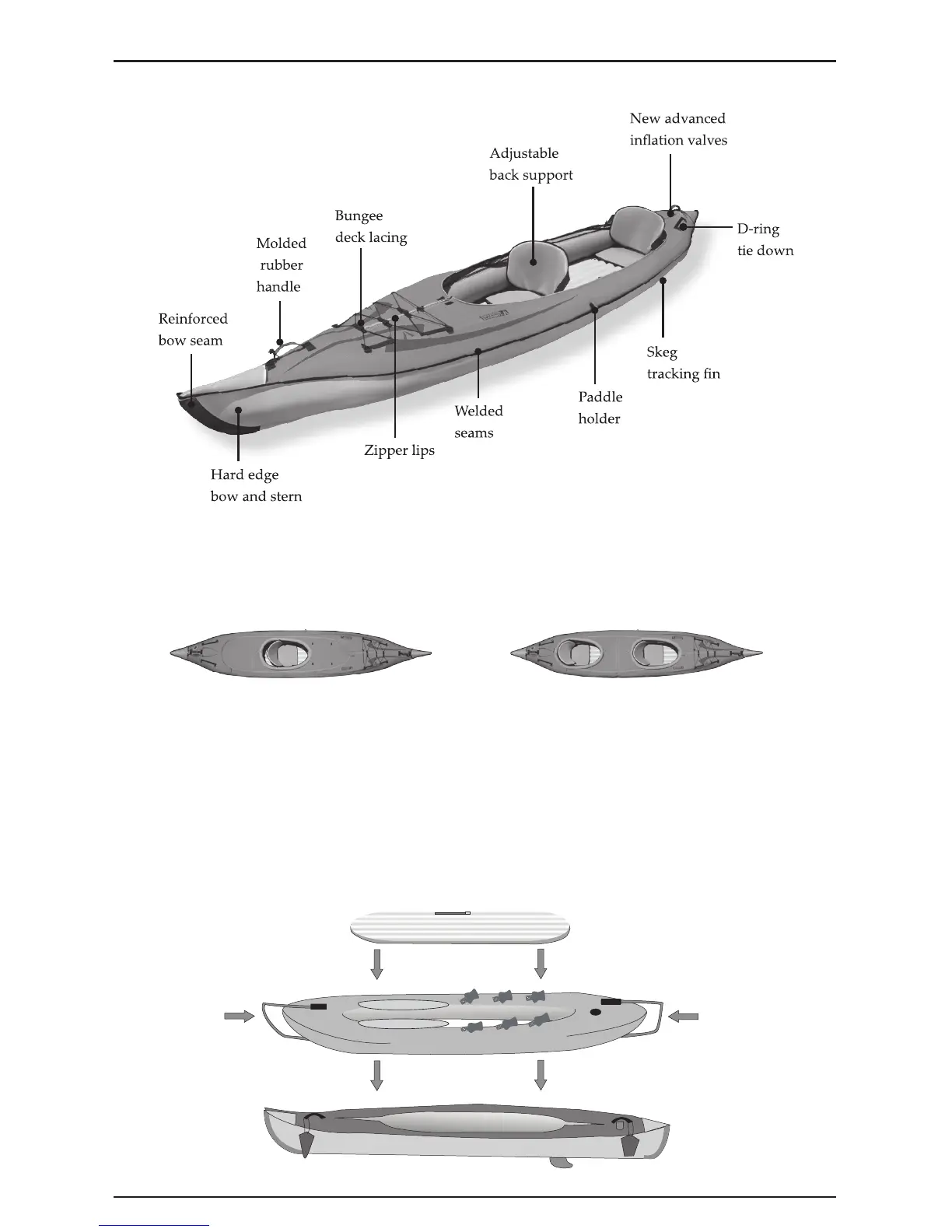

The illustration below shows the general assembly of the kayak. Your kayak comes from the
factory pre-assembled. The only assembly you should need to do is aach the adjustable seats.
INFLATABLE FLOOR
ADVANCEDFRAME
OUTER COVER
BOW RIB
STERN RIB
Step 1
Step 2
Step 3
Step 1
