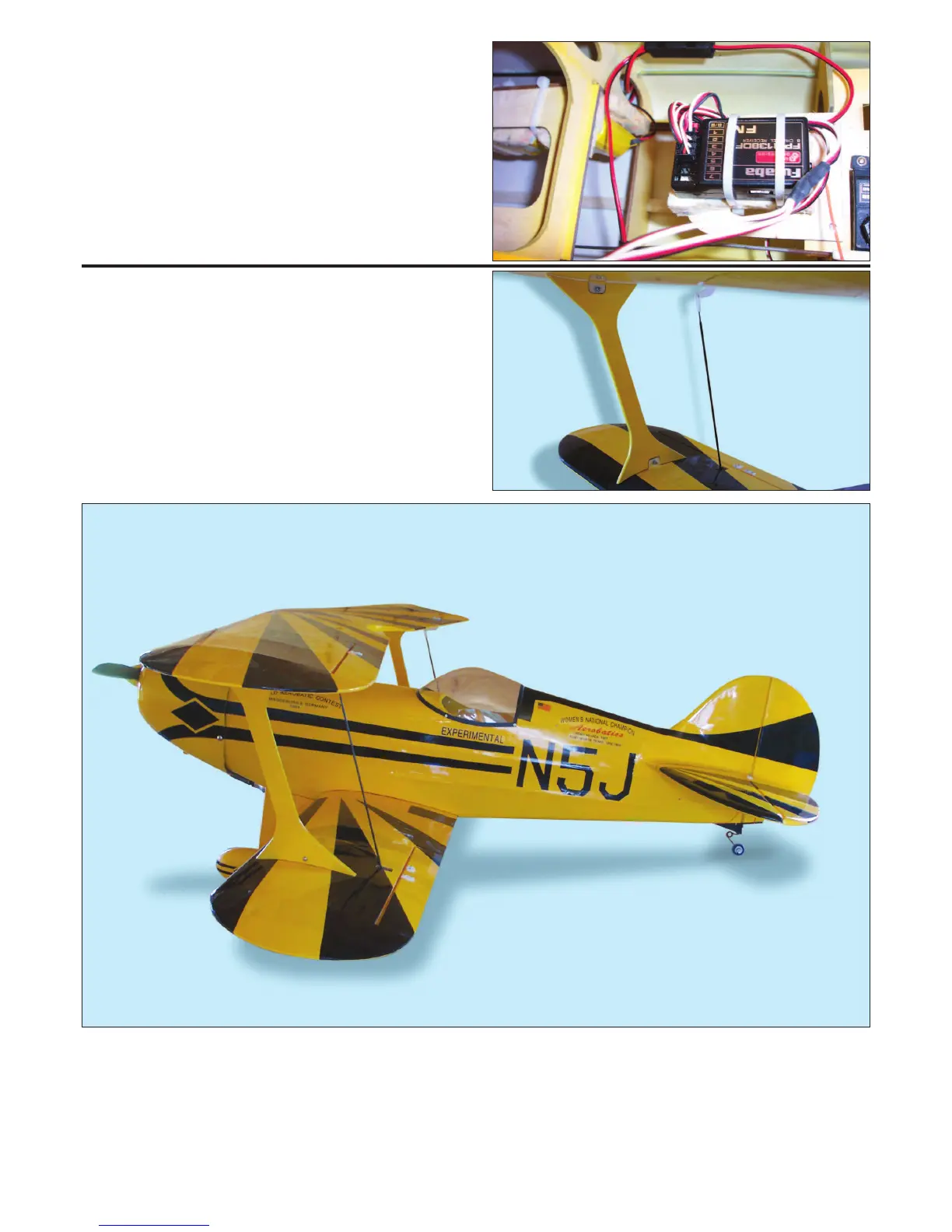

STEP 29.
Mount the switch through the fuselage side and the
receiver on dense foam tie-wrapped to the mount
shown, which is screwed into place on the servo tray
after the fuel tank has been fitted. If fitting a high
c
apacity receiver battery (recommended), you will be
a
ble to mount this in the bay behind the fuel tank.
STEP 30.
Rigging the model is best accomplished by fitting the
lower wing first, followed by the interplane struts and
then the top wing. Adjust the interconnecting pushrods
between the ailerons ensuring all four ailerons are level
at their neutral position.
