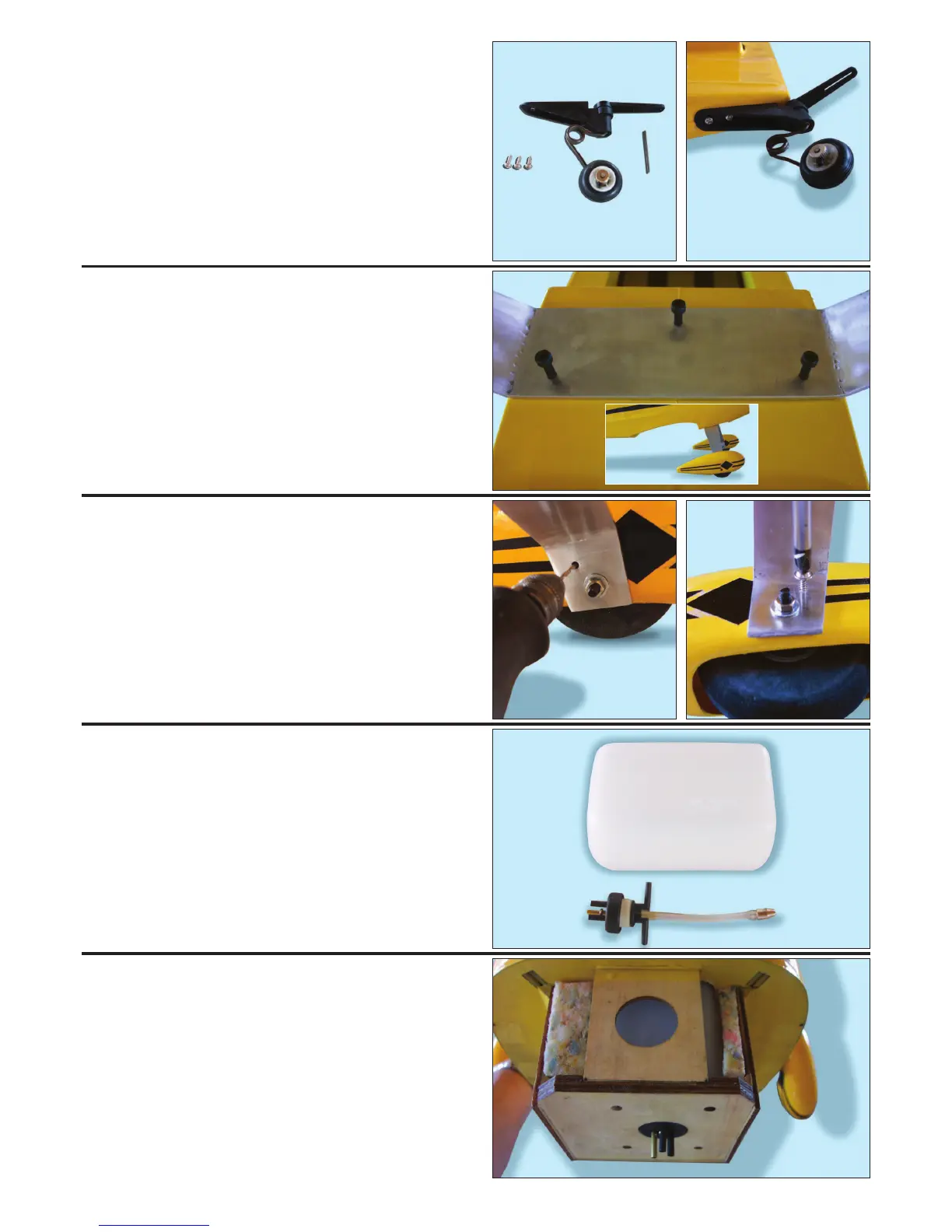

STEP 10.
Locate the tailwheel and the three self tapping
mounting screws. Pilot drill the holes, then attach to the
rear of the fuselage ensuring that the pivot point is in
line with the rudder hinge line.
STEP 11.
Mount the main undercarriage using the three cap head
screws supplied. Ensure that the spats are aligned
as shown.
STEP 12.
Now pilot drill through the under
carriage into each spat
as shown and use a self tapping screw to secure the
spat in position.
INSTALLING THE ENGINE
STEP 13.
Prepare the fuel tank bung as shown, ensuring that the
clunk is free to move around the tank once assembled.
Do not over-tighten the assembly screw.
STEP 14.
Slide the fuel tank into its bay fr
om the r
ear and pack
with dense foam to retain. Bolt the engine mount in
position using the cap head bolts and washers supplied
into the captive nuts already fitted in the bulkhead.
